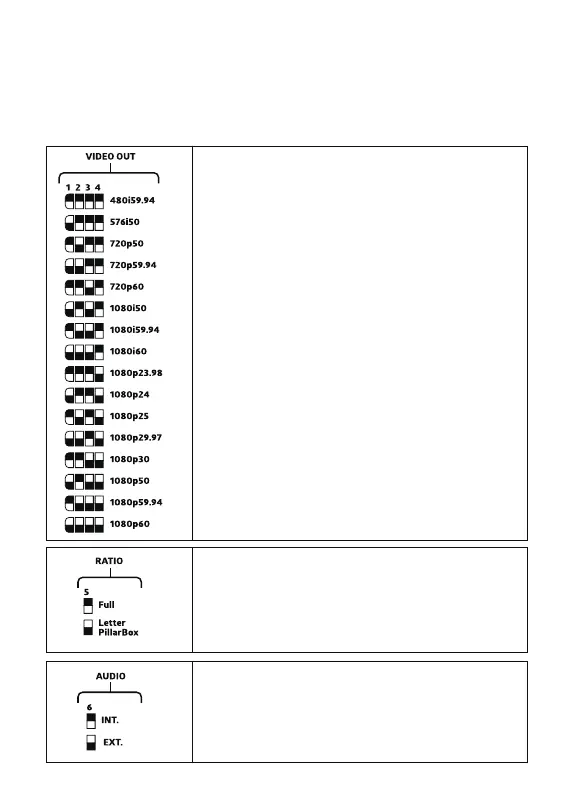

VIDEO OUT : Output Video Resolution Settings (Position

1, 2, 3, 4)

- 720x480i@59.94 (DIP SW : 1111)

- 720x576i@50 (DIP SW : 0111)

- 1280x720p@50 (DIP SW : 1011)

- 1280x720p@59.94 (DIP SW : 0011)

- 1280x720p@60 (DIP SW : 1101)

- 1920x1080i@50 (DIP SW : 0101)

- 1920x1080i@59.94 (DIP SW : 1001)

- 1920x1080i@60 (DIP SW : 0001)

- 1920x1080p@23.98 (DIP SW : 1110)

- 1920x1080p@24 (DIP SW : 0110)

- 1920x1080p@25 (DIP SW : 1010)

- 1920x1080p@29.97 (DIP SW : 0010)

- 1920x1080p@30 (DIP SW : 1100)

- 1920x1080p@50 (DIP SW : 0100)

- 1920x1080p@59.94 (DIP SW : 1000)

- 1920x1080p@60 (DIP SW : 0000)

RATIO : Output Video Screen Ratio (Position 5)

- FULL 16:9 (DIP SW : 1)

- Latter 4:3 or Pillar Box (DIP SW : 0)

AUDIO : Input Audio Settings (Position 6)

- INT. (DIP SW : 1)

- EXT. (DIP SW : 0)

02. Product Interface

DIP Switch setting

Questions and Answers:

Need help?

Do you have a question about the Lumantek ez-HSV+ and is the answer not in the manual?

Lumantek ez-HSV+ Specifications

Video Input

Video Output

sdi video output	SD/HD/3G-SDI (BNC 75Ω) x1
video formats	720x480i@59.94, 720x576i@50, 1280x720p@50, 1280x720p@59.94, 1280x720p@60, 1920x1080i@50, 1920x1080i@59.94, 1920x1080i@60, 1920x1080p@23.98, 1920x1080p@24, 1920x1080p@25, 1920x1080p@29.97, 1920x1080p@30, 1920x1080p@50, 1920x1080p@59.94, 1920x1080p@60

Connections

power connection	DC Power Input (DC Jack) x1
dip switch	(6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio(INT. or EXT.)
mode switch	(Push Switch) x1 LCD ON/OFF, Menu Selection
