INFRATHERM pyrometers IS 5 · IS 5-LO · IGA 5 · IGA 5-LO
35
Dimensions: see 2.1
Housing: Stainless steel
Operating position: Any
CE label: According to EU directives about electromagnetic immunity
Laser targeting light
(optional):
Laser targeting light (650 nm), Laser power level < 1 mW,
laser class 2 per IEC 60825-1-3-4
Additional technical data for pyrometers with built-in video module (IS 5-TV; IGA 5-TV)
Video-signal: composite video-signal approx. 1 V
pp
at 75 Ω, CCIR, 50 Hz
NTSC-standard, EiA, 60 Hz
(optional to order)
Array size: 628 x 583 pixels, b & w 510 x 492 pixels, b & w
Exposure: automatic, additionally 3-levels controlled by the measuring temperature
Field of view: approx. 10% x 14% of focused distance
Date/time: real-time clock with at least 3 days spare run
Video output plug: separate round plug at the pyrometer, not galvanically separated to the
pyrometer’s power supply
Picture insertions: target marking; unit number or user text (max. 12 characters),
time and/or date; (individually switchable), measuring temperature,
emissivity

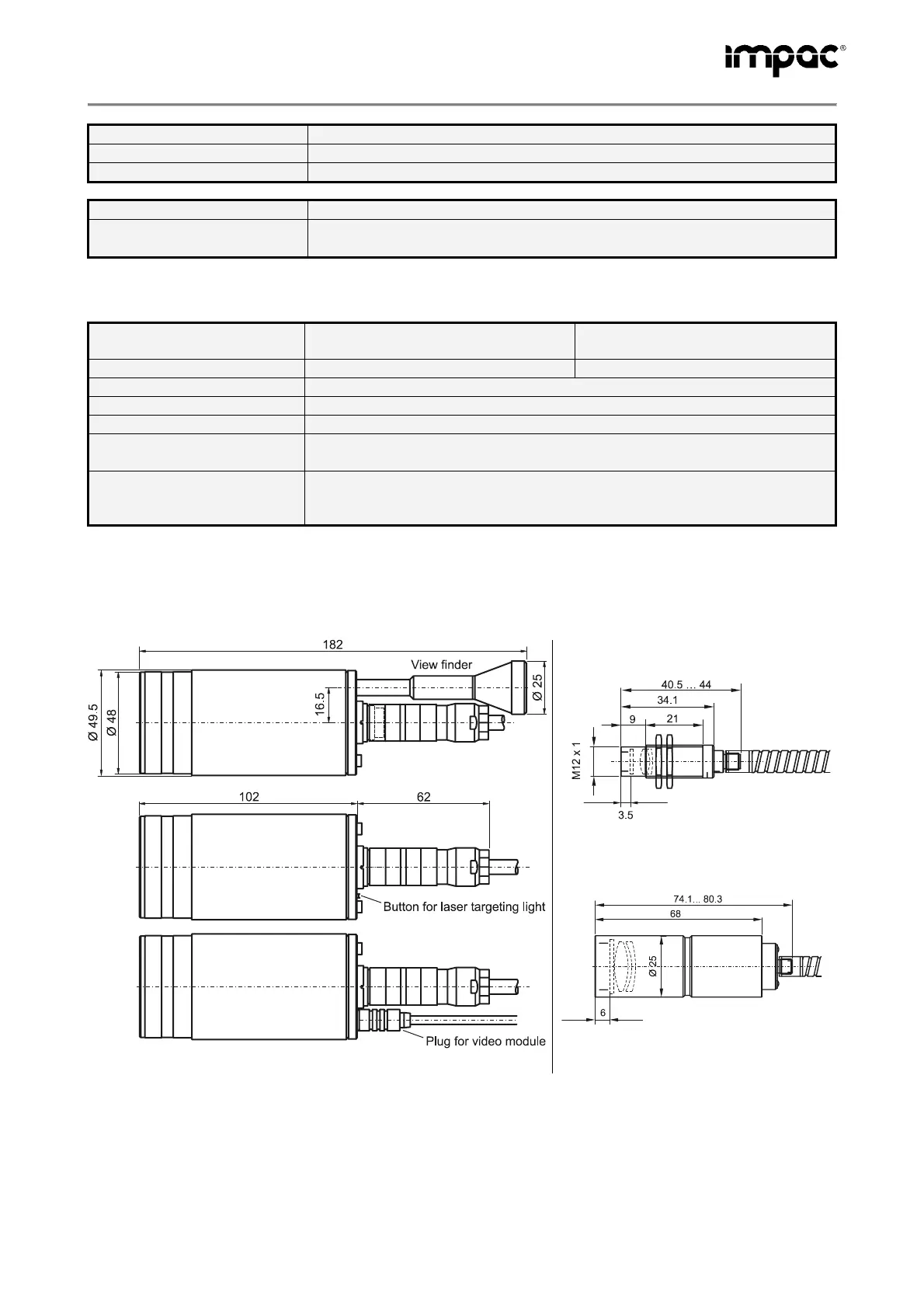

2.1 Dimensions
Instruments: Optical heads for fibre optic instruments:
Type Ι:
Type
ΙΙ:
2.2 Appropriate use
IS 5, IGA 5; IS 5-LO and IGA 5-LO are digital pyrometers for non-contact temperature measurement of
metals, ceramics or graphite.
For precise aiming and alignment of the pyrometers, an optional laser targeting light, non-parallax view finder
or video-module is available
