LF1600-INS-LAB-RevE15 • LF1600 Stand Assist 9

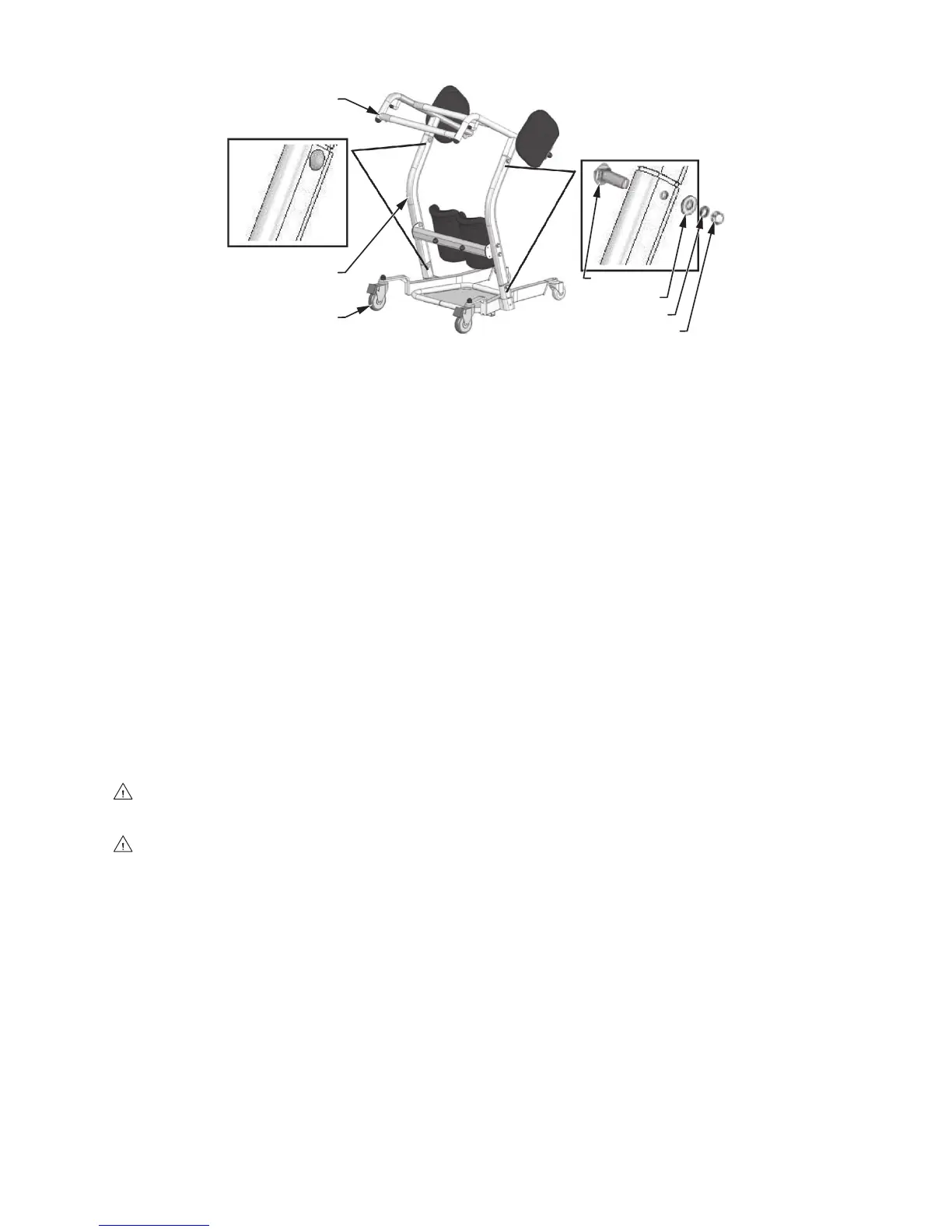

carriage bolt
base assembly
kneepad side
support assembly
seat and cross bar
assembly
flat washer
lock washer
acorn nut
a
a
b
c
c
b
7. Fasten the seat and cross bar assembly, kneepad side support assembly, and base
assembly together with carriage bolts:
a. Attach the kneepad side support assembly to the base assembly. Fit the square
shoulder of each carriage bolt in the square hole at inside of base bracket,
installing each carriage bolt through the base and kneepad side support
assembly as shown above. Install the at washer, lock washer, and acorn
nut on the end of each carriage bolt as shown above. Tighten the two nuts
securely using the provided wrench.
b. Attach the seat and cross bar assembly to the kneepad side support assembly.
Fit the square shoulder of each carriage bolt in the square hole at inside of
kneepad side support assembly, installing each carriage bolt through the
kneepad side support assembly and seat and cross bar assembly as shown
above. Install the at washer, lock washer, and acorn nut on the end of
each carriage bolt as shown above. Tighten the two nuts securely using the
provided wrench.
c. Securely tighten the four nuts that attach the kneepad assembly to the two
side support arms, installed in step 3, using the provided wrench.
WARNING: Before operating the Stand Assist, ensure that all components
are properly and securely assembled and that all fasteners are secure.
WARNING: Before operating the Stand Assist, read the operation
instructions.
