Lust CDA32.003 - SMARTCARD Data Transfer

CDA3000 Operation Manual
4-3
4 Commissioning
1
2
3
4
5
A
DE
EN
FR
IT
ES
FR

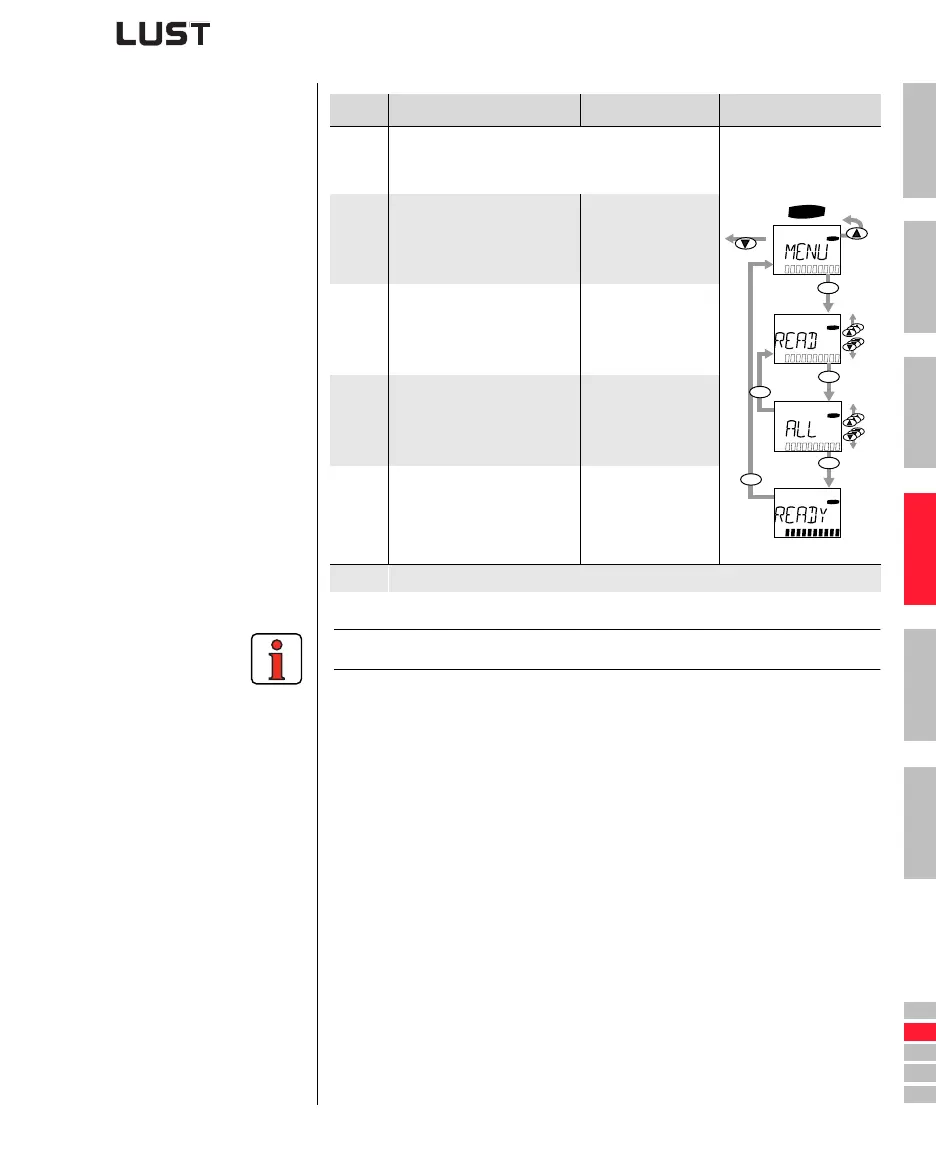

Load data set from S MART C ARD
into next inverter
Note: Data set is automatically stored in inverter module.
Step Action Comment Display
1
Connect the KEYPAD to the inverter module of the
next drive, insert the S
MARTCARD with the desired
data set and switch on the power.
2
Choose the CARD menu.
= Load/save with
the S
MARTCARD
3
Choose READ. = Load data set
4
Choose ALL and
start the load operation with
the
Start/Enter key.
= Complete data set
is loaded
5
READY appears.
= Load operation
completed without
error
Repeat the load operation on each additional drive.
CARD
CARD
CARD
CARD
CARD
start
enter
start
enter
start
enter
stop
return
stop
return
