Advanced Programming Mode
Changing the Dimming Features in Advanced
Programming Mode
1. While in main sensor menu, press the raise/lower rocker until
LED 7 is blinking (refer to top picture at right).
2. Press the Tap button one time; you have now entered the
Advanced Programming Mode menu.

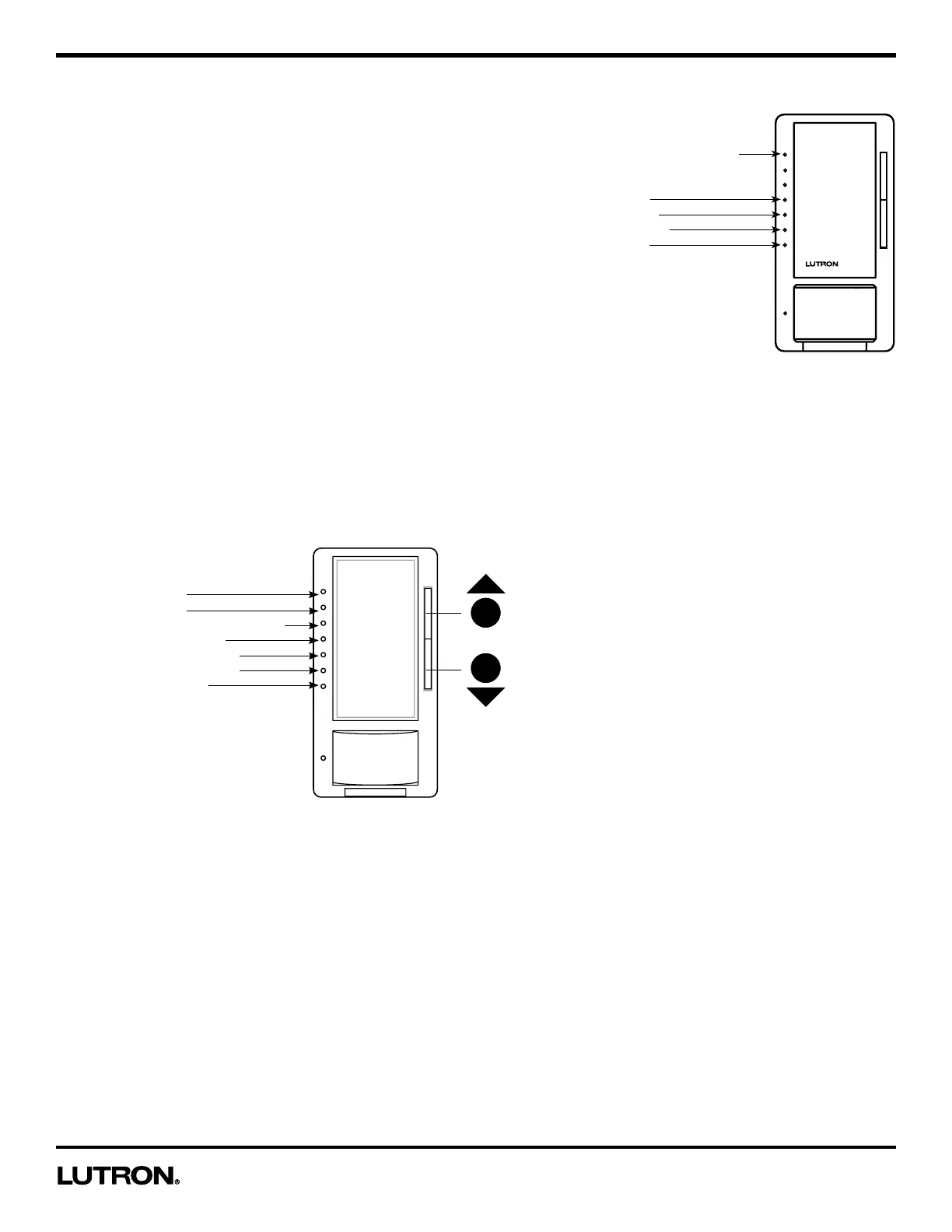

Main Sensor Menu
LED 7: Advanced Programming
Mode
LED 4: Auto-On
LED 3: Sensitivity
LED 2: Off Warning
LED 1: Timeout
How to Enter an Advanced Programming Option
1. While in Advanced Programming Mode (APM) as shown below, Press the Raise / Lower button to select the desired
Programming Option. The slow blinking Indicator Light (IL) will indicate which Option you have selected.
2. To Enter the desired option, Press the Tap button. Proceed to the specific Programming Option page to view
programming instructions for desired Option.
IL7: High-End Trim
IL6: Low-End Trim
IL5:
Enable/Disable Indicator Lights
IL4: Delayed Fade to OFF
IL3: Manual Fade OFF Time
IL2: Manual Fade ON Time
IL1: Preset Light Level
Or
R
L
Note:
• If there is no button activity for 1 minute, the dimmer will automatically exit APM and return to Normal Operation.
