Application Note #480
9 Technical Support — 800.523.9466
Programming Option 1: Preset Light Level
What Does It Do:
If it is preferred that the dimmer turns ON to the same light level every time you turn it ON (by pressing the Tap button),
choose the Locked Preset. Double tapping the Tap button in Normal Operation Mode will always bring the light level to
maximum intensity. If it is preferred that the dimmer turns ON (single tap) to the light level previously used, choose the
Unlocked Preset setting.
SETTINGS
There are 2 settings in Option 1: Preset Light Level.
Locked Preset: When programmed for a Locked Preset, the dimmer will always turn ON to the predetermined
“locked” level anytime the dimmer is turned ON with a single tap of the Tap button. If you want
occupancy detection to turn your lights on to this locked preset, please set your "Occupied Level"
to "Preset" per the instructions on page 7.
Unlocked Preset: When programmed for an Unlocked Preset, the dimmer will turn ON to the light level that it
was adjusted to the previous time that the light was ON.
Note: Default Setting is Unlocked Preset.
DIRECTIONS
Selecting "Locked Preset"
1. While in Advanced Programming Mode (APM), Press the Raise / Lower button to select the first option, Programming
Option 1: Preset Light Level. Once Indicator Light (IL1) is blinking, Press the Tap button. The IL will then switch to
the current setting and begin blinking rapidly or turn OFF, indicating that the programming option has been entered.
2. When entering the Preset Light Level option for the first time upon installing, the default setting is "Unlocked."
Note: Unlocked Preset is indicated by NO Indicator Lights turned ON while in Programming Option 1: Preset
Light Level.

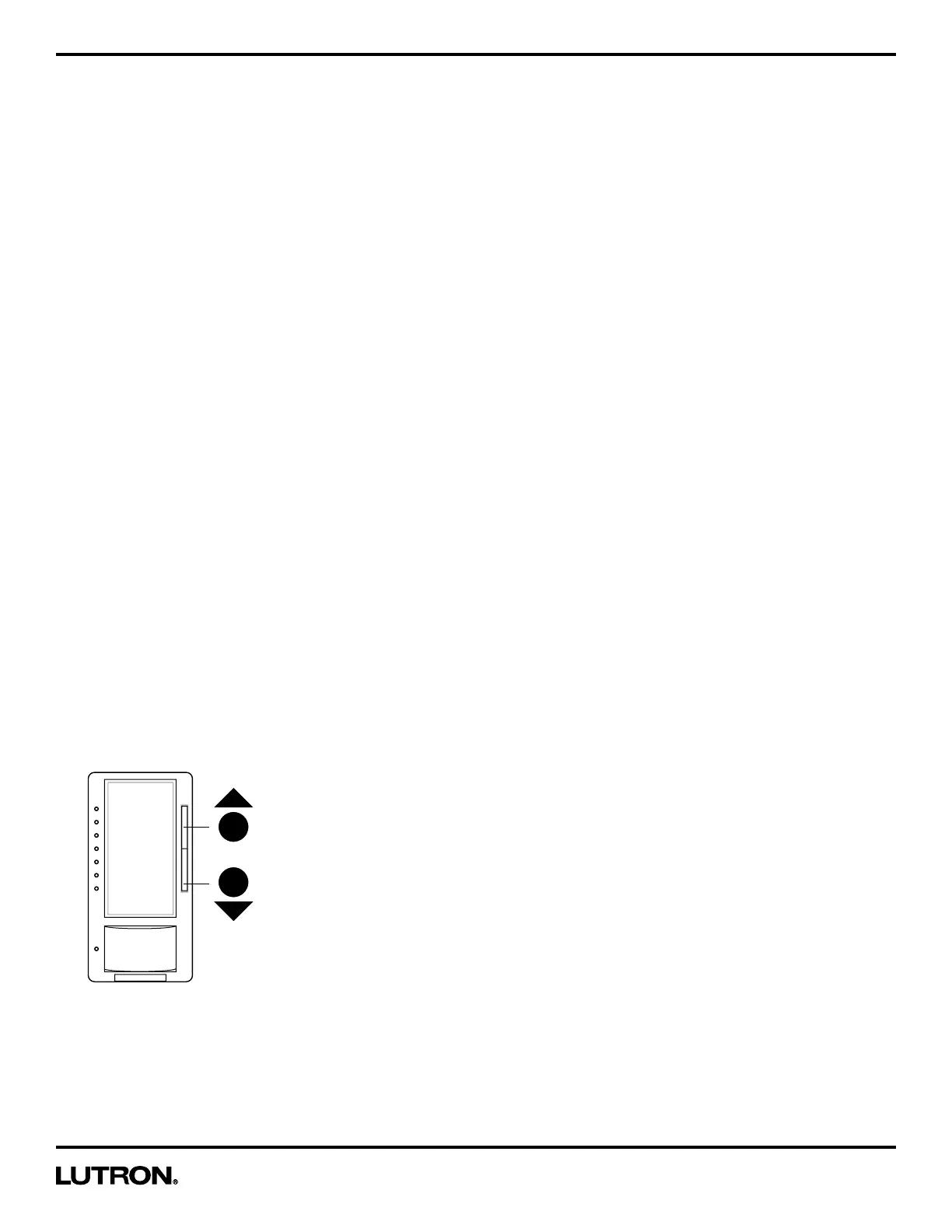

Press the Raise / Lower button to choose desired light intensity. The light will become brighter or dim, reflecting the
Locked Preset level as the feature is adjusted.
(Continued on next page...)
Or
R
L
Note:
• If there is no button activity for 1 minute, the dimmer will automatically exit APM and return to Normal Operation.
• To save and exit immediately out of APM to Normal Operation, Press and Hold the Tap button until Indicator
Lights stop blinking.
