Lutron Electronics GRAFIK Eye QSGRJ-4P User Manual

Wireless System Programming
R
GRAFIK Eye® QS Wireless System Programming 2
OK
1 2 3 4 5 6
OK
1 2 3 4 5 6
GRAFIK Eye QS A
“Talks” to GRAFIK Eye QS B; scene
activation and master (raise/lower)
button presses activated on unit A are
replicated on unit B.
GRAFIK Eye QS B
“Listens” to GRAFIK Eye QS A; unit B
replicates scene activations and master
(raise/lower) button presses on unit A.
When there is more than one GRAFIK Eye QS control unit in a
wireless system, it is often convenient to associate them so that
scene activations and master (raise/lower) button presses carry
over to other associated GRAFIK Eye QS control units.

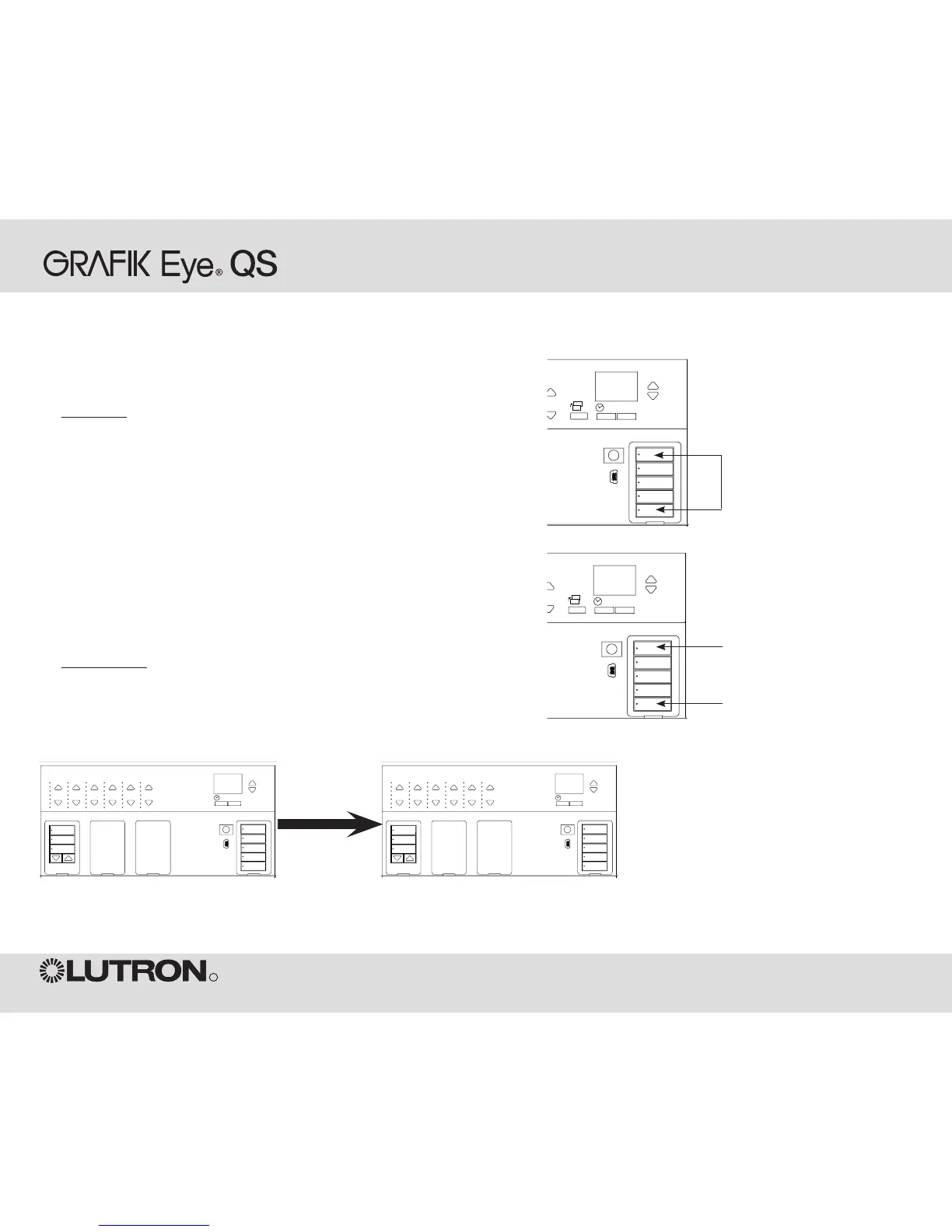

To associate two GRAFIK Eye QS control units:
1. Begin with the GRAFIK Eye QS control unit that will “talk” (button
presses will be replicated on the other control unit; in the drawing
below this is GRAFIK Eye QS A). Press and hold the top and
bottom scene buttons until the LEDs flash (about
3 seconds).
2. Continue with the GRAFIK Eye QS control unit that will “listen”
(replicate button presses on the other control unit; in the drawing
below this is GRAFIK Eye QS B). Press and hold the top scene
button until the LEDs flash (about 3 seconds).
3. Return to the GRAFIK Eye QS control unit that will “talk” (A). Press
and hold the top and bottom scene buttons until the LEDs stop
flashing (about 3 seconds).
4. It is often desired to repeat the process in reverse so that GRAFIK
Eye QS B talks to GRAFIK Eye QS A.
To disassociate two wireless GRAFIK Eye QS control units:
Simply repeat the association steps, in the same order; press and
hold the bottom scene button on B to disassociate.
Note: The wireless signal has a range of 30 feet (10 m) through
standard construction.
Associating GRAFIK Eye QS Wireless Control Units
OK
1 2
3
4
5
69 10
11 12
13
14
7
815 16
9-16
1-8
On the unit that will “talk”,
press and hold the top and
bottom scene buttons for
3 seconds to begin or end
association or disassociation
with the unit that will “listen”.
OK
1 2
3
4
5
69 10
11 12
13
14
7
815 16
9-16
1-8
On the unit that will “listen”,
press and hold the top scene
button for 3 seconds to
associate, or press and hold
the bottom scene button for 3
seconds to disassociate with
the unit that will “talk”.
Associate
OR
Disassociate
