Lutron Electronics GRAFIK Eye QSGRJ-4P User Manual

To use the Pico wireless controller as a zone controller with a GRAFIK Eye QS Wireless control unit:
1. On the Pico, press and hold the top (on) and bottom (off) buttons for 3 seconds. The LED on the Pico will
flash slowly, and the scene buttons LEDs on the GRAFIK Eye QS will all flash.
2. On the GRAFIK Eye QS, the info screen will ask for confirmation that you wish to change the type; press
the OK button. Use the master buttons on the GRAFIK Eye QS to select “Zone”. Press OK to save.
3. To assign a zone on the GRAFIK Eye QS to the Pico, use the zone raise/lower buttons for that zone to set
the desired preset level, then press and hold the zone raise and lower buttons simultaneously for 1 second
(until the LEDs flash at the programmed preset level).
To unassign a zone on the GRAFIK Eye QS to the Pico, while the zone LEDs are flashing, press and hold
the zone raise and lower buttons simultaneously for 1 second (until the LEDs stop flashing and the 3
middle LEDs light).
Repeat this step to assign levels for all desired zones to the Pico control. Zones assigned to the Pico will
have all LEDs flashing in unison, and zones not assigned will have the 3 middle LEDs lit.
4. On the Pico, press and hold the top (on) and bottom (off) buttons for 3 seconds. The LED on the Pico and
the LEDs on associated GRAFIK Eye QS Wireless control units will stop flashing.
Functionality of the Pico control when programmed as a zone controller:
Top button: All assigned zones go to 100%
Center round button: All assigned zones go to the programmed preset level
Bottom button: All assigned zones go to Off
Note: The wireless signal has a range of 30 feet (10 m) through standard construction.

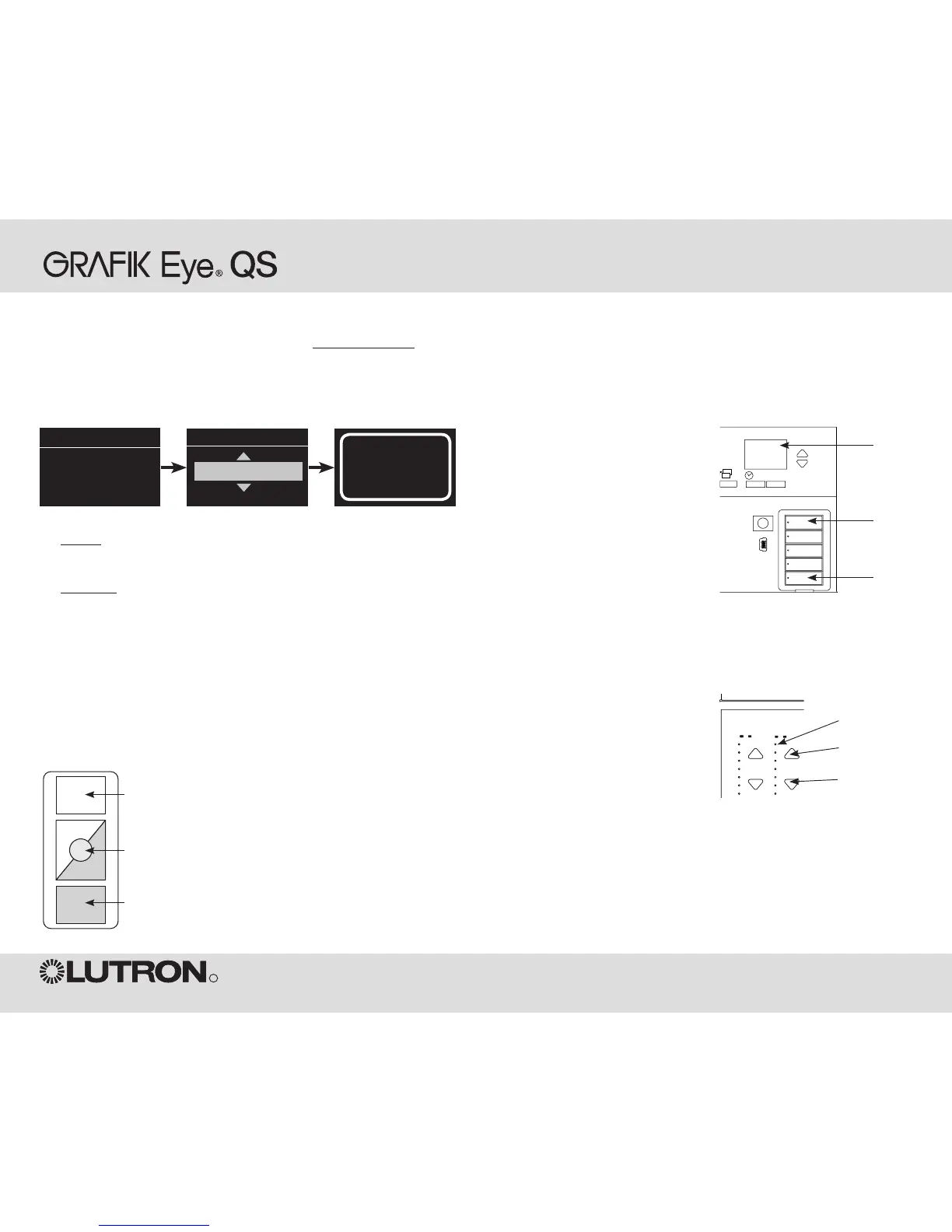

Wireless System Programming
R
GRAFIK Eye® QS Wireless System Programming 5
Light
On
Adjust
Off
Change type?
Zone
Saved
Saved
Pico
Change type?
Press OK
OK
1 2
3
4
5
69 10
11 12
13
14
7
815 16
9-16
1-8
On the GRAFIK Eye QS control
unit, press and hold the top scene
button for 3 seconds to associate,
or press and hold the bottom
scene button for 3 seconds to
disassociate with the Pico control.
Associate
OR
Disassociate
Info
screen
Associating PicoTM Wireless Controls and GRAFIK Eye QS Wireless Control Units
OK
1 2
3
4
5
69 10
11 12
13
14
7
815 16
9-16
1-8
Zone LEDs
Zone Raise
Zone Lower
