3. FRONT PANEL DESCRIPTION

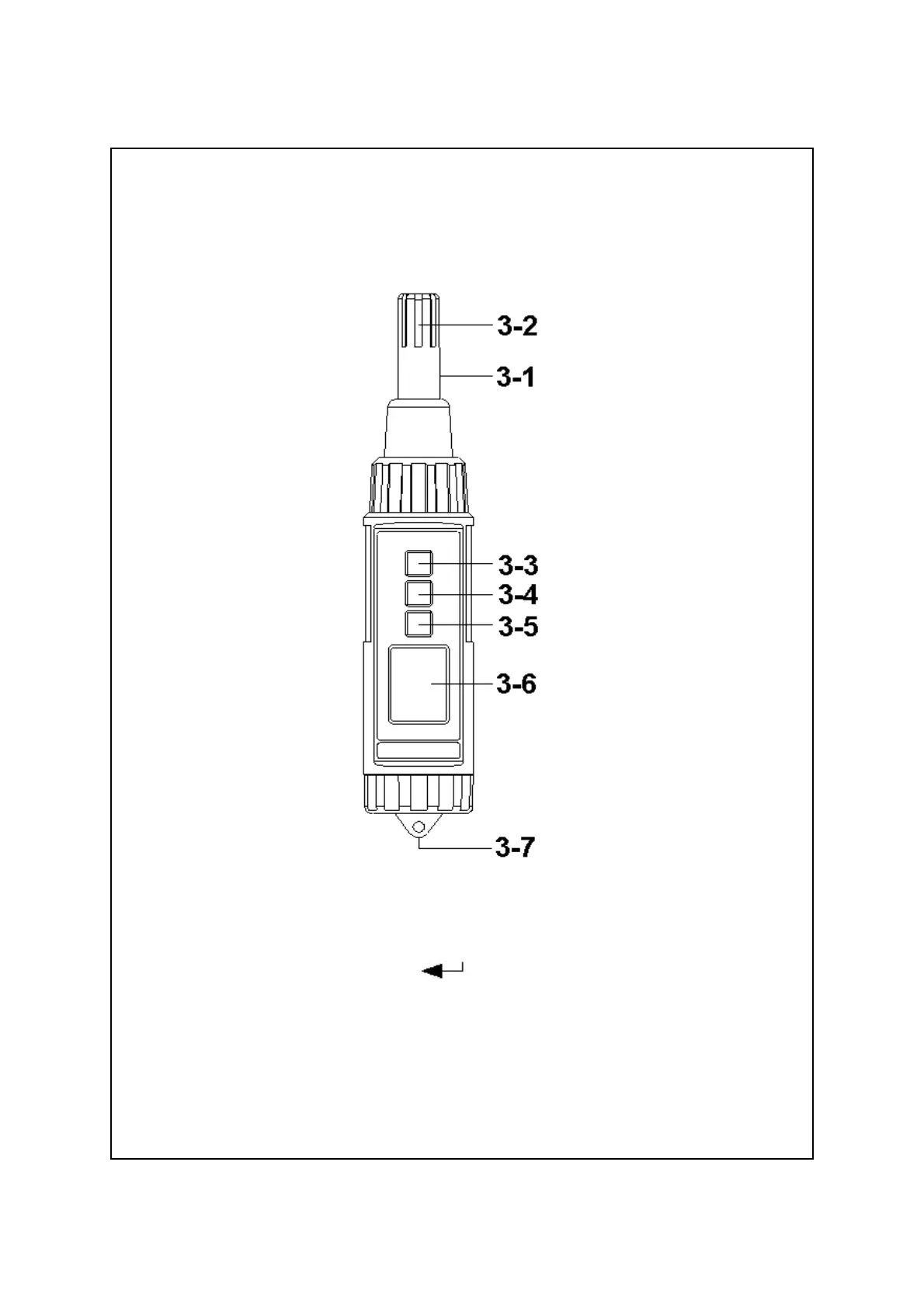

Fig. 1

3-1 Probe head

3-2 Humidity/Temp. Sensor

3-3 Power ( ) Button▲

3-4 Hold ( ) Button, Unit Button

3-5 REC ( ) Button, Mode Button▼

3-6 LCD Display

3-7 Battery Compartment/Cover

5
