Motorized shade with wireless radio frequency (RF) control.
Installation Guide—Please Read Before Installing
Serena® Remote-Controlled Shades
Insulating Honeycomb Shades
English
3
Lutron Electronics Co., Inc., 7200 Suter Road, Coopersburg, PA 18036-1299, U.S.A.
Printed in the U.S.A. 8/13 P/N 368-3194 Rev. B

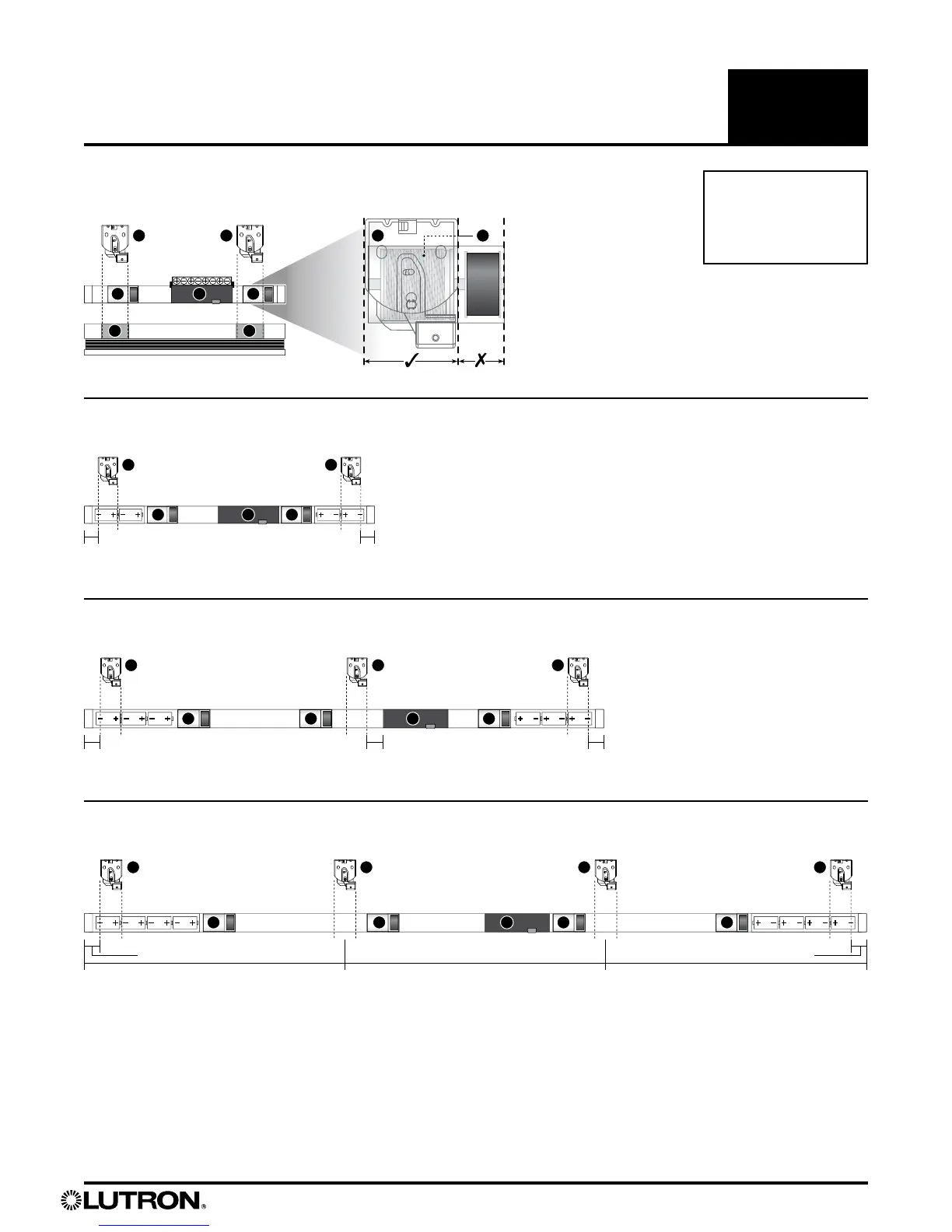

Bracket Placement
Shade width 14.5 in – 25.875 in (368 mm – 657 mm)
Top view of shade
Top view of shade
Top view of shade
Front view of shade
Shade width 26 in – 45 in (660 mm – 1143 mm)
2 in
(5 cm)
2 in
(5 cm)
Shade width 45.125 in – 72 in (1146 mm – 1829 mm)
2 in
(5 cm)
2 in
(5 cm)
2 in
(5 cm)
Shade width 72.125 in – 96 in (1832 mm – 2438 mm)
2 in
(5 cm)
2 in
(5 cm)
1/3 w 1/3 w1/3 w
1. Bracket
2. Cord lift spool
3. Drive
4. Yellow bracket label
1 1 1
2
2
2
2
2
2 2 2
2
2
2
2
3
3
3
3
4 4
Top view of shade and bracket
1
1
1 1 1 1
1 1
1
Top view of shade
