LUVOX Optional features
ProLine
Description
(applies to models F150, F170 & F190 only, AIO systems & LCD
Monitor)
LUVOX devices are kept on stock in large quantities for each
standard model. This way we are able to ship standard models
within 10 workdays max. However, some optional features require
stock units to return to the production plant to be rebuild, having
the specific feature included.
• IP65 front (AIO & Monitor)
• RS-232 & USB Combo Touch Interface (Monitor Only)
• 12Vin or 24Vin pluggable terminal block (AIO & Monitor)
• Integrated 4 Watt STEREO speaker set (AIO & Monitor)
Whenever at least one
of these optional features is demanded, it
is required to order your LUVOX device in the extended
configuration mode, which is sold as ProLine.
However, to contribute to you as our customer, each LUVOX
device is provided as follows:
• Each LUVOX LCD Monitor, ordered as ProLine, will always be
equipped with an RS-232 & USB Combo Touch Interface when
possible (ACCUTOUCH, INTELLITOUCH and SURFACE
CAPACITIVE)
• Each LUVOX device (LCD monitor & AIO system) ordered as
ProLine, will always be equipped with a PHOENIX CONTACT
pluggable terminal block (Industrial standard).
- 33 -

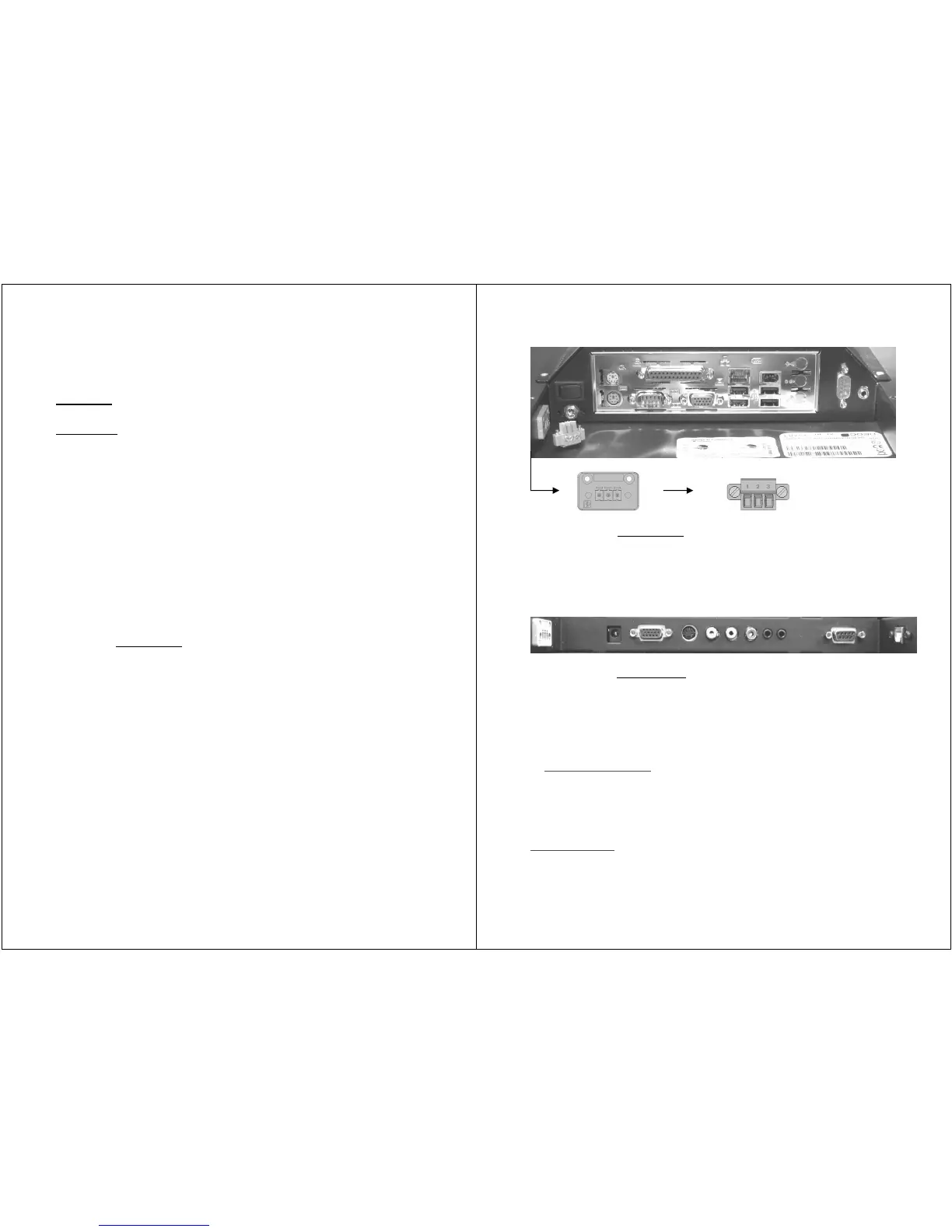

Typical LUVOX AIO system
equipped as ProLine: The connector
bay is expanded with an industrial style power connector socket
(PHOENIX CONTACT MC 1.5/3-GF-3.81). PIN 1: 0V , PIN 2: Earth,
Pin3: +12/24V. The corresponding connector (PHOENIX CONTACT
MC 1.5/3-STF-3.81 partnr 18277116) is included with your
LUVOX device.
Typical LUVOX LCD Monitor
equipped as ProLine. The connector
bay is, behalf the industrial style power connector socket, also
expanded with a Combo (RS-232 & USB) touch interface.
IMPORTANT! Please notice ProLine configured LUVOX All-In-
One systems have two power inputs. The 5.5mm DC power jack
is
ALWAYS THE SAME voltage as the extra 3 Pins socket, 24V or
12V depending on your configuration. The label defines the power
input configuration.
IMPORTANT! Please notice ProLine configured LUVOX LCD
monitors have two power inputs. The 5.5mm DC power jack is
ALWAYS a 12V input, while the extra 3 Pins socket is a 12V or
24V input, depending on your configuration. The label defines the
power input configuration.
