Names and Functions
1. Operation button (OPERATION)
Turns the power on and off (standby state). When connect-
ing input/output terminals, be sure to turn off this button.
2. Operation indicator (OPERATION)
Blinks during mute mode when the operation button is
turned on and lights up when the operation state is reached
after a short time. This indicator blinks when the unit is in
the muting mode or the sound volume is adjusted with the
remote control.
3. Input selector (INPUT SELECTOR)
Selects an input device, such as a CD player, an SACD
player, a D/A converter, or a tuner connected to each input
terminal.
The seven input selectors indicate LINE-4, LINE-3, LINE-2,
LINE-1, BAL LINE-1, BAL LINE-2 and PHONO which cor-
respond to the input terminals on the rear panel. Adjust the
selector to the desired input.
4. Input indicators
The selected input’s indicator will light up when using the
input selector or remote control.
5. Display window
Displays the operation status of this unit.
This display is composed of 6 indicators, sound volume
indicator, and 2 power meters.
6. Remote control infrared receiver (R)
Receives signals from the accessory remote control.
7. Sound volume indicator
Indicates the amount of volume attenuation in –dB.
8. Volume control (VOLUME CONTROL)
Adjusts the sound volume.
Since a rotary encoder is employed and the knob is a full-
rotation type, adjust the sound volume while monitoring the
sound volume indicator of 7 above.
Sound will be muted (– – display) when this control is
rotated fully counterclockwise and reached the end. Volume
will gradually increase as the control is rotated clockwise as
follows: mute → –87 dB → –86 dB → ... → 0 dB in steps
of 1 dB.

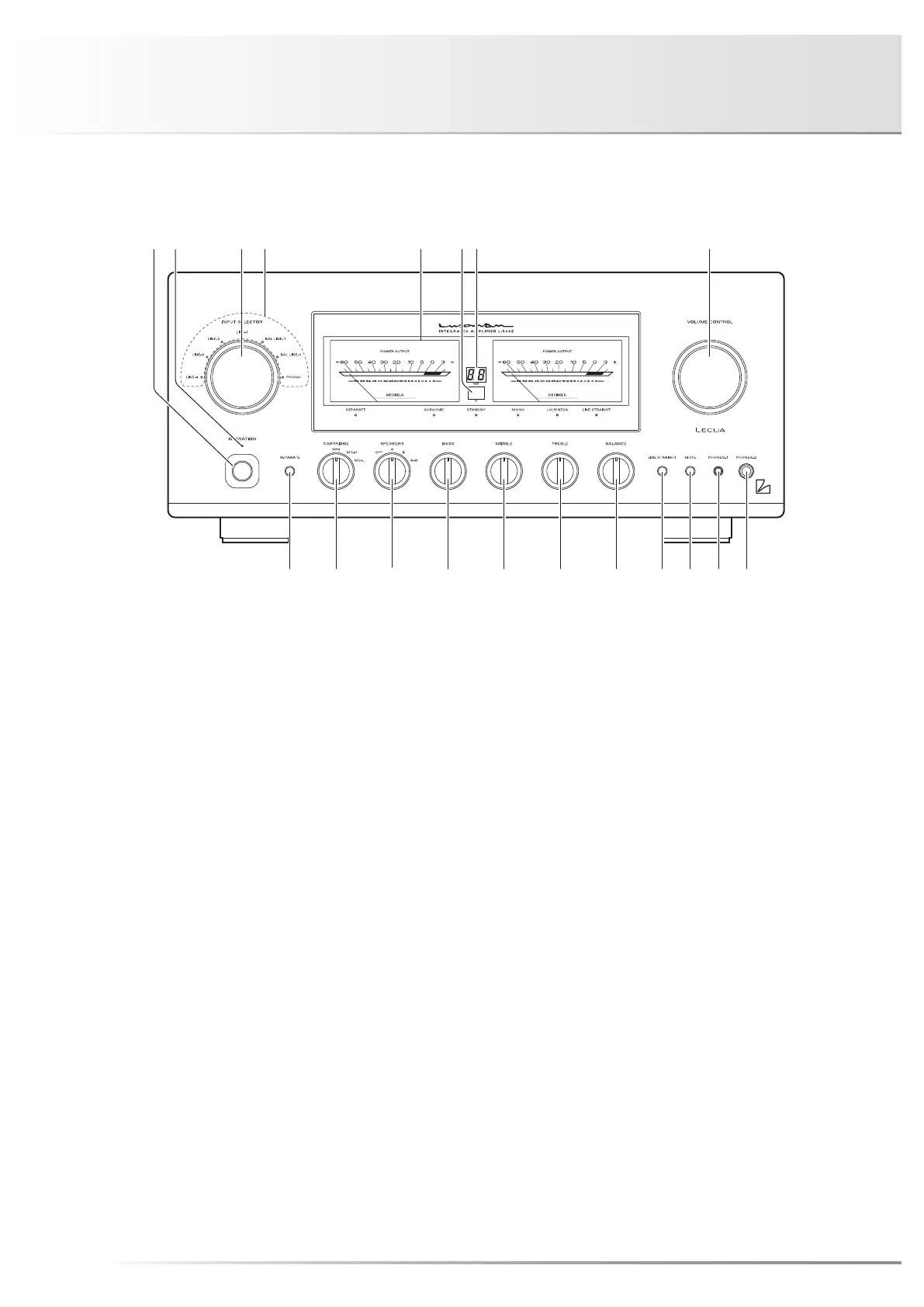

Front panel
910111213141516
17
1819
5 86
71 2 43
