Names and Functions
17. Speaker selector (SPEAKERS)
Selects either of 2 speaker systems, A or B, located at the
rear panel.
OFF: Used when listening only with headphones and
when not generating sound from speakers.
A (Center): Selects the A system speaker terminals.
B: Selects the B system speaker terminals.
A+B: Enables connection to 2 speaker systems.
When using 2 speaker systems simultaneously,
make sure they have an impedance of 8 ohms
or more because the both output terminals are
connected in parallel.
18. Cartridge selector (CARTRIDGE)
Selects the gain level of the equalizer amplifier (an amplifier
circuit necessary for playing an analog records).
MC-H/MC-L: Selects when using a low output voltage MC
(moving coil) type cartridge. Select MC-H/L
in accordance with the MC to use. The input
impedance of HC-H is 100 Ω and of MC-L is
40 Ω. When MC is selected while using an
MM type cartridge, be aware that the sound
volume becomes higher and an unbalanced
sound lacking high frequencies will be heard
owing to the incorrect impedance.
MM: Selects when using a high output voltage MM
(moving magnet) type cartridge.

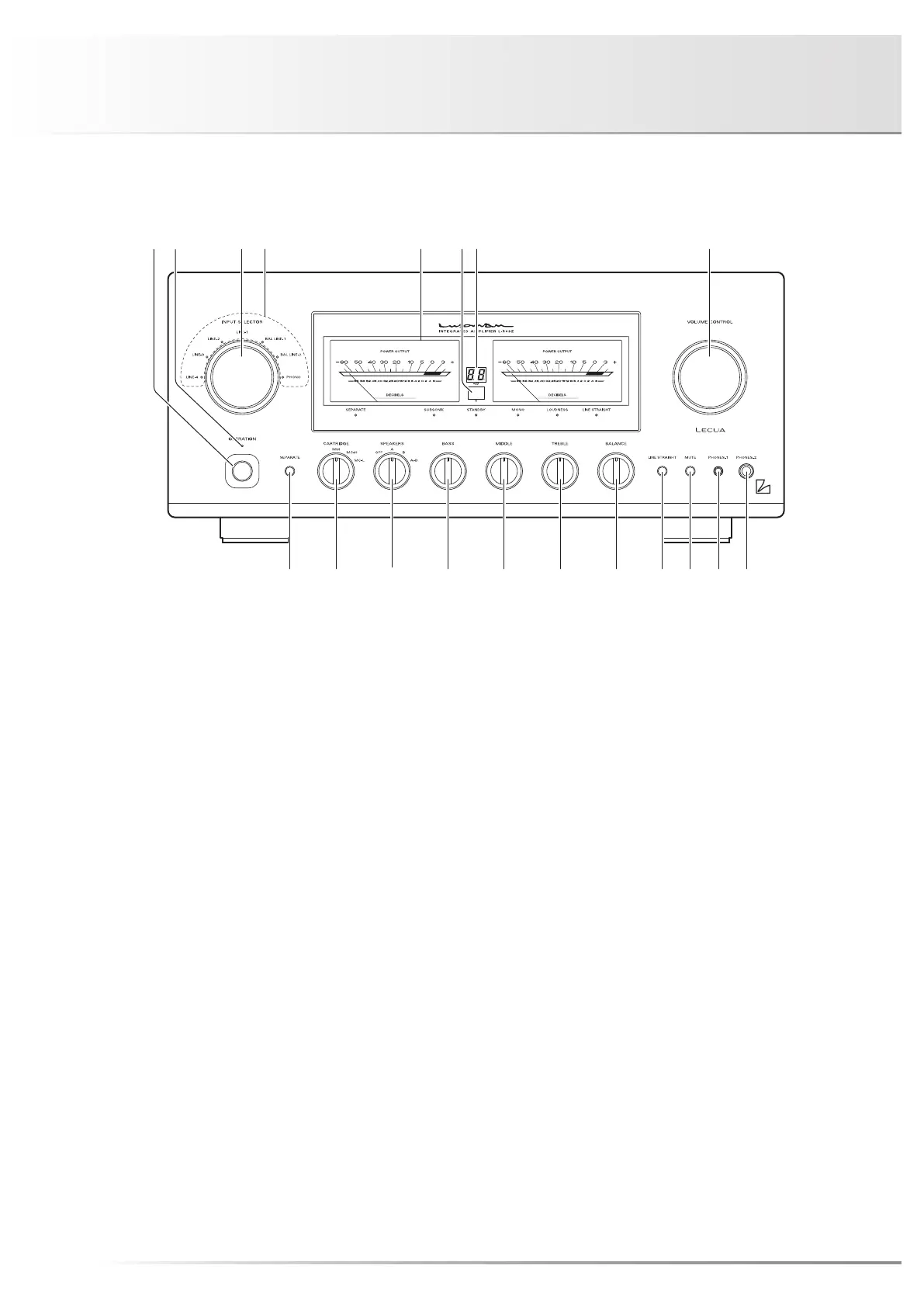

Front panel
910111213141516
17
1819
5 86
71 2 43
