02. [Plug & Play] Self check for Output modules
Before doing a self check, reset the modules by clicking on the module reset button
in MODI Studio.
To conduct the self check, attach the module to the basic block.
[ Self Check for Plug & Play by Connecting an Input Module to an Output Module ]
① Link the Battery module, and then connect an Input module and an Output module
to be checked in order.
(If you don’t have a Battery module or need to recharge it, use the Network module.)
② Check the module connections.
③ Check to see if Plug & Play is operating correctly.
④ Separate the Input and Output modules.
⑤ Repeat steps ① to ④ five times.
⑥ If it fails four or more times, contact us via our website.

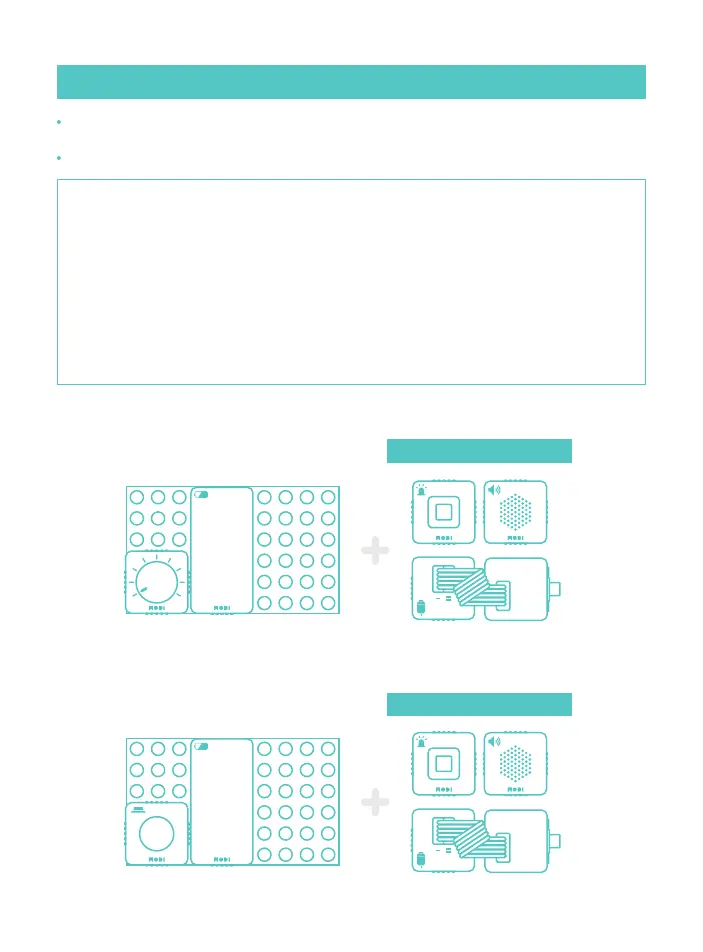

[ Self Check using Dial Module ]
[ Self Check using Button Module ]
Modules that can be tested
Modules that can be tested
* If the Motor module is not operating well, replace the cable connecting the motor controller and the motor.
