Mounting
Mounting
The charger should be located in an area where it:
l Is well ventilated.
l Is not in high traffic areas.
l Locates or orients the AC cord so that it will not be stepped on, tripped over or subjected to damage or stress.
l Has enough clearance to allow easy access to the power port on the back of the device.
l Is protected from rain, dust, direct sunlight or inclement weather.
This device is intended for indoor use only and requires an indoor AC power source. The charger is not approved for use in
Hazardous Locations.
Place the multi-charger on a flat, horizontal, hard surface.
The charger can be mounted to a stable, vertical surface (e.g. wall) using the keyhole openings in the bottom panel of the multi-
charger.

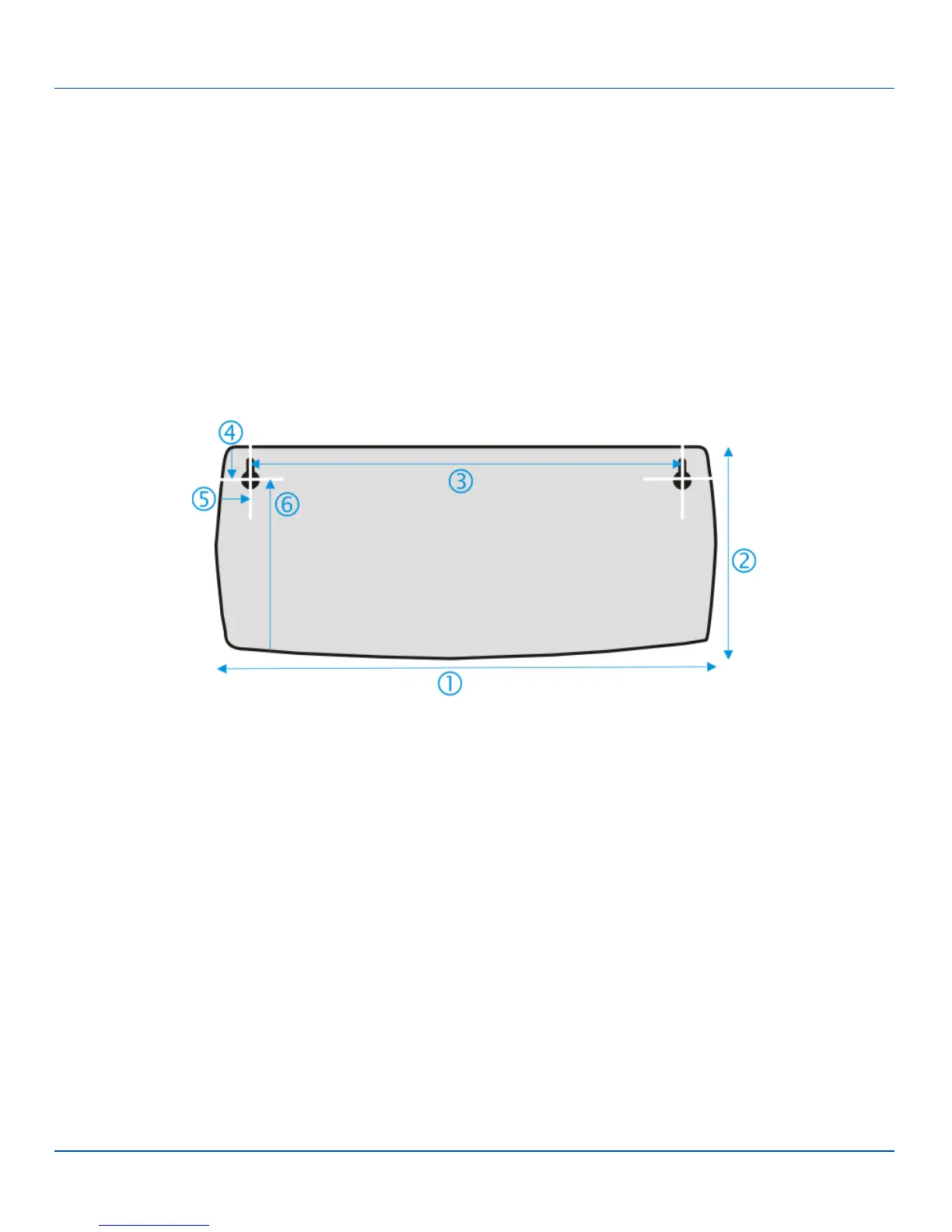

Footprint - Not to Scale
1. Length of charger - 11.75 inches (in)/ 29.8 centimeters (cm)
2. Width of charger - 5.25 in / 13.3 cm
3. Left keyhole center to right keyhole center - 9.8 in / 25 cm
4. Distance down to keyhole center from back of charger - 0.75 in / 1.9 cm
5. Distance to keyhole center from side of charger - 1.1 in / 3.0 cm
6. Distance to keyhole center from front of charger - 4.25 in / 10.8 cm
Care should be taken, when inserting batteries in a vertical-mounted charger, that the battery is secured by the latch in the
battery charging pocket.
E-EQ-MX7TCHGROG-A [ 6 ] MX7 Tecton™ Battery Charger User Guide
