TEXTRON
LYCOMING OPERATOR'S
MANUAL
SECTION 5
0-360 and
ASSOCIATED
MODELS
(4)
Using
a piston ring
compressor,
assemble
the
cylinder
over the
piston
so that
the intake
port is
at the bottom
of the
engine.
Push
the cylinder
all the
way on,
catching
the ring
compressor
as it
is
pushed
off.
HORIZONTAL CENTER
LINE
OF
ENGINE
3
CYLINDER HOLD-DOWN PLATE
INSTRUCTIONS-ON
ENGINES USING CYLINDER
HOLD-DOWN
PLATES, DURING INITIAL TIGHTENING, USE
TWO SHIMS BETWEEN EACH PLATE AND
THE BARREL, LOCATED AS SHOWN. REMOVE
SHIMS BEFORE FINAL TIGHTENING.

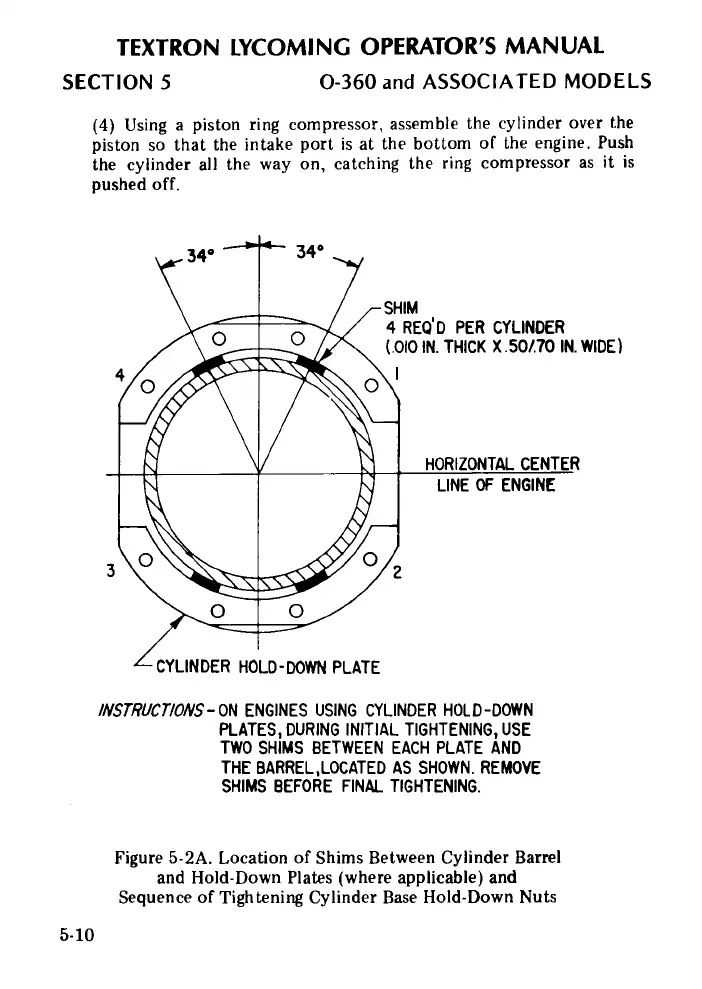

Figure
5-2A. Location of Shims
Between Cylinder
Barrel
and Hold-Down
Plates (where
applicable) and
Sequence of Tightening
Cylinder Base Hold-Down
Nuts
5-10
