Lycomin 0-360 - Page 154

.375-18 NPT
SPECIAL TEMPERATURE
CONNECTION
STANDARD TEMPERATURE
CONNECTION
TO TAKE
MS 28034-1 TEMPERATURE \
BULB OR EQUIVALENT
OIL TO COOLER 5625-18
NF-3 FOR CONNECTING
.375 FLARED TUBE COUPLING
OIL FROM
COOLER 375-18
NPT /
CAN BE ROTATED TO ANY
RADIAL
POSITION
OIL TO COOLER .750-16 NF 3
FOR
CONNECTING
FLARED
TUBE COUPLING
TEXTRON
LYCOMING OPERATOR'S
MANUAL
0-360
and ASSOCIATED
MODELS
SECTION 7
OIL
TO COOLER
.375-18 NPT-
THERMOSTATIC -
OIL BY PASS VALVE

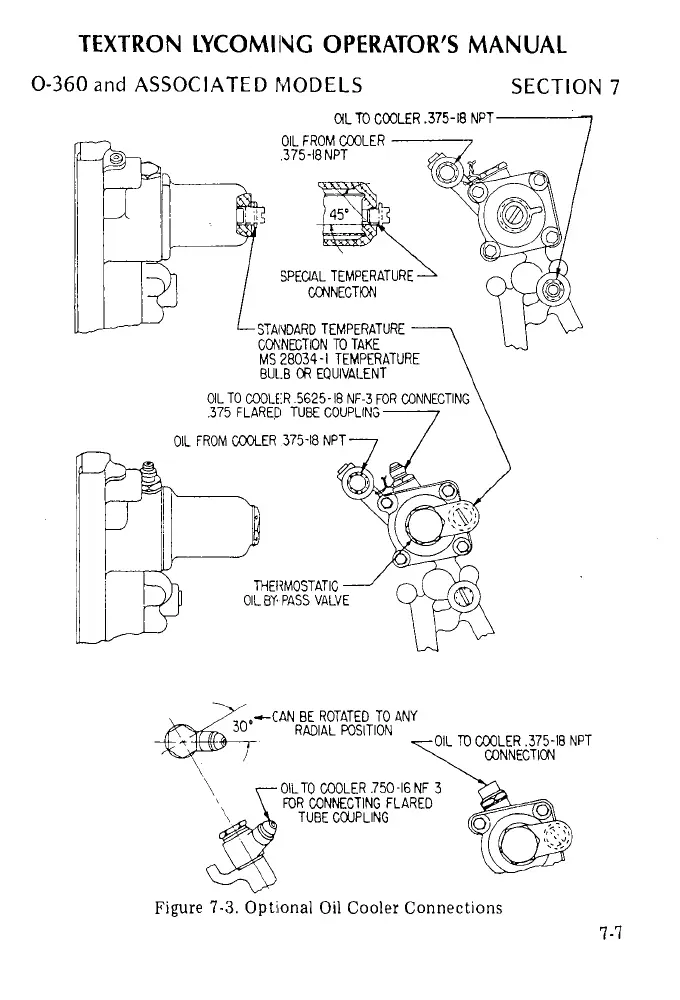

Figure 7-3. Oil Cooler Connections
7-7
