Lycomin 0-360 - Page 157

TACHOMETER CONN.-
BREATHER FITTING
**OIL PRESS SCREEN HSG.
*
*
OIL
FROM
COOLER
,
*
MAGNETO-
ACCESSORY OIL RETURN
PROP. GOV. DRIVE PAD
* SEE
FIG 7-2 FOR MAGNETO
CONNECTIONS
* * SEE
FIG. 7-3 FOR OPTIONAL
CONNECTIONS

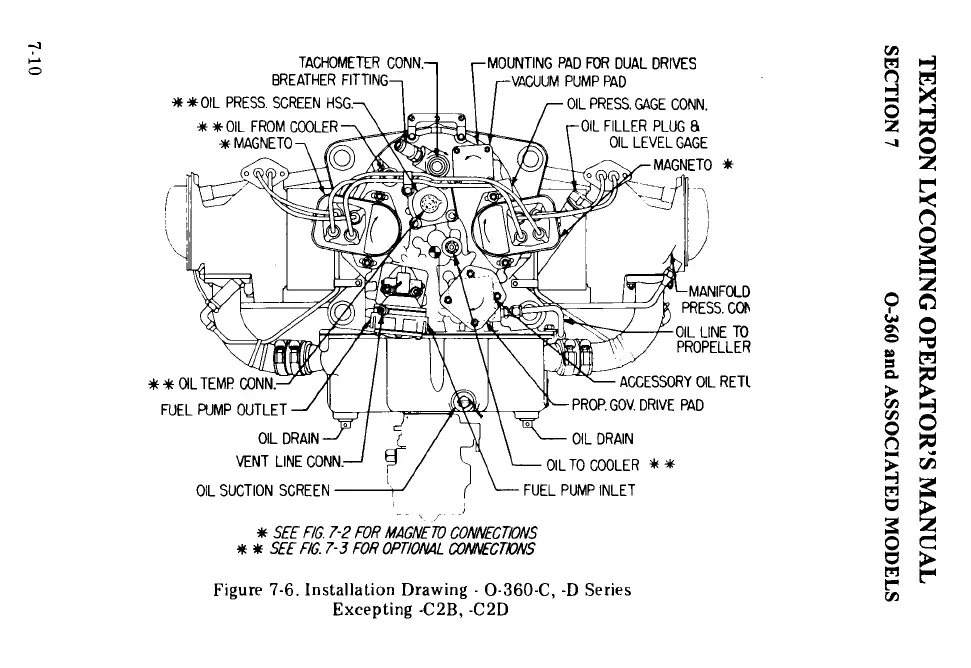

Figure 7-6. Installation Drawing - 0-360-C, -D Series
Excepting
-C2B,
-C2D
