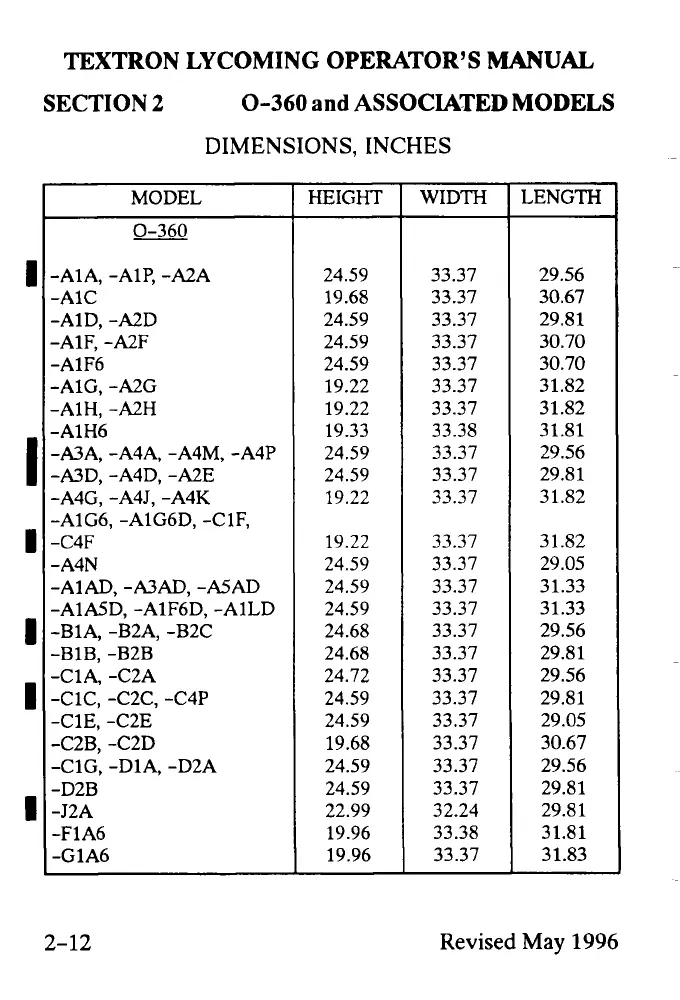

Lycomin 0-360 - Page 40

TEXTRON
LYCOMING
OPERATOR'S
MANUAL
SECTION
2
0-360 and
ASSOCIATED
MODELS
DIMENSIONS,
INCHES
MODEL
HEIGHT WIDTH
LENGTH
0-360
-A1A,-AlP,
-A2A
24.59
33.37
29.56
-A1C
19.68
33.37 30.67
-A1D,-A2D
24.59
33.37
29.81
-A1F, -A2F
24.59
33.37
30.70
-A1F6
24.59 33.37
30.70
-A1G, -A2G
19.22
33.37
31.82
-A1H, -A2H
19.22
33.37
31.82
-A1H6
19.33
33.38
31.81
-A3A,-A4A,
-A4M,-A4P
24.59
33.37
29.56
-A3D,-A4D,-A2E
24.59
33.37
29.81
-A4G,
-A4J, -A4K
19.22
33.37
31.82
-A1G6, -A1G6D, -ClF,
-C4F
19.22
33.37
31.82
-A4N
24.59
33.37
29.05
-A1AD, -A3AD,
-A5AD
24.59
33.37
31.33
-A1A5D,
-A1F6D,
-A1LD
24.59
33.37
31.33
-BlA,-B2A,-B2C
24.68
33.37
29.56
-B1B,
-B2B
24.68
33.37
29.81
-ClA,
-C2A
24.72
33.37
29.56
-ClC,-C2C,-C4P
24.59
33.37
29.81
-C1E,-C2E
24.59
33.37
29.05
-C2B,-C2D
19.68
33.37
30.67
-ClG,-DlA,-D2A
24.59
33.37
29.56
-D2B
24.59
33.37
29.81
-J2A
22.99
32.24
29.81
-F1A6
19.96
33.38
31.81
-G1A6
19.96
33.37
31.83
2-12
Revised
May 1996
