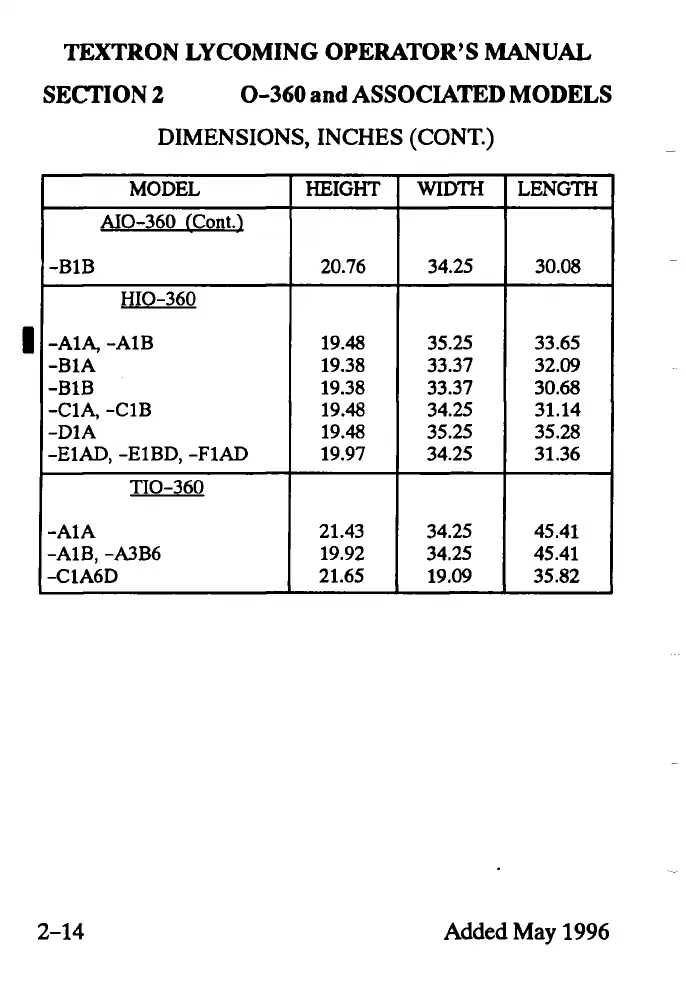

TEXTRON LYCOMING OPERATOR'S MANUAL
SECTION 2 0-360 and ASSOCIATED MODELS
DIMENSIONS, INCHES (CONT.)
MODEL HEIGHT WIDTH LENGTH
AIO-360 (Cont.)
-B1B
20.76
34.25 30.08
HIO-360
-AlA, -A1B
19.48
35.25 33.65
-B1A 19.38 33.37 32.09
-B1B 19.38 33.37 30.68
-C1A,
-C1B
19.48 34.25
31.14
-D1A 19.48 35.25 35.28
-ElAD, -E1BD, -FlAD 19.97 34.25 31.36
TIO-360
-A1A 21.43 34.25 45.41
-A1B, -A3B6 19.92 34.25 45.41
-C1A6D 21.65 19.09 35.82
2-14 Added
May
1996
