TEXTRON LYCOMING OPERATOR’S MANUAL
SECTION 3
O-360 and ASSOCIATED MODELS
3-a

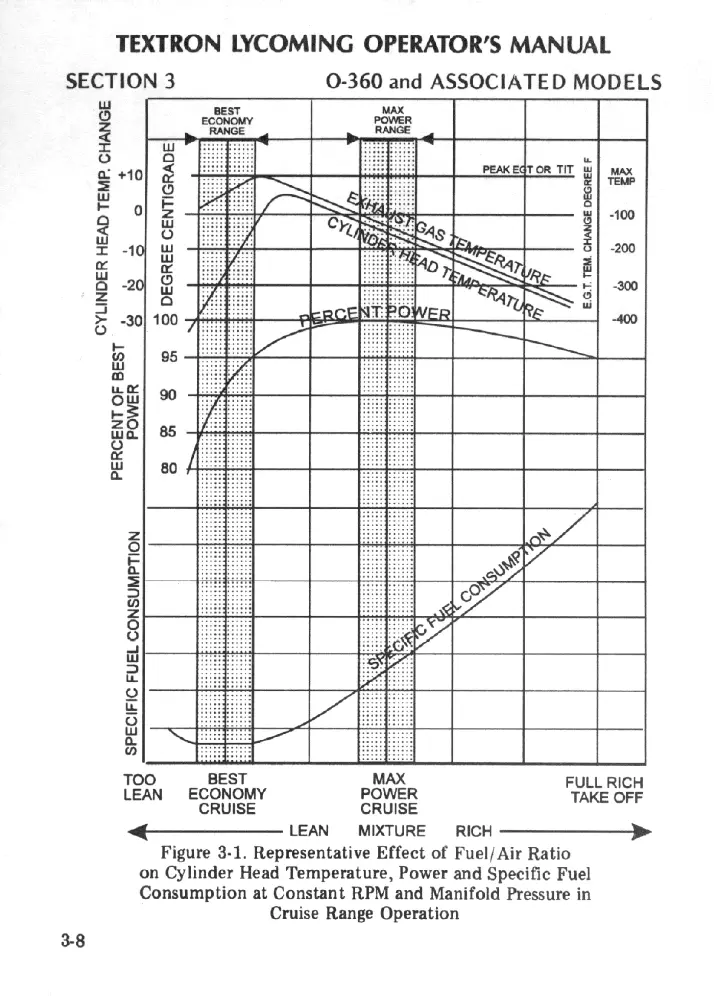

Figure 3-1. Representative Effect of Fuel/Air Ratio
on Cylinder Head Temperature, Power and Specific Fuel
Consumption at Constant RPM and Manifold Pressure in
Cruise Range Operation
