TEXTRON LYCOMING OPERATOR'S MANUAL
SECTION 3
0-360 and ASSOCIATED MODELS
CURVE NO. 12699B
PARTTHROTTLE FUEL CONSUMPTION
LYCOMING ENGINE MODEL
IO-360-A,C,D AND -J SERIES
AIO-360-A SERIES
COMPRESSION RATIO
SPARK TIMING
FUEL INJECTOR,
FUEL GRADE MINIMUM
MIXTURE CONTROL-
8.70:1
25
°
BTC
BENDIX RSA-5AD1
100/130
MANUAL TO BEST ECONOMY
OR BEST POWER AS INDICATED
85
MIXTURE SETTING
BEST ECONOMY
0 160
180
200100 120 14
ACTUAL BRAKE HORSEPOWER

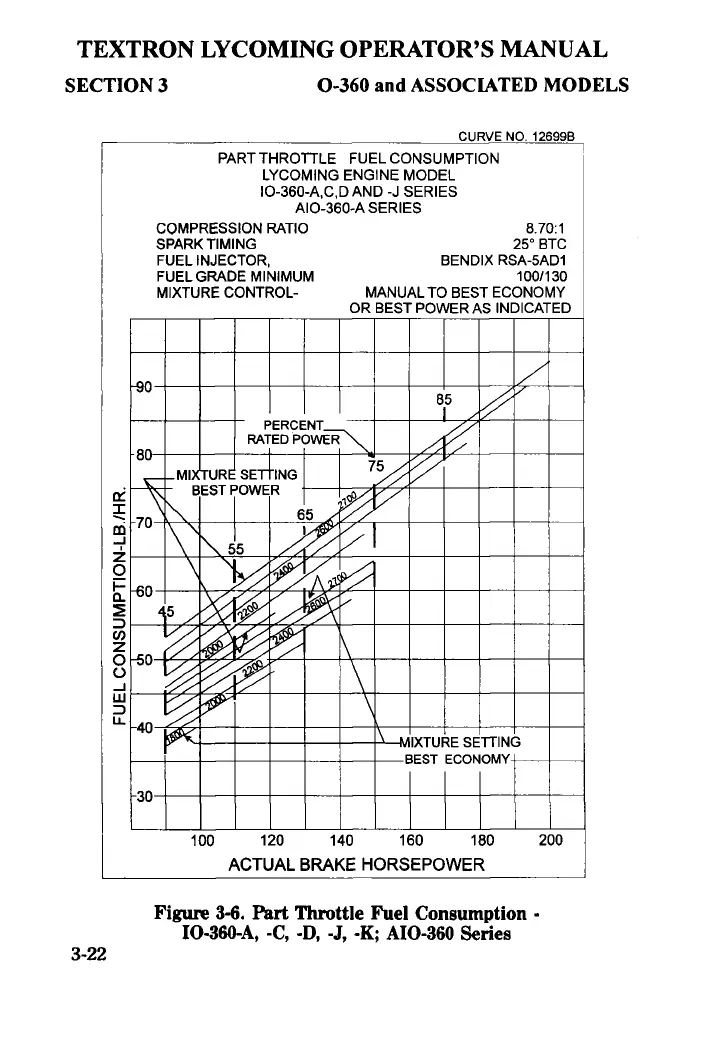

Figure 3-6. Part Throttle Fuel Consumption -
IO-360-A, -C, -D, -J, -K; AIO-360 Series
