TEXTRON
LYCOMING
OPERATOR'S
MANUAL
0-360
and
ASSOCIATED
MODELS
SECTION
3
FUEL
FLOW vs PERCENT
RATED POWER
LYCOMING
HIO-360-D
SERIES
ENGINE
SPEED
3200 RPM
MANUAL MIXTURE
CONTROL
TO
FLOW METER
GAGE
CURVE NO 13063-A
80
70
60
50
40
50
60
70
80
90
PERCENT
RATED
POWER
100

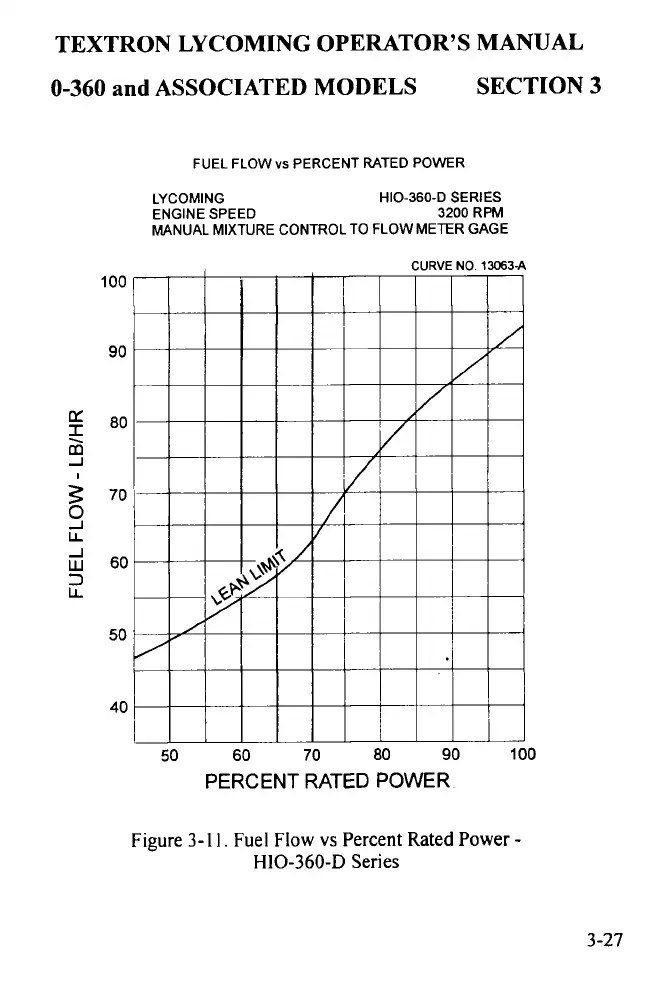

Figure
3-11.
Fuel
Flow
vs Percent
Rated
Power
-
HIO-360-D
Series
3-27
