21
Light Bulb Replacement
Replacing the Briquettes
TO REPLACE BRIQUETTES
The special Lynx ceramic bri-
quettes are secured to the trays
with stainless steel clips. To in-
sert a briquette into the tray, it
is necessary to remove the clip
from one side of the empty slot.
This is done by bending the re-
taining tabs for the clip located
on the back side of the briquette
tray as shown below.
WA R N I N G
The edges of the clips
may be sharp. Pliers
MUST be used to remove
clips - never attempt to
remove them by hand as
injury may result.

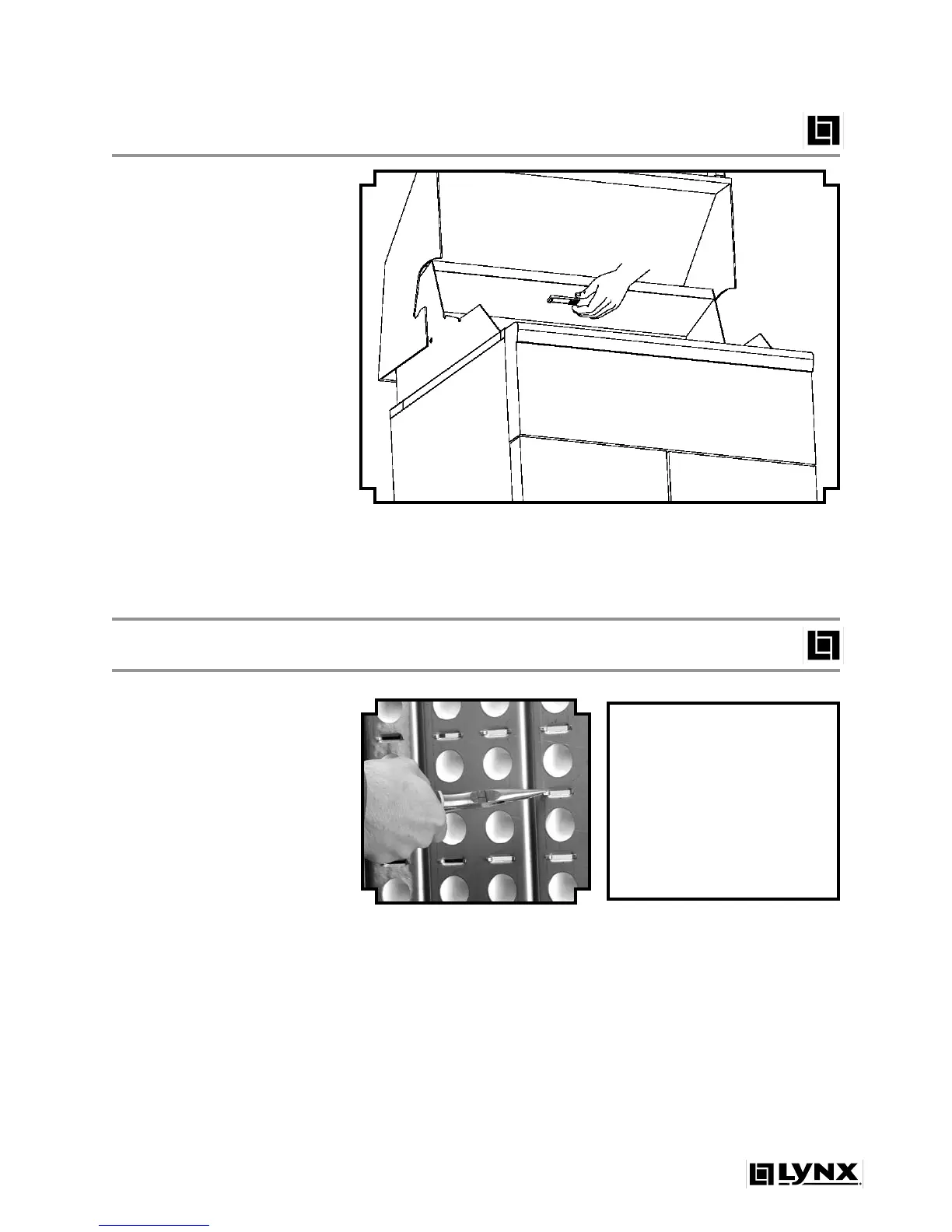

Figure 21-1
- Remove glass cover to access work light bulb.
TO CHANGE LIGHT BULBS
Remove the glass light cover by
grasping the edge of the glass
and gently prying it o. It may
be necessary to remove one
screw. Pull the old bulb straight
out from socket - do not twist.
Replacement bulbs are halogen,
12 volt, T3 type with a G4 bipin
base. The 27” and 30” grill uses
one 10W bulb, all others use two
10W bulbs.
AVOID TOUCHING THE
GLASS OF NEW BULBS.
Install new bulb by gently press-
ing it into the socket. Replace
glass cover by gently snapping
back into place.
