Lynx L30 Series Care & Use

22

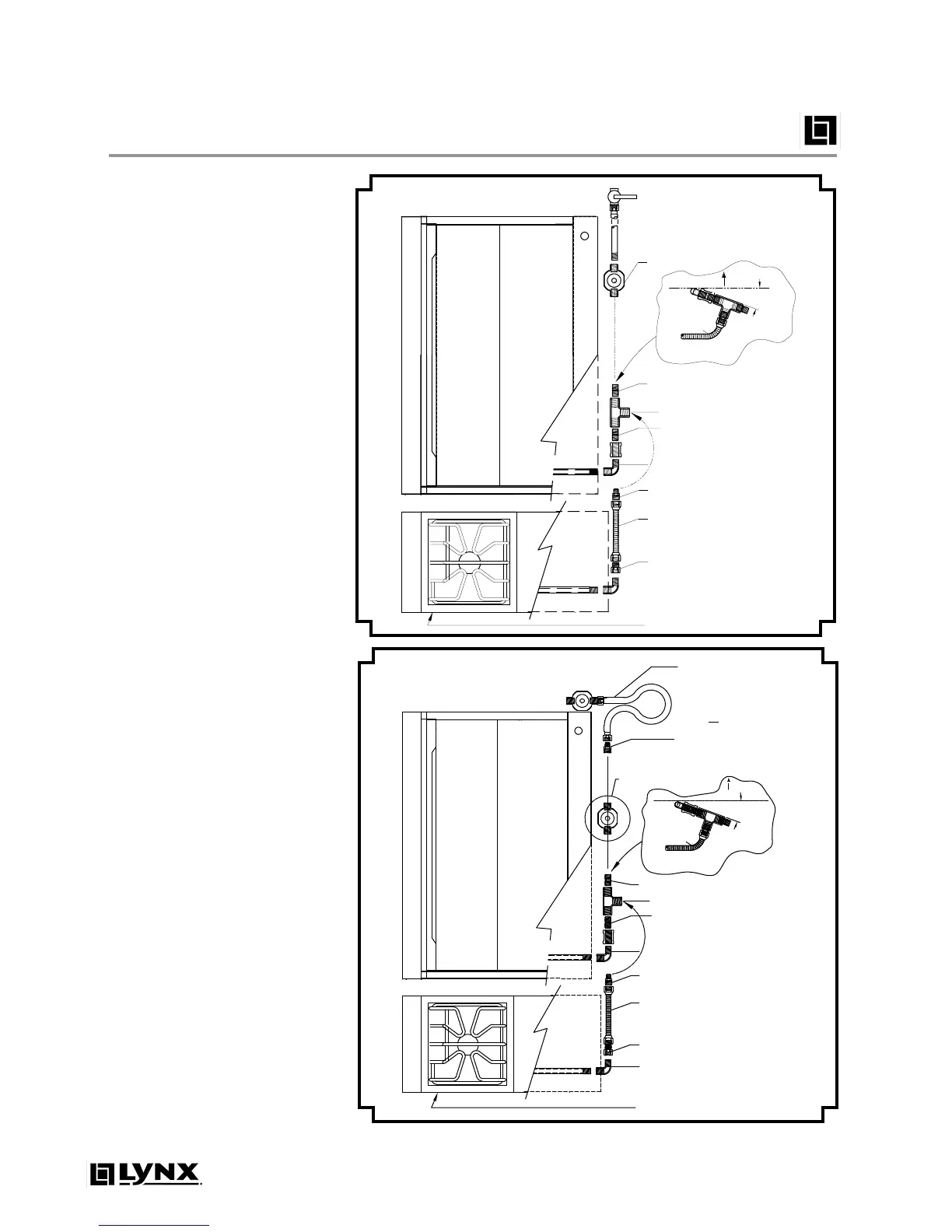

Side Burner/LPSGE Gas Hookup
High pressure flexible
hose & regulator existing
on grill
1/2” FIP x 3/8” MIP Flare
Elbow or 1/2” FIP or 1/2”
FIP x 3/8” MIP Flare
Fitting
Use regulator here for
hard-plumbed L.P. hook-up
(Lynx P/N 30781)
1/2” Close Nipple
1/2” Close Nipple
1/2” MIP Fitting
1/2” Union (Coupler)
1/2” Male-Female
Street Elbow
1/2” Male-Female
Street Elbow
Side Burner or
Grill Extender
Side Burner
Manifold
BBQ Manifold
1/2” O.D. Stainless
Steel Flexible Hose
1/2” FIP Fitting
1/2” Tee
REAR VIEW
TOP
Flex Hose
Approx. 20º
from Horizontal
TOP VIEW
GRILL
BUILT-IN INSTALLATION
1) Shut o gas supply at main
valve.
2) Disconnect all plumbing (if al-
ready attached) from grill and
gas supply valve.
3) Remove all ttings from grill
manifold.
4) Install side burner into cutout
in counter top.
5) Connect gas supply to grill
and side burner as shown in
the gure at right for your
proper gas type.
6) Turn gas supply on and leak
test all connections.
CART INSTALLATION
1) Shut o gas supply at main
valve.
2) Disconnect all plumbing (if al-
ready attached) from grill and
gas supply valve.
3) Remove all ttings from grill
manifold.
4) Install side burner onto cart
according to the directions
supplied with the cart mount-
ing kit.
5) Connect gas supply to grill
and side burner as shown in
the gure at right for your
proper gas type.
6) Turn gas supply on and leak
test all connections.
N.G. Outlet Shuf-Off
Valve 1/2” Min
Inter Connecting
Pipe Work
Regulator
1/2” Close Nipple
1/2” Close Nipple
1/2” MIP Fitting
1/2” Union (Coupler)
1/2” Male-Female
Street Elbow
Side Burner or
Grill Extender
BBQ Manifold
Side Burner
Manifold
1/2” O.D. Stainless
Steel Flexible Hose
1/2” FIP Fitting
1/2” Tee
REAR VIEW
TOP
Flex Hose
Approx. 20º
from Horizontal
GRILL
Natural Gas
LP Gas
