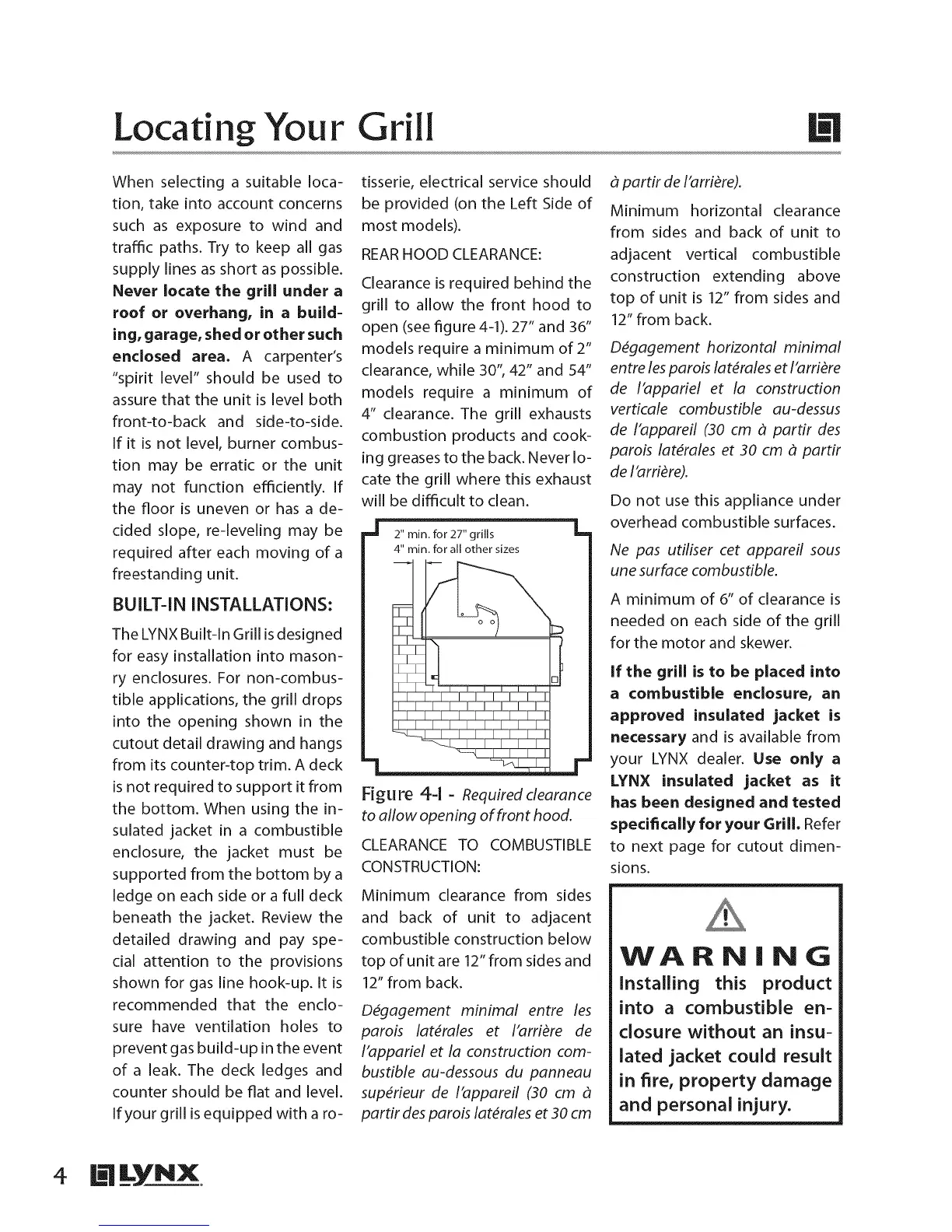

Locadng Your GH
When selecting a suitable loca-
tion, take into account concerns
such as exposure to wind and
traffic paths. Try to keep all gas
supply lines as short as possible.
Never locate the grill under a
roof or overhang, in a build-
ing, garage, shed or other such
enclosed area. A carpenter's
"spirit level" should be used to
assure that the unit is level both
front-to-back and side-to-side.
If it is not level, burner combus-
tion may be erratic or the unit
may not function efficiently. If
the floor is uneven or has a de-
cided slope, re-leveling may be
required after each moving of a
freestanding unit.
BUILT-IN INSTALLATIONS:
The LYNXBuilt-In Grill isdesigned
for easy installation into mason-
ry enclosures. For non-combus-
tible applications, the grill drops
into the opening shown in the
cutout detail drawing and hangs
from its counter-top trim. A deck
isnot required to support it from
the bottom. When using the in-
sulated jacket in a combustible
enclosure, the jacket must be
supported from the bottom by a
ledge on each side or a full deck
beneath the jacket. Review the
detailed drawing and pay spe-
cial attention to the provisions
shown for gas line hook-up. It is
recommended that the enclo-
sure have ventilation holes to
prevent gas build-up inthe event
of a leak. The deck ledges and
counter should be flat and level.
If your grill isequipped with a to-
tisserie, electrical service should
be provided (on the Left Side of
most models).
REARHOOD CLEARANCE:
Clearance isrequired behind the
grill to allow the front hood to
open (see figure 4q). 27" and 36"
models require a minimum of 2"
clearance, while 30", 42" and 54"
models require a minimum of
4" clearance. The grill exhausts
combustion products and cook-
ing greases to the back. Never lo-
cate the grill where this exhaust
will be difficult to clean.
2" rain. for 27" grills
4" rain. for all other sizes
Figu re 4-1 - Requireddearance
to allow opening of front hood.
CLEARANCE TO COMBUSTIBLE
CONSTRUCTION:
Minimum clearance from sides
and back of unit to adjacent
combustible construction below
top of unit are 12" from sides and
12" from back.
D_gagement minimal entre les
parois lat_rales et I'arri¢re de
I'appafiel et la construction com-
bustible au-dessous du panneau
sup_fieur de I'appareil (30 cm
partir des parois lat_rales et 30 cm
partir de I'arri¢re).
Minimum horizontal clearance
from sides and back of unit to
adjacent vertical combustible
construction extending above
top of unit is 12" from sides and
12" from back.
D_gagement horizontal minimal
entre lesparois lat_rales et I'arri¢re
de I'appafiel et la construction
verticale combustible au-dessus
de I'appareil (30 cm _ partir des
parois lat_rales et 30 cm _ partir
de I'arfi¢re).
Do not use this appliance under
overhead combustible surfaces.
Ne pas u_'liser cet appareil sous
une surface combustible.
A minimum of 6" of clearance is
needed on each side of the grill
for the motor and skewer.
If the grill is to be placed into
a combustible enclosure, an
approved insulated jacket is
necessary and isavailable from
your LYNX dealer. Use only a
LYNX insulated jacket as it
has been designed and tested
specifically for your Grill. Refer
to next page for cutout dimen-
sions.
WARNING
Installing this product
into a combustible en-
closure without an insu-
lated jacket could result
in fire, property damage
and personal injury.
4 lil YNX
