30 _____________________________________________ OPERATORS MANUAL
ENGLISH

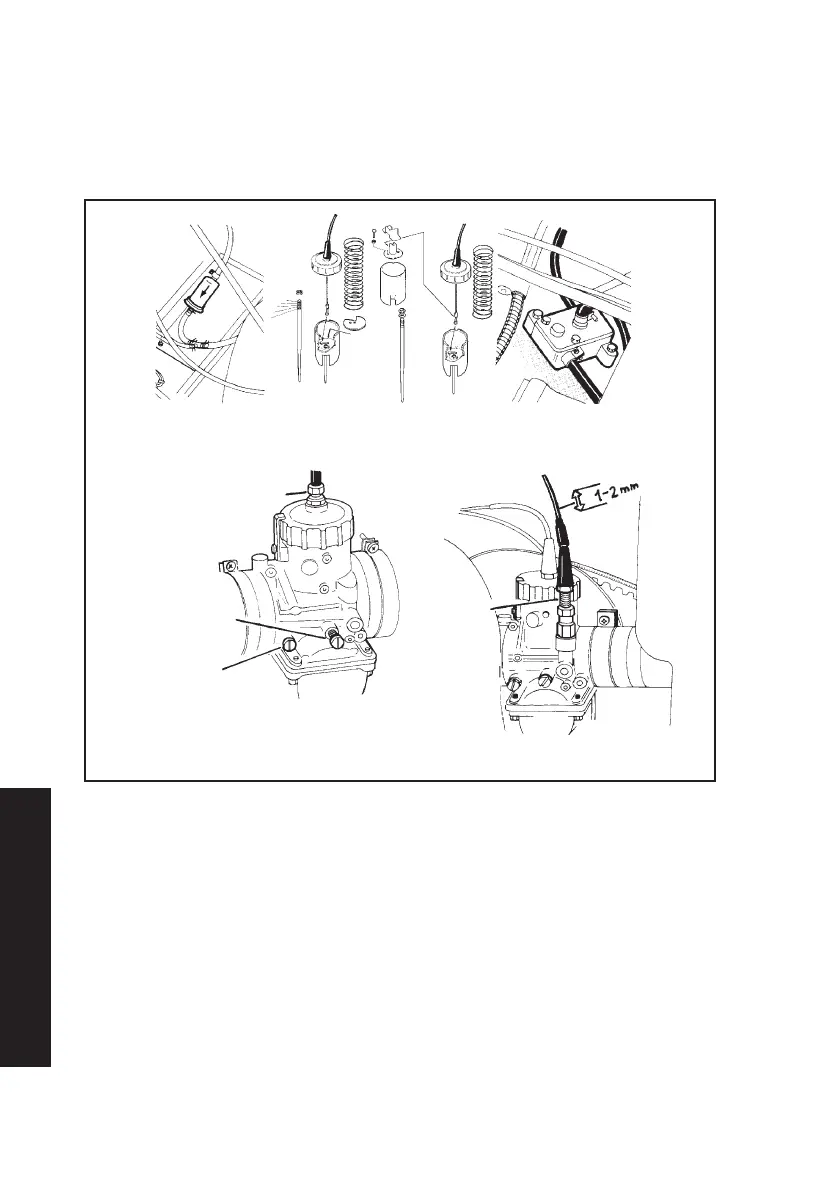

Choke wire
Fuel filter
Gas wire, loosening
Fuel pump
Idling screw
Air screw
Carburetor
Adjusting
screw
Models which have two carburettors each carburettor has been calibrated for respective
cylinder. To achieve both maximum capacity and good fuel economy, jets and adjusting
must be correct. If there is a problem with identification or adjustment of carburettors
contact the nearest authorized LYNX-service.
Idling adjusting
When adjusting idle speed on twin carburettor models, repeat on the other one.
Gas wire adjusting: Screw down the gas wire with adjusting screw so that there is
no slack between the mantel of the gas wire and adjusting screw. Then unscrew it
1/2 rounds (the slack will be 1 mm) and lock the adjusting screw with the nut.
Air screw basic adjustment: Screw down the air screw carefully and unscrew then
as in specifications for respective model.
Idling basic adjustment: Turn the idling screw clockwise until it contacts throttle.
Turn two rounds still. Now the idling is roughly adjusted.
Check the injection oil pump adjustment.
