4

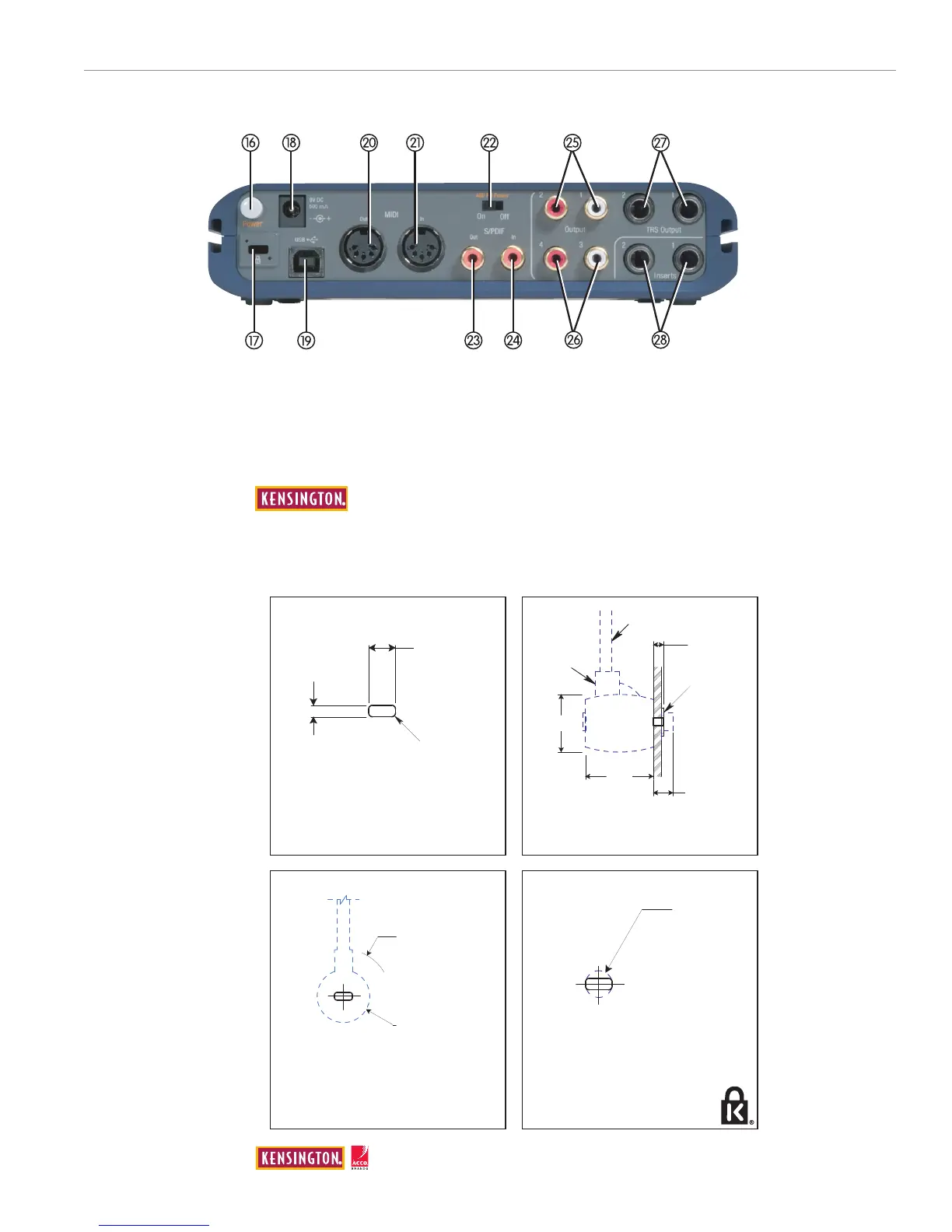

Rear Panel
16. Power Button (Power) – Pressing this button will power on the Fast Track Pro, illuminating the front-panel Power LED (13). The
unit must be connected to a functioning host computer’s USB bus, or to the optional external power supply.
17. Kensington
TM
Lock Port – This connector is compatible with Kensington
®
security cables to protect your device from theft.
7.00
+.26
–.00
3.00
+.26
–.00
4 * R 1.00 max
Kensington Security Slot
All measurements are in millimeters
Slot Clearance—Side view
All measurements are in millimeters
Slot Outside Clearance
All measurements are in millimeters
Slot Inside Clearance
All measurements are in millimeters
R 3.50
Security Slot Specifications
Lock Clearance Specifications and Electrical Considerations
The Notebook MicroSaver has an interference volume inside
the computer equipment it secures. There should not be any
electrical components adjacent to the slot, and the MicroSaver
product should never be in contact with any electrical
components.
Notes:
1. Interpret dimensions and tolerances per ASME Y14.5M-1994
.
2. All indicated dimensions are in millimeters. Indicated
volume to be left free and clear of obstructions. Cable ring
can rotate 360 degrees with respect to hole.
R18.50
Cable ring can
rotate 360° with
respect to slot
R30.00
Lock at base
Min. clearance
22.60
26.60
7.70
Cable
Rotating cable
ring
Wall thickness
range including
metal backing
2.50 to 4.00
Metal backing
recommended
> 0.8 stainless
steel
Kensington Technology Group
2000 Alameda de las Pulgas
San Mateo, CA 94403
© 2002 Kensington Technology Group, a division of ACCO Brands, Inc. All rights
reserved. Kensington is a registered trademark of ACCO World Corporation.
