M-system MSP5 User Manual

MODEL: MSP5

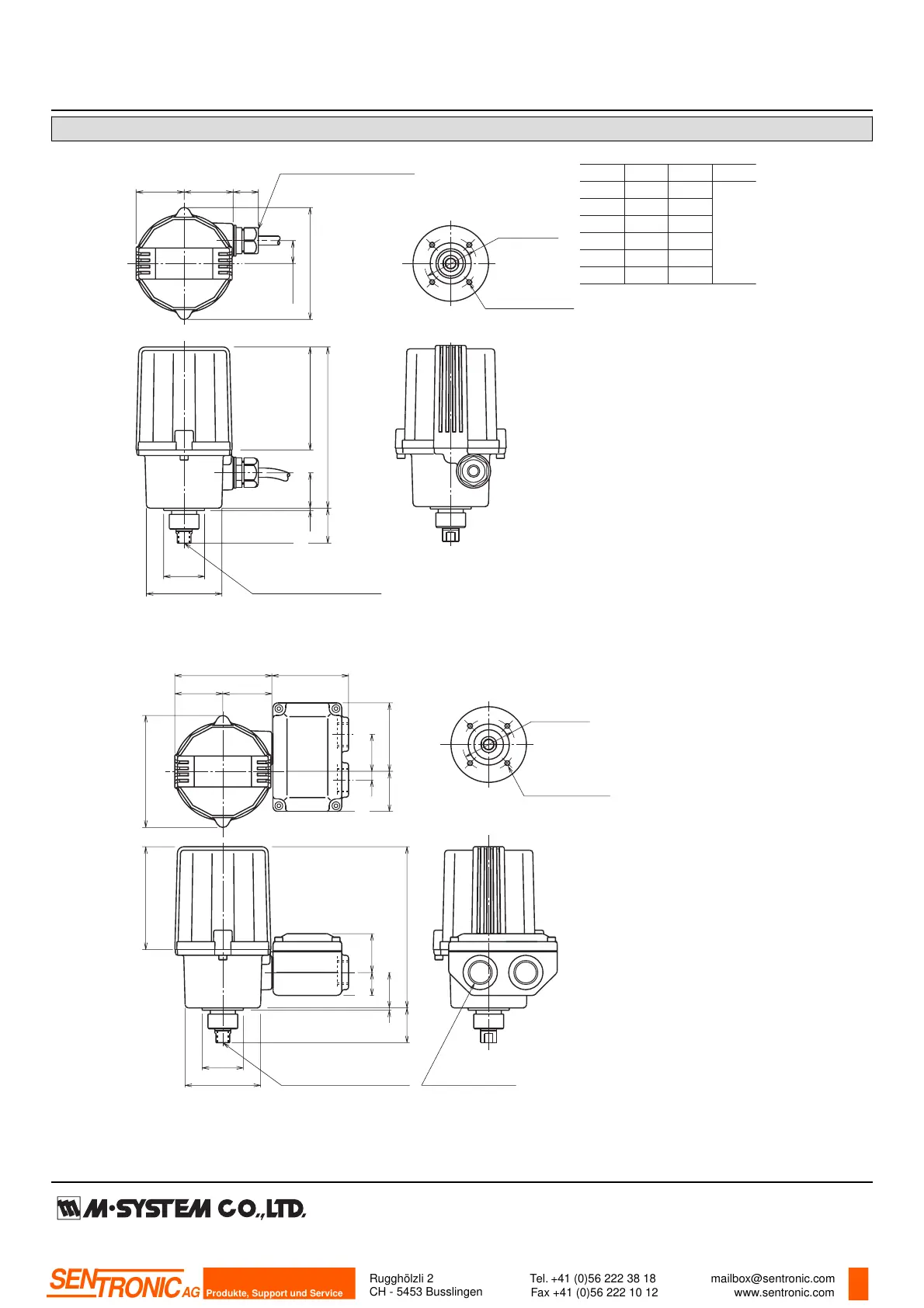

DIMENSIONS unit: mm (inch)
42 (1.65) 43 (1.69) 22 (.87)
CABLE CONNECTOR
w/1 meter (3.28 ft) LEADWIRE
20 (.79)
90 (3.54)
[130 (5.12)]
141 (5.55) [181 (7.13)]50
*
(1.97) max.
98 (3.86)
46 (1.81) dia.
4–M5 10 (.39) deep
31 (1.22)2 (.08)
36 –0.1 dia.
0
66 (2.60) dia.
M (See the table to the right)
YOKE CONNECTION
[ ] for AC power supply
*
40 (1.57) max. with 5 – 10 mm stroke
YOKE SURFACE
OUTPUT STEM HOLE SIZE M
CODE DIA. PITCH DEPTH
6 M 6 0.75
8 M 8 1.0
1 M10 1.25 15
D M 6 1.0
E M 8 1.25
F M10 1.5
42 (1.65) 43 (1.69)
67 (2.64)85 (3.35)
34 (1.34)
141 (5.55) [181 (7.13)]
90 (3.54) [130 (5.12)] 98 (3.86)
50
*
(1.97) max.
46 (1.81) dia.
4–M5 10 (.39) deep
31 (1.22)
2 (.08)
36 –0.1 dia.
0
66 (2.60) dia.
M (See the table to the right)
YOKE CONNECTION
[ ] for AC power supply
*
40 (1.57) max. with 5 – 10 mm stroke
YOKE SURFACE
20 (.79)
60 (2.36)
35 (1.38)
7.5 (.30)
2–G 1/2 CONDUIT
32.5 (1.28)
Cable connector or leadwires not provided with terminal box.
■ TERMINAL BOX TYPE
Rugghölzli 2
CH - 5453 Busslingen
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
mailbox@sentronic.com
www.sentronic.com
Produkte, Support und Service
SEN
TRONIC
AG
