M-system R7C-SV4 - Wiring Instructions

R7C-SV4
EM-7801-A Rev.7 P. 6 / 10

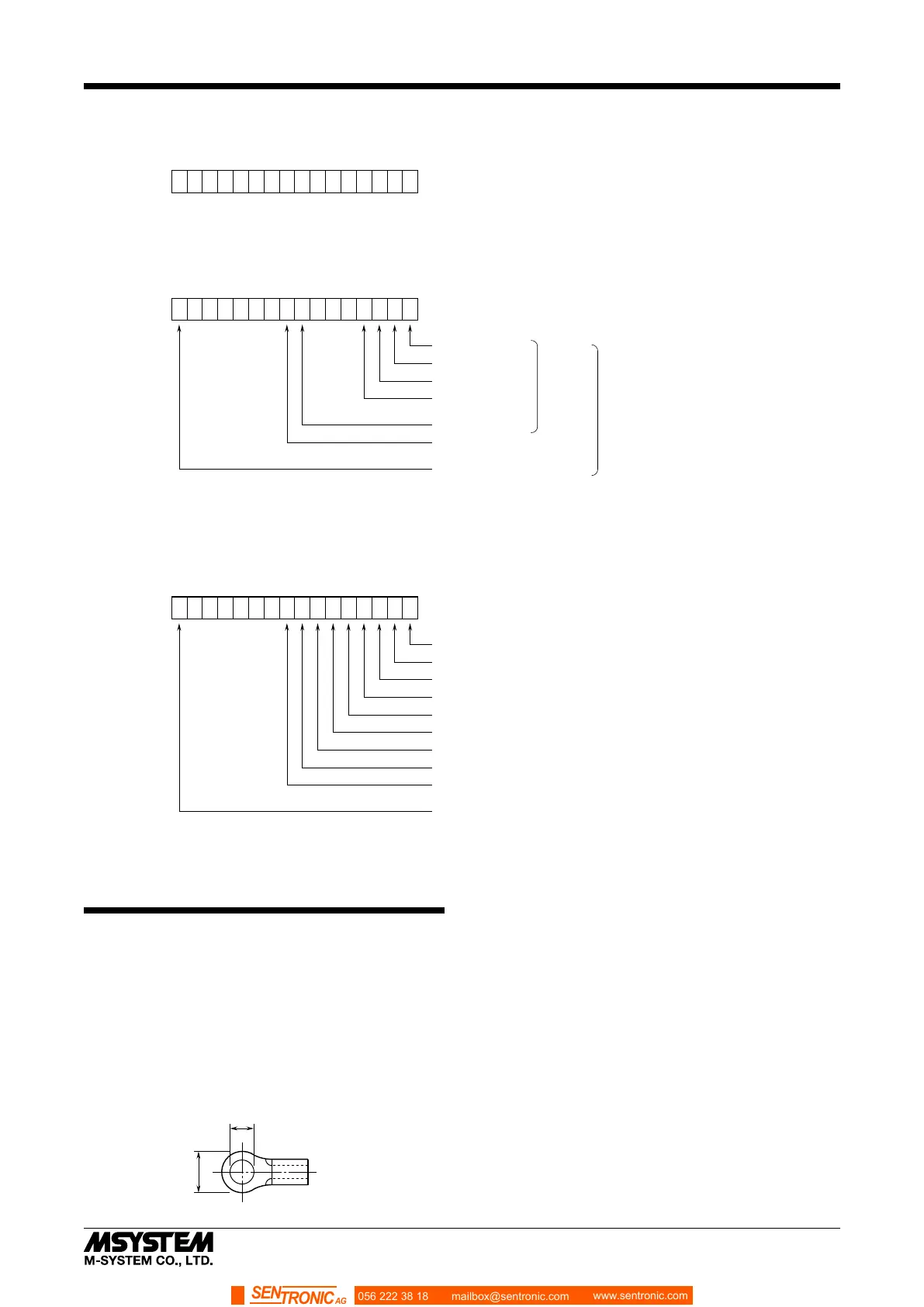

I/O DATA DESCRIPTIONS
0 15
16-bit binary data
Negative values represented in 2’s complements
■ ANALOG INPUT
0 15
Input 0 (Output 0)
Input 1 (Output 1)
Input 2 (Output 2) 8 points
Input 15 (Output 15)
Input 3 (Output 3)
: : 16 points
Input 7 (Output 7)
Input 8 (Output 8)
: :
0 : OFF
1 : ON
■ DISCRETE I/O
0 15
Input 0 (Input range error)
Input 1 (Input range error)
Input 2 (Input range error)
Unused
Input 3 (Input range error)
Input 0 (ADC error)
Input 1 (ADC error)
Input 2 (ADC error)
Input 3 (ADC error)
:
Unused
Input range error (≤ -15%, ≥ +115%)
0 : Normal 1 : Error
ADC error (no response from ADC)
0 : Normal 1 : Error
■ STATUS
Analog input module without extension module can show input status of each channel.
WIRING INSTRUCTIONS
■ SCREW TERMINAL
Torque: 0.5 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Applicable wire size: 0.25 to 1.65 mm
2
(AWG 22 to 16)
Recommended manufacturer: Japan Solderless Terminal
MFG. Co., Ltd, Nichifu Co., Ltd
6 (.24) max
3.3 (.13) max
mm (inch)
