M2I XTOP07TW - Page 8

8

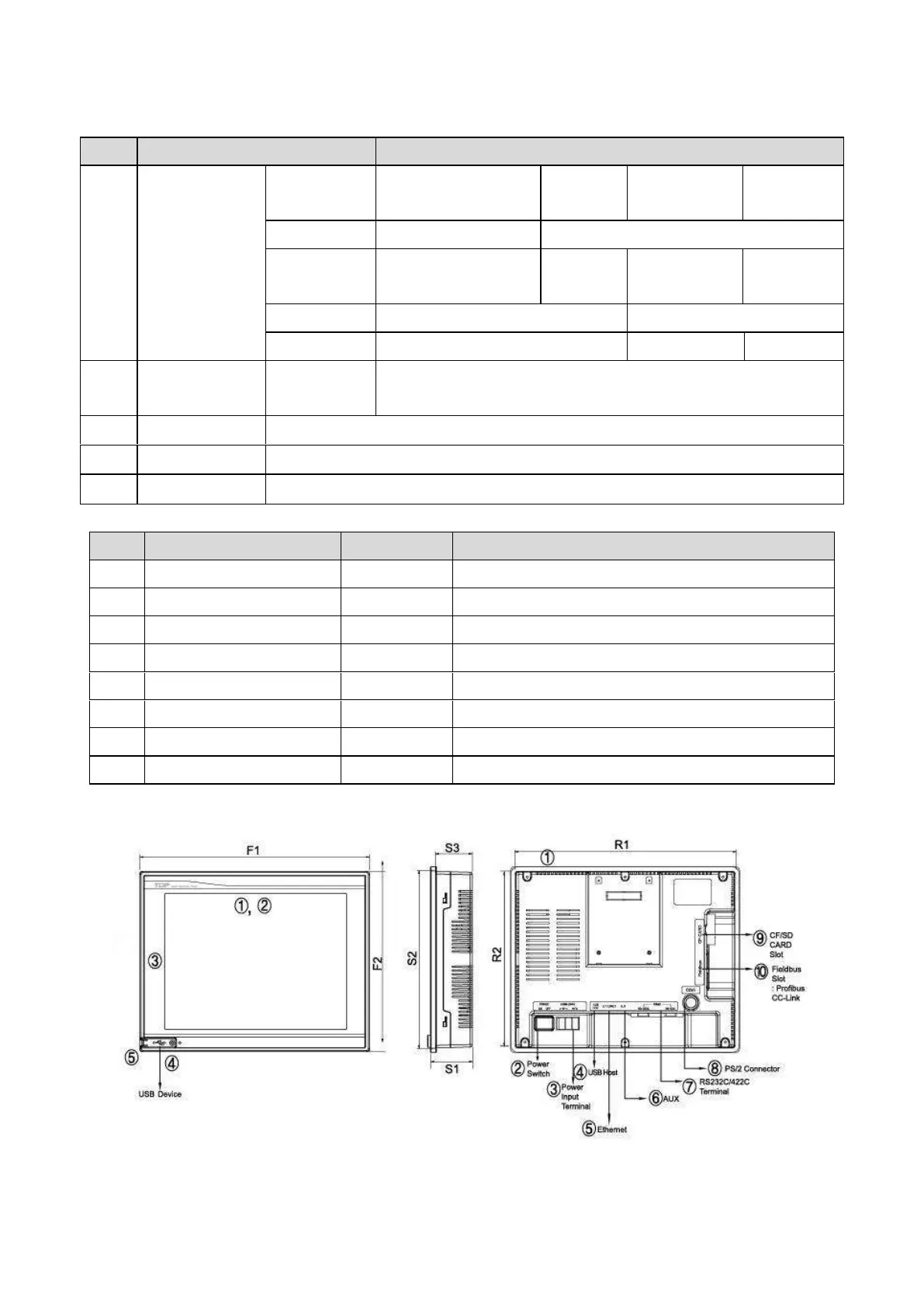

Front Part Names and Specifications
No.
Title
Feature
1
LCD
Model
05MQ
05MQ-E
05TQ-S
05TQ-E
08TV-S
08TV-E
08TS-S
TYPE
STN 16 GLAY MONO
TFT 65536 COLOR
Brightness
260cd/㎡
230cd/㎡
450cd/㎡
400cd/㎡
450cd/㎡
400cd/㎡
350cd/㎡
Screen Size
14cm/5.7 Inch
21cm/8.4 Inch
Resolution
320X240
640X480
800x600
2
Touch
Panel
Touch Type
Analog
3
Front Sheet
Front Vinyl Cover Sheet for Damp Proof and Dust Proof
4
Status LED
Status of Power, Communication and CPU
5
USB Port
USB Download Port
Rear Part Names and Specifications
No.
Title
No. of Pin
Feature
1
Rubber Packing
Shock Absorber for Panel Mounting
2
Power Input Terminal
Input voltage typical 24VDC
3
ETHERNET Connector
Download and ETHERNET Comm. Application
4
USB Connector
USB Connector for USB Storage
5
PS/2 Connector
6
COM1 Serial Comm. for download/upload
6
RS-232/422C Connector
15
COM2 Serial Communication for Comm. with PLC
7
CF-CARD Connector
CF-Card Memory Option Connector
8
Fieldbus Connector
Extension-Card Connector for Fieldbus or CC Link
Note: XTOP05/08 E type have options for above item No. 3,7,8. Please check the details of each model’s specifications.
XTOP10/12/15 SERIES
[Pic1. Front View] [Pic2. Side View] [Pic3. Rear View]
