MAAX 101693 - Shower Parts Identification

6

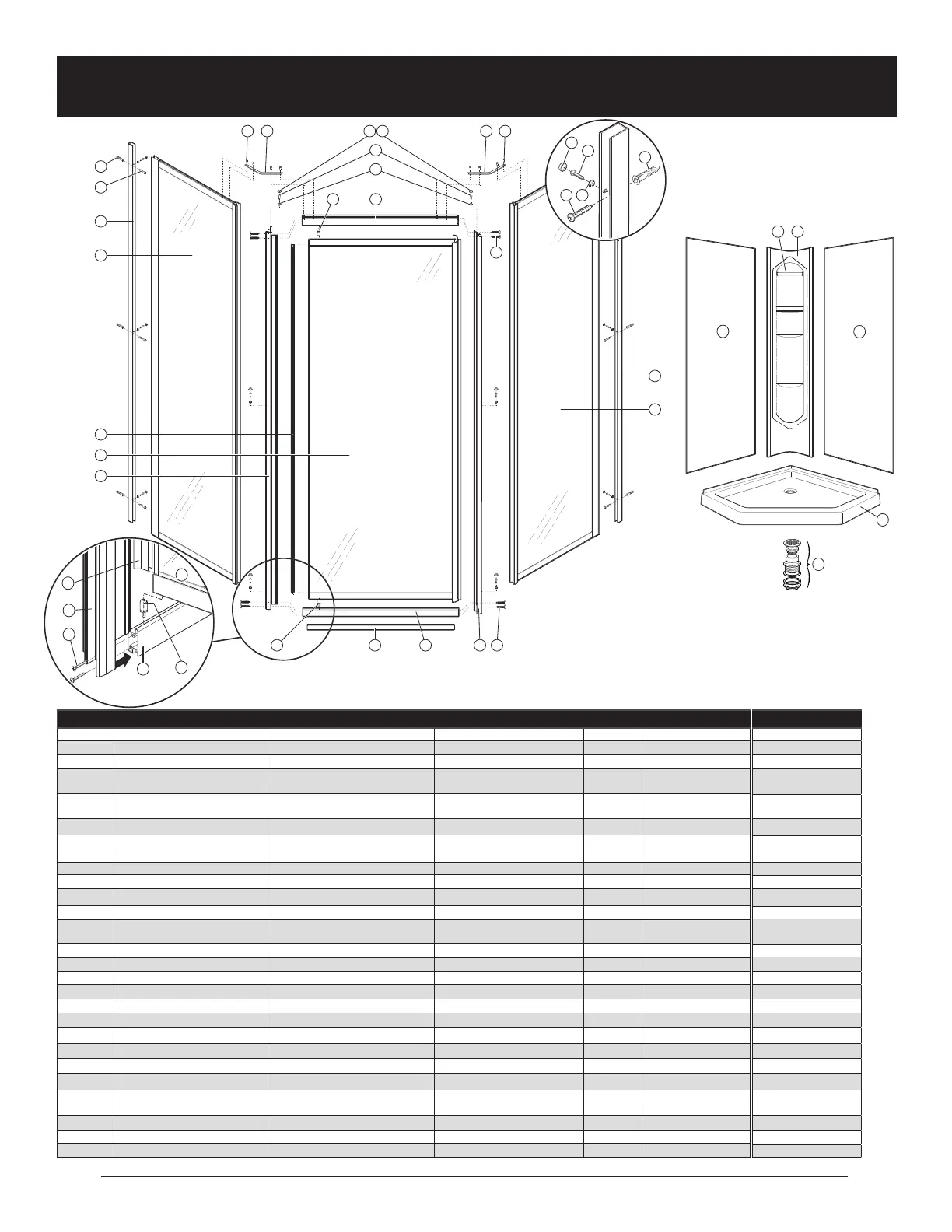

Parts and components • Liste des pièces et composantes
• Piezas y Componentes
13
15
13
4
19
23
22
18
3
19
3
4
2
1
11
10
7 6
18 21
9
12
8
7
23
9
7
10
1
2
232022518
1417
11 8
6
16
24
# Part Nom de la pièce Pieza Qt Cant. Code
1 Wall jamb Montant mural Jamba mural 2 10015574-XXX-001
2 Side panel assembly Panneau latéral Pared lateral 2 10015620-XXX-XXX
3 Door assembly Porte assemblée Puerta montada 1 10015617-XXX-XXX
4
Plastic extruded gasket
63 7/8" (1622 mm)
Joint d'étanchéité
63 7/8" (1622 mm)
Perl de impermeabilidad
63 7/8" (1622 mm)
1 10048380-092-001
5
Plastic drip shield
33" (838 mm)
Déecteur de plastique
33" (838 mm)
Deector plástico
33" (838 mm)
1 10068502-005-001
6* 135° reinforment bracket Renfort 135° Soporte escuadra 135° 2 10042529-084-601
7*
#6 x 3/8" (10 mm) tapping screw
Tek, Pan, Phillips
Vis #6 x 3/8" (10 mm)
taradeuse Tek, Pan, Phillips
Tornillo autotrabador #6 x 3/8"
(10 mm) Tek, Pan, Phillips
12 10047125-084
8* Screw cap receiver Receveur de cache-vis Armella para cubretornillo 12 10002880
9* White screw cap Cache-vis blanc Cubretornillo blanco 12 10048084-003
10* Wall anchor #6-#8 Cheville d'ancrage #6-#8 Anclaje #6-#8 6 10048201
11* #8 x 1" (26 mm) screw Vis à tête bombée #8 x 1" (26 mm) Tornillo #8 x 1" (26 mm) 6 10047010-084
12*
#8 x 5/8 screw Pan Phil A
S/S 18-8
Vis #8 x 5/8 Pan Phil A
S/S 18-8
Tornillo #8 x 5/8 Pan Phil A
S/S 18-8
6 10014391
13 Wall panel Panneau mural Pared de la ducha 2 10015101-129
14 Corner caddy Panneau mural de coin Repisa esquinera 1 10015411-129
15 Base Base Base 1 10015251-001
16 Drain Drain Desagüe 1 1000040
17 Acrylic towel bar Support à serviette en acrylique Toallero en acrílico 1 10014024-092-006
18 Plastic bushing Pivot de plastique Pivote de plástico 2 10048098
19 Joint flange Profilé (côté pivot) Perfil para junta de pivote 1 10041025-XXX-XXX
20 Post striker 45° Profilé (côté aimant) 45° Perl de cierre mágnetico 1 10041027-XXX-XXX
21 Top door sill Seuil du haut de la porte Umbral de arriba de la puerta 1 10041042-XXX-XXX
22 Bottom door sill Seuil du bas de la porte Umbral de abajo de la puerta 1 10041042-XXX-XXX
23*
#6 x 1 1/4" (32 mm) screw
Pan, Qua a S/S 18-8
Vis #6 x 1 1/4" (32 mm)
Pan, Qua a S/S 18-8
Tornillo #6 x 1 1/4 (32 mm)
Pan, Qua a S/S 18-8
8 10002962
(*) Hardware bag Sac à quincaillerie Bolsa con ferretería 1 10015619
Hardware bag (screw) Sac à quincaillerie (vis) Bolsa con tornillos 1 10015618
24 Black screw cap Cache-vis noir Cubretornillo negro 12 10048075-015
Code
10015574-XXX-002
10093663-XXX-XXX
10093664-XXX-XXX
10048380-092-002
10068502-005-001
10042529-084-601
10047125-084
10002880
10048084-003
10048201
10047010-084
10014391
10014828-129
10014827-129
10015251-001
1000040
10014024-092-006
10048098
10041025-XXX-XXX
10041027-XXX-XXX
10041042-XXX-XXX
10041042-XXX-XXX
10002962
10015619
10015618
10048075-015
XXX 084=Chrome, Cromo
305=Brushed nickel, Nickel brossé, Níquel cepillado
173=Dark bronze, Bronze foncé, Bronce oscuro
340=Matte black, Noir mat, Negro mate
101693-101694
(74)
106009-106010
300006-300022
(77)
