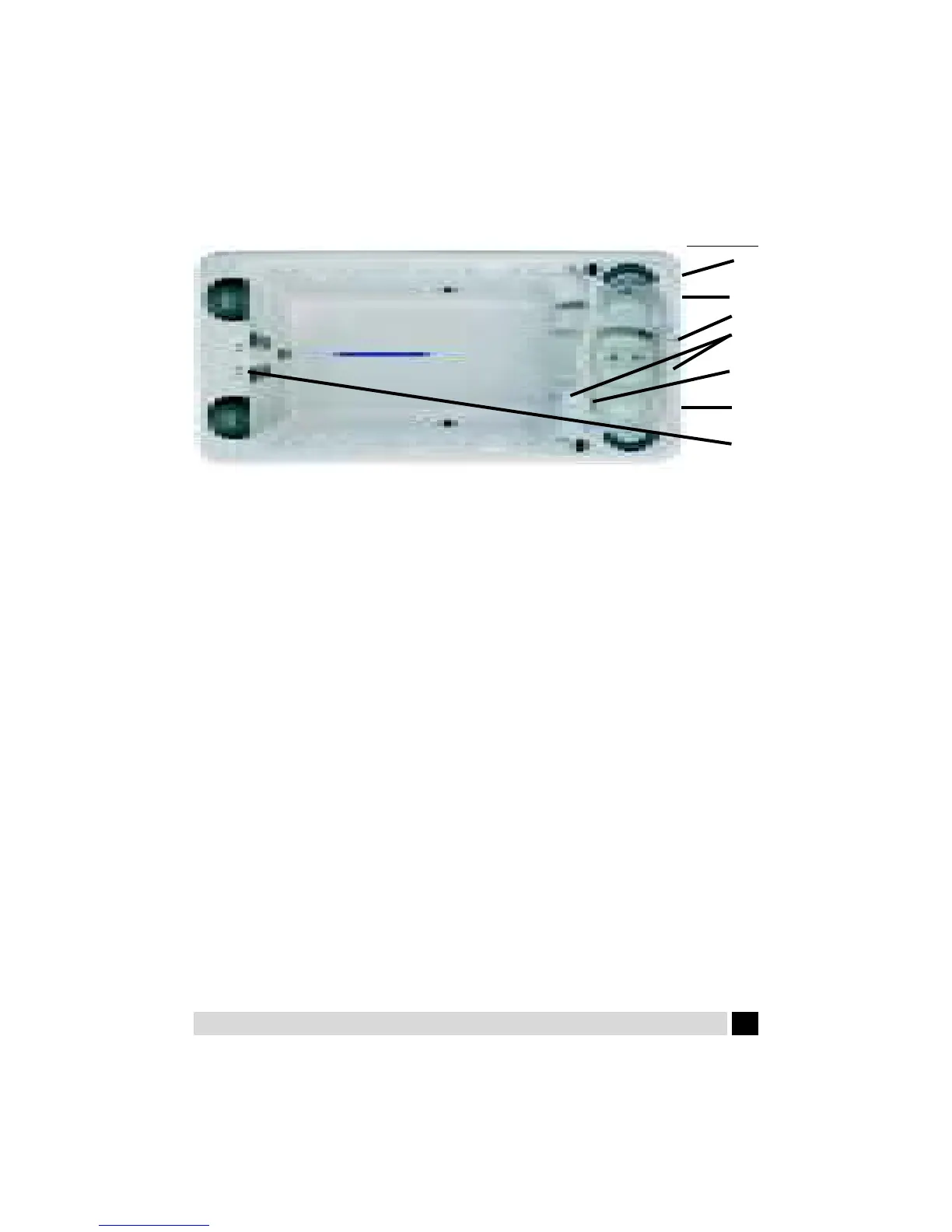

SWIM SPA SYSTEM COMPONENTS
A. Filter Skimmer/Weir Door: Removes
 oating debris from the water surface,
provides a water return path to equipment,
and houses water  lter elements.
Swim Spa Pro and Pro models utilize
2 Filter Skimmers and the Swim Spa
Duo-Pro model utilizes 3 Filter Skimmers.
B. Topside Control Panel: Used to control
temperature setting, jet pumps, circulation
system, underwater lights and ambient
e ect lighting. Swim Spa Lounge and Pro
models utilize one topside control panel.
The Swim Spa Duo-Pro model utilizes
two topside control panels, one for the hot
tub portion and one for the swim area.
C. Air Controls: Increases or decreases air
entering the jets. Close during heating
for maximum e ciency. It is recom-
mended that air controls to the Turbo
Swim jets remain closed during
swimming to provide a clearer stream of
water which is free from air bubbles.
D. Equipment Pack Service Panel (no user
serviceable parts): Spa support system
consisting of electronic control pack,
pumps, heater, UV water sanitizer, plasma
UV ozone generator, LED lighting interface
and associated electrical controls (not
shown). The Swim Spa Lounge and
Pro models feature one control pack,
three jet pumps, one UV sanitizer, one
plasma UV ozone generator and one LED
lighting interface. The Swim Spa
Duo-Pro model features two independent
electronic control packs, four jet pumps,
two UV sanitizers, two plasma UV ozone
generators and two LED lighting interfaces.
E. Drain Access (Adjacent to the equipment
service panel): Swim Spa drain faucets
are located immediately behind the front
door panel. Remove panel to access.
F. Manufacturer’s Identi cation Label:
Contains identi cation information for
warranty service (serial number, model
number, etc.) and electrical information
(ampere rating and ampere requirements).
Located on the lower right side of the front
door panel.
G. Diverter Valve: Used to direct the  ow
of water between the massage jets in
the hydrotherapy seats and the swim
jets. By turning the diverter valve
clockwise, the water is directed to the
massage jets in the hydrotherapy seats and
by turning the diverter jet counterclockwise,
the water is directed to the swim jets.
F
D
G
B
A
E
C
