mabe MMI09CDBWCCCHI8 - Electric Wiring Diagrams

89
Indoor Unit Outdoor Unit
Terminal
Brown
Blue
1(L)
2(N)
3
4(SI)
Power
cord
Black
Yellow/Green
Brown
Blue
Black
Yellow/Green
Evaporator
Yellow/Green
Indoor unit
control board
Power Supply
BN
RY1 ACIN-L
CN10 ACIN-N
BU
Terminal Terminal Terminal
1(N)
2(L)
3(SI)
Brown
Blue
Black
Yellow/Green
Cordón
elécrico
Evaporator
Yellow/Green
Power Supply
BN
AC L-IN
AC N-IN
BU
Brown
Blue/Gray
Black
Yellow/Green
1(N)
2(L)
3(SI)
Indoor Unit Outdoor Unit
Indoor unit
control board

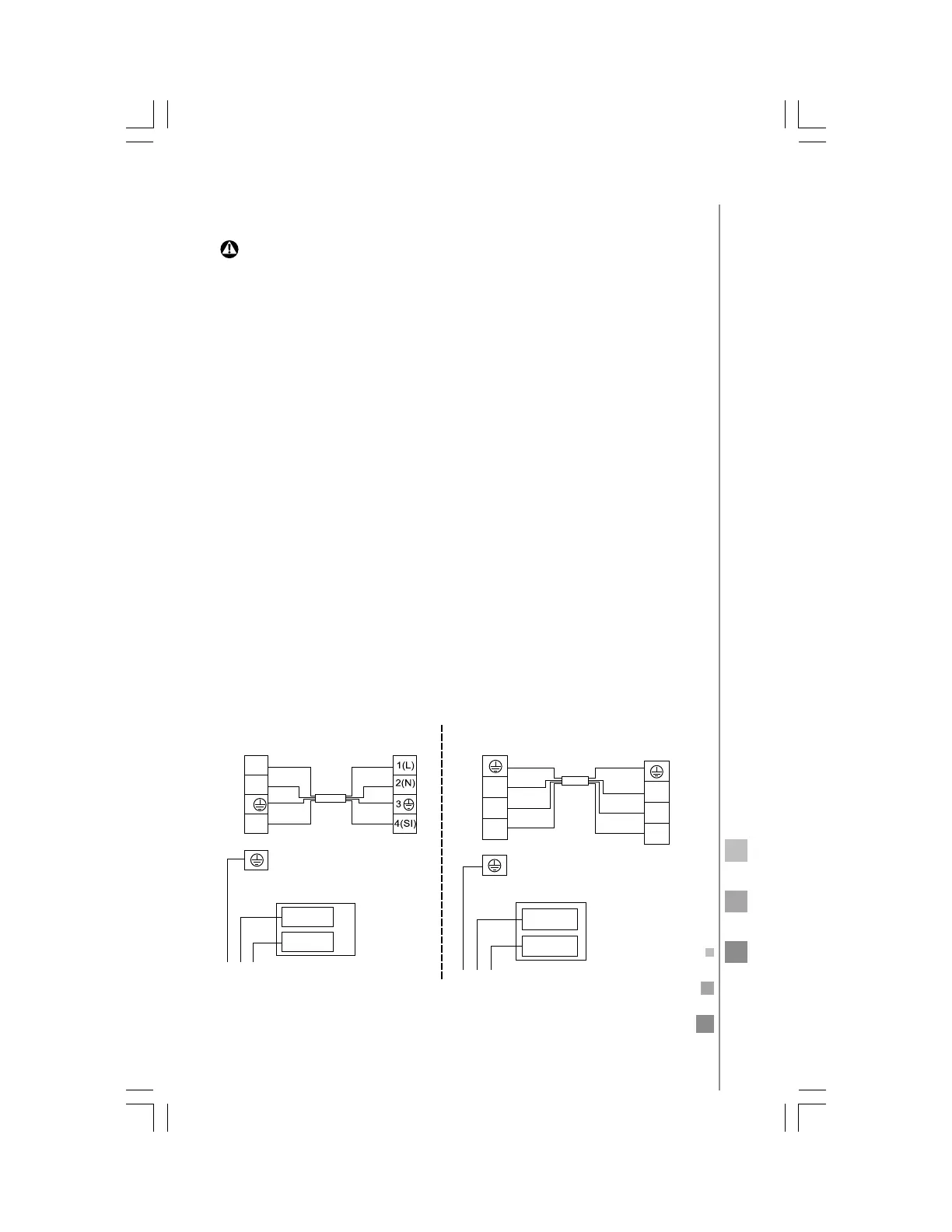

electric wiring diagrams
WARNINGS:
• BEFORE OBTAINING ACCESS TO THE TERMI-
NALS, ALL SUPPLY CIRCUITS MUST BE DISCON-
NECTED.
• MAKE SURE THAT THE COLORS OF THE CABLES
IN THE EXTERNAL UNIT AS WELL AS THE NUM-
BERS OF THE TERMINALS ARE THE SAME AS
THOSE IN THE INTERNAL UNIT.
• FOR MODELS MARKED WITH A SINGLE ASTER-
ISK (*) AND TWO ASTERISKS (**), THE POWER
SUPPLY IS CONNECTED TO THE INTERNAL UNIT
USING A CIRCUIT BREAKER.
WIRING DIAGRAMS ARE A REFERENCE ONLY.
7000* TO 12000* BTU/h Models
