Getting
started...
MLM1737
by MacAllister

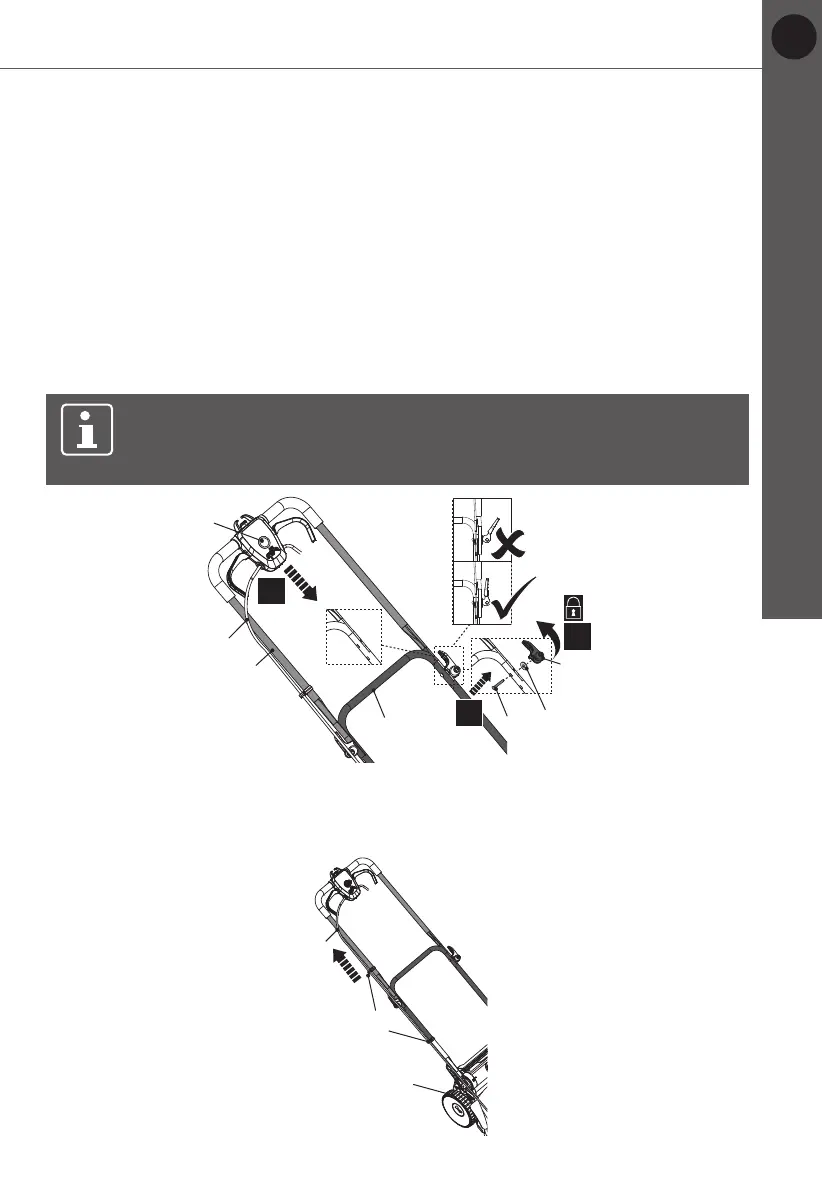

4. Hold the upper handle bar (5) with the safety switch button (2) facing upwards.
Align the mounting holes of the upper handle bar (5) and the lower handle
bars (7) (Fig. 3, step 1).
5. Pass the mounting bolt (6b) through the mounting holes to the end (Fig. 3,
step 2).
6. Attach the washer (6a) and screw in the clamp lever (6) clockwise through
the thread of the mounting bolt (6b), lock it by folding up the clamp lever
(6) towards the handle. If clamp lever (6) cannot be folded, loosen it and
fold again. If it is too loose, tighten it by swinging the clamp lever (6)
(Fig. 3, step 3).
7. Do it again on the other side. Make sure that the interconnection cord (16) run
on the upper side of the handle bars (5, 7).
8. Secure the inter-connection cord (16) with two wire clips (17) (Fig. 4). Pull
the inter-connection cord (16) to avoid contact with the rear wheel (10) if
necessary.
NOTE:
There are two handle height positions in the lower handle bar (7).
Ensure the upper handle bar (5) is assembled on the same height level
on both lower handle bar (7).
Before you start
5
16
2
6b
7
6a
6
1.
2.
3.
Fig. 3
17
10
16
Fig. 4
