3

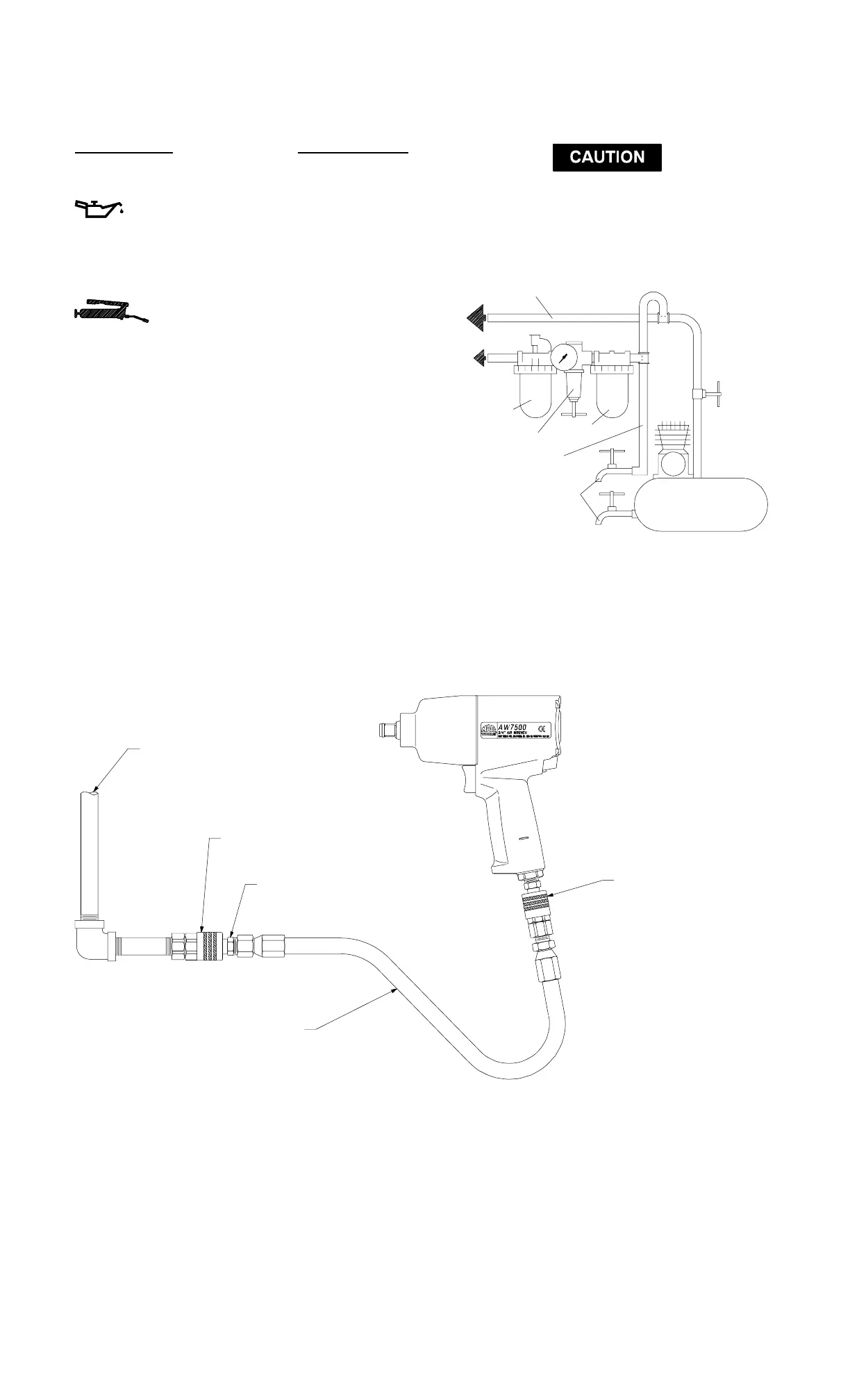

PLACING TOOL IN SERVICE
LUBRICATION
Mac Tools Pneumatic Oil
Mac Tools Pneumatic Grease for routine external
lubrication of the impact mechanism through the Hammer
Case Grease Fitting.
Mac Tools Pneumatic Grease when disassembling and
assembling the impact mechanism.
Always use an air line lubricator with these tools.
We recommend the following Filter–Lubricator–Regulator
Unit:
For USA – No. C18–03–FKG0–28
For International – C18–C3–FKG0
Do not mark any nonmetallic surface on this tool with
customer identification codes. Such actions could affect
tool performance.
MAIN LINES 3 TIMES
AIR TOOL INLET SIZE
TO
AIR
SYSTEM
TO
AIR
TOOL
LUBRICATOR
REGULATOR
FILTER
BRANCH LINE 2 TIMES
AIR TOOL INLET SIZE
DRAIN REGULARLY
COMPRESSOR
(Dwg. TPD905–1)
(Dwg. TPA1814)
AIR SUPPLY
(FROM COMPRESSOR)
1/2” COUPLER OR LARGER
MALE
FEMALE
1/2” COUPLER OR LARGER
1/2” AIR HOSE
WITH 3/8” NPT FITTINGS
