31
MAINTENANCE INSTRUCTIONS
SECTION D’ENTRETIEN
WARTUNG
SEZIONE DI MANUTENZIONE
INSTRUCCIONES DE MANTENIMIENTO
ONDERHOUD

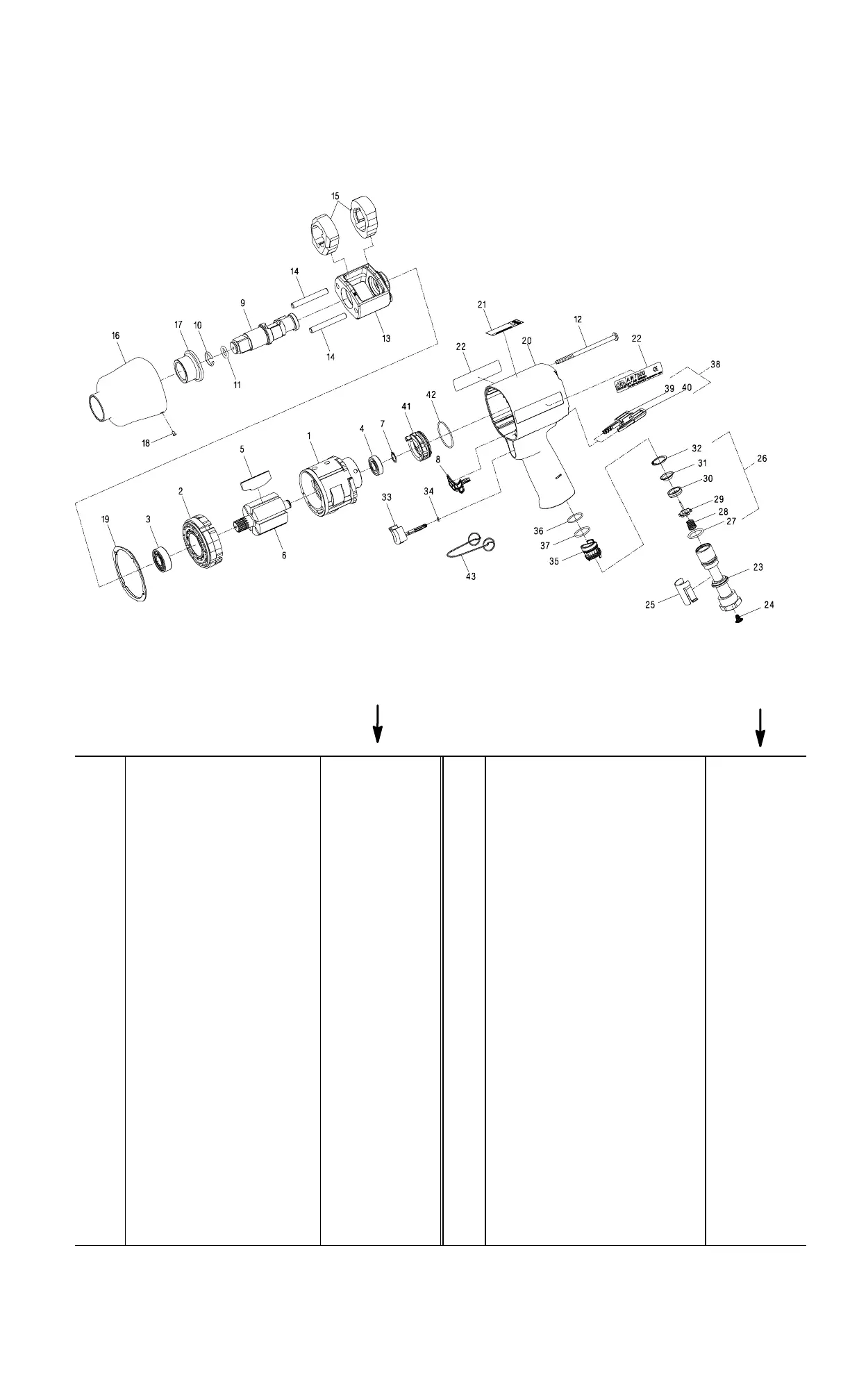

(TPA1816)
PART NUMBER FOR ORDERING
REFERENCE POUR COMMANDE DE LA PIECE
BESTELLNUMMER
NUMERO DEL PEZZO PER L’ORDINAZIONE
SIMBOLO DE LA PIEZA PARA PEDIDOS
BESTELNUMMERS
1 Cylinder . . . . . . . . . . . . . . . . . . 2141–3 26 Inlet Parts Kit . . . . . . . . . . . . . . . 2141–K303
2 Front End Plate . . . . . . . . . . . . 2141–11 27 Inlet Bushing Seal . . . . . . . . R4–210
3 Front Rotor Bearing . . . . . . . . R38P–606 28 Tilt Valve Spring . . . . . . . . . 2131–51
4 Rear Rotor Bearing . . . . . . . . . 2131–97 29 Tilt Valve . . . . . . . . . . . . . . . 2141–302
• 5 Vane Packet (set of 30 Tilt Valve Seat . . . . . . . . . . . 2141–303
6 Vanes) . . . . . . . . . . . . . . . . . . 2141–42–6 31 Tilt Valve Seat Support . . . . 2141–306
6 Rotor . . . . . . . . . . . . . . . . . . . . 2141–53 32 Tilt Valve Seat Retainter . . . SML8–24
7 Rear Rotor Bearing Retainer . . 2131–6 • 33 Trigger Assembly . . . . . . . . . . . . . . 2141–A93
• 8 Motor Gasket . . . . . . . . . . . . . . 2141–283 34 Trigger O–ring . . . . . . . . . . . . . . –––––––––
9 Anvil Assembly . . . . . . . . . . . . 2141–A626 35 Reverse Valve Assembly . . . . . . . . . 2141–A329
• 10 Socket Retainer . . . . . . . . . 908B5–918 36 Reverse Valve O–ring (top) . . . . –––––––––
• 11 Socket Retainer O–ring . . . AF120–289 37 Reverse Valve O–ring
12 Hammer Case Screw (4) . . . . . 2141–638 (bottom) (blue) . . . . . . . . . . . . . . –––––––––
Hammer Frame Assembly . . . . 2141–A703 38 Button Kit . . . . . . . . . . . . . . . . . . . . AW7500–K75
13 Hammer Frame . . . . . . . . . 2141–703 39 Forward Button . . . . . . . . . . . . . AW7500–75
14 Hammer Pin (2) . . . . . . . . . 2141–704 40 Reverse Button . . . . . . . . . . . . . . AW7500–76
15 Hammer (2) . . . . . . . . . . . . . . . 2141–724 41 Power Management Dial . . . . . . . . . 2131–A249
16 Hammer Case Assembly . . . . . 2141–A727 42 Power Management Dial Seal . . –––––––––
17 Hammer Case Bushing . . . 2141–641 43 Inlet Clip Removal Tool . . . . . . . . . 2131–322
18 Grease Fitting . . . . . . . . . . . D0F9–879 * Grease (1 lb) (for external lubrica-
• 19 Hammer Case Gasket . . . . . . . AW7500–36 tion of the impact mechanism) . . . . 115–1LB
20 Housing Assembly . . . . . . . . . . AW7500–B40 * Grease (for lubrication when
21 Warning Label . . . . . . . . . . WARNING–2–99 disassembling and assembling
22 Nameplate (2) . . . . . . . . . . . . . AW7500–301 the impact mechanism)
Inlet Bushing Assembly . . . . . . 2141–D565 1 lb . . . . . . . . . . . . . . . . . . . . 105–1LB
23 Inlet Bushing . . . . . . . . . . . 2141–565 8 lb . . . . . . . . . . . . . . . . . . . . 105–8LB
24 Inlet Bushing Screen . . 5RA–61 * Grease Gun . . . . . . . . . . . . . . . . . . . R000A2–228
25 Inlet Retainer Clip . . . . . . . 2141–57
* Not illustrated.
• To keep downtime to a minimum, it is desirable to have on hand certain repair parts. We recommend that you stock one
(pair or set) of each part indicated by a Bullet (•) for every four tools in service.
