OM-210 089 Page 11

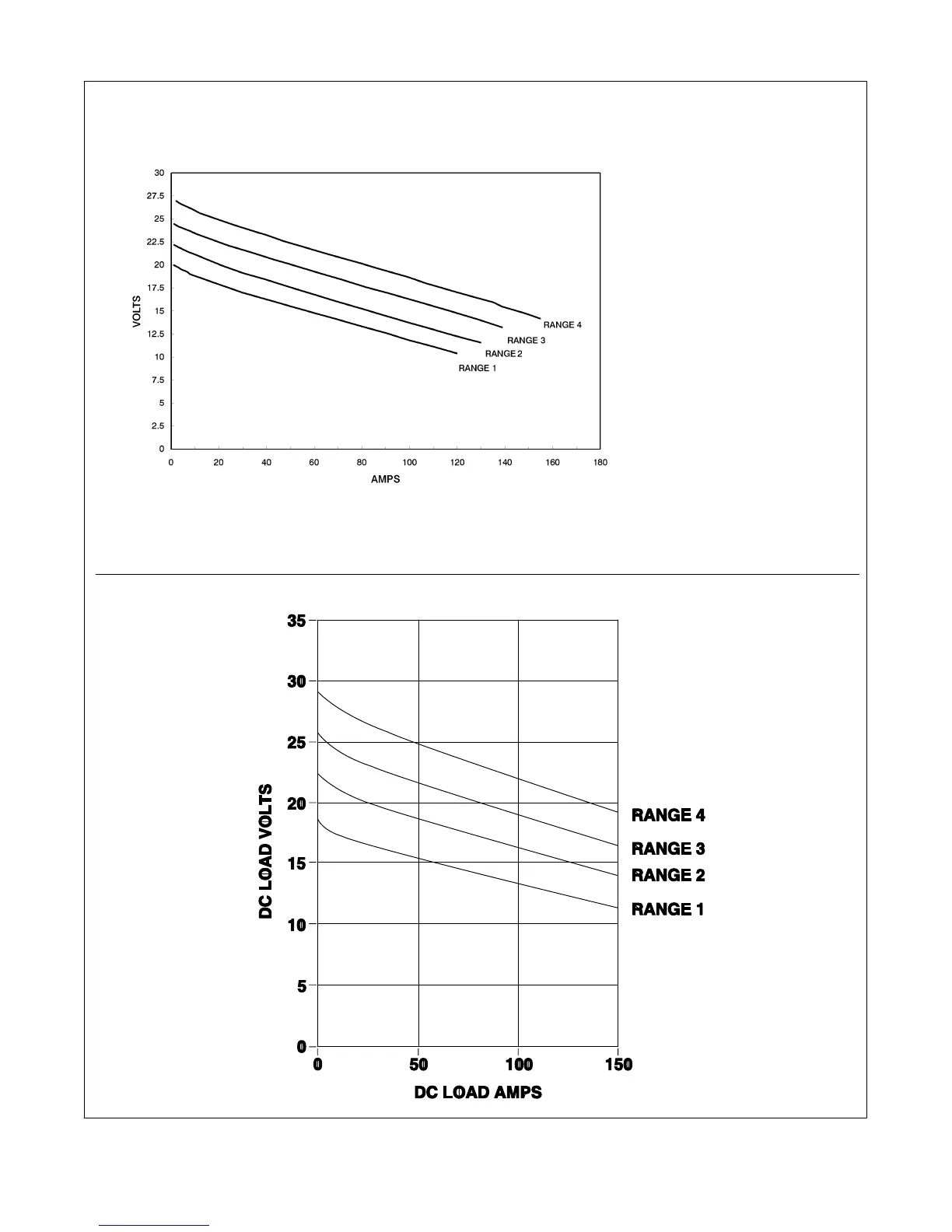

2-3. Volt-Ampere Curves
The volt-ampere curves show the
minimum and maximum voltage
and amperage output capabilities
of the welding power source.
Curves of other settings fall be-
tween the curves shown.
ssb1.1 10/91 − ST-802 082 / ST-802 089
A. 120 VAC Model
B. 230 VAC Model
