OM-154 500 Page 15
Parts For Main Assembly
NOTE: All items indented by a dot(s) are included with the item listed directly above.
Description
Part
No.
Item
No.
Part
No.
Item
No. Description
Part
No.
Item
No. Description
1 089 899 Latch
2 134 464 Warning Label
3 +151 565 Wrapper
126 838 Drive Assembly
4 124 817 · Drive Housing
5 090 416 · Hinge Pin
6 151 828 · Cotter Hair Pin
7 112 031 · Pressure Lever
8 090 443 · Bearing
111 622 · · Spacer
9 092 237 · Knob
10 090 415 · Spring
11 085 244 · Cupped Washer
12 085 242 · Fastener
13 010 224 · Spring Pin
14 058 549 · Wire Guide
15 126 652 Knob
16 149 332 Hose Clamp
17 134 834 Hose
18 154 828 Drive Roll
19 126 653 Nyl Washer
20 111 912 Insulator
21 147 573 Bracket
22 126 651 Nyl Shldr Washer
23 048 573 Light
24 058 428 Hub
25 057 745 Spring
26 058 628 Brake Washer
27 010 191 Fiber Washer
28 057 971 Keyed Washer
29 057 543 Spring
30 605 941 Washer
31 058 427 Retaining Ring
32 085 980 Nut
33 134 201 Stand-Off Support
34 057 358 Bushing
35 147 569 Baffle
36 108 358 Contactor
37 157 044 Circuit Card
38 *125 847 · Fuse, slo-blo 12A
113 149 Housing, 14 pin
079 747 Terminal
39 072 817 Relay
40 087 156 Varistor
41 155 056 Rectifier
155 054 · Thermostat, NC
026 701 · Insulation
42 152 214 Terminal Assembly
038 618 · Link
43 090 087 Drive Motor
44 112 583 Insulator
45 123 770 Resistor Assembly
117 116 · Resistor
46 162 245 Capacitor
47 022 160 Clamp
48 Base w/Running Gear
152 872 · Base
147 893 · Axle
090 693 · Wheel, 8 in
602 250 · Washer, .750 flat
121 614 · Retaining Ring
109 318 · Caster, 2.500
49 117 014 Fan Motor
50 005 656 Fan Blade
51 147 572 Bracket
52 Rear Panel w/Cmpts
128 751 · Gas Valve
605 227 · Nyl Nut, gas valve
152 118 · Cord Set
111 443 · Bushing, cord set
147 443 · Rear Panel
146 619 · Bezel
147 548 · Speed Nut
156 339 · Bottle Retainer
602 389 · S Hook
156 340 · Chain
602 384 · Snap, chain
53 147 315 Stabilizer
54 147 313 Transformer
146 943 · Coil
55 147 576 Lower Panel
56 Front Panel w/Cmpts
072 623 · Potentiometer
097 922 · Knob
048 482 · Receptacle w/Sockets
079 534 · · Terminal
111 897 · Rotary Switch, 4posn
127 023 · · Knob
116 830 · Rocker Switch, DPST
147 442 · Front Panel
146 619 · Bezel
147 548 · Speed Nut
154 005 · Handle
154 596 · Cap, Handle
153 448 · Nameplate
004 214 · Bushing, 2.000mtg
111 644 · Bushing, .875mtg
57 600 325 Cable
58 026 843 Insulator
59 010 368 Clamp
60 110 720 GA-16C Gun, (Fig 6-2)
153 714 Regulator/Flowmeter
154 829 Hose Kit
112 863 · Adapter Fitting
113 129 · PVC Tubing
089 120 · Hose Clamp, .375–.450
028 509 Regulator Adapter
+When ordering a component originally dis-
playing a precautionary label, the label should
also be ordered.
*Recommended Spare Parts.
Be sure to provide Model and Serial Number
when ordering replacement parts.
ST-110 832-D
1 110 793 Handle Assembly
110 795 Head Tube
2 110 780 · Nut
3 110 779 · Jacket
4 110 781 · Stop
5 128 878 · Adapter
6 154 819 · Spring
7 154 826 Contact Tube, .023
7 154 825 Contact Tube, .030
7 154 824 Contact Tube, .035
8 154 822 Nozzle, 1/2 orf
8 ♦154 821 Nozzle, 3/8 orf
8 ♦154 820 Nozzle, flat spot
9 110 794 Trigger Switch Assembly
10 080 565 Terminal
11 110 792 Cable
12 110 797 Sleeve
13 167 440 Liner, .023-.035
14 120 715 · Collet, .035
15 079 974 O-Ring, .500
16 110 796 Connector
17 079 878 Housing Plug & Pins
079 535 · Terminal
18 048 834 Clamp
♦OPTIONAL
Part
No.
Item
No. Description
1
2
3
4
5
6
7
8
9
1
10
1
11
12
13
14
15
16
17
18
2

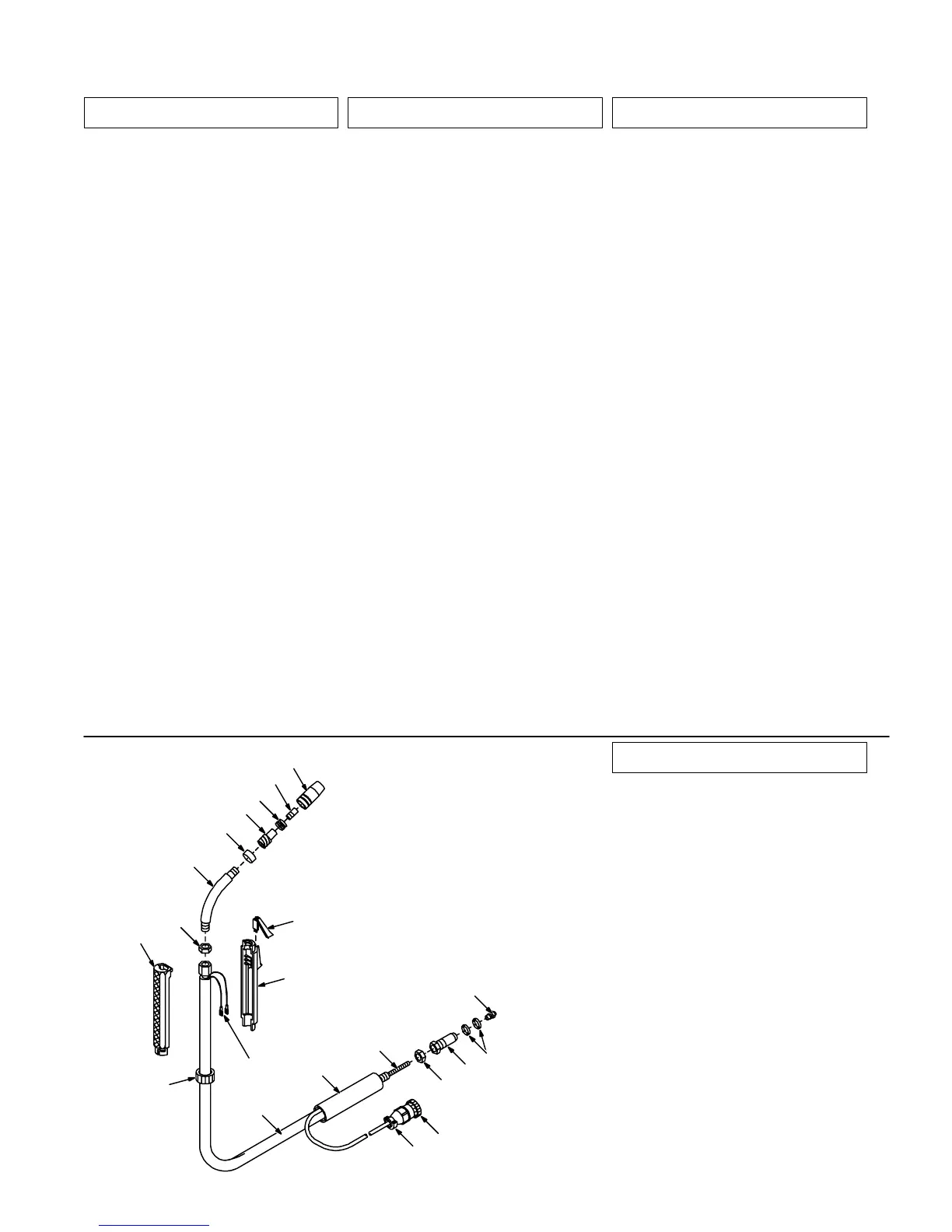

Figure 6-2. GA-16C Gun (Fig 6-1 Item 60)
