ASSEMBLY
Swath Roller

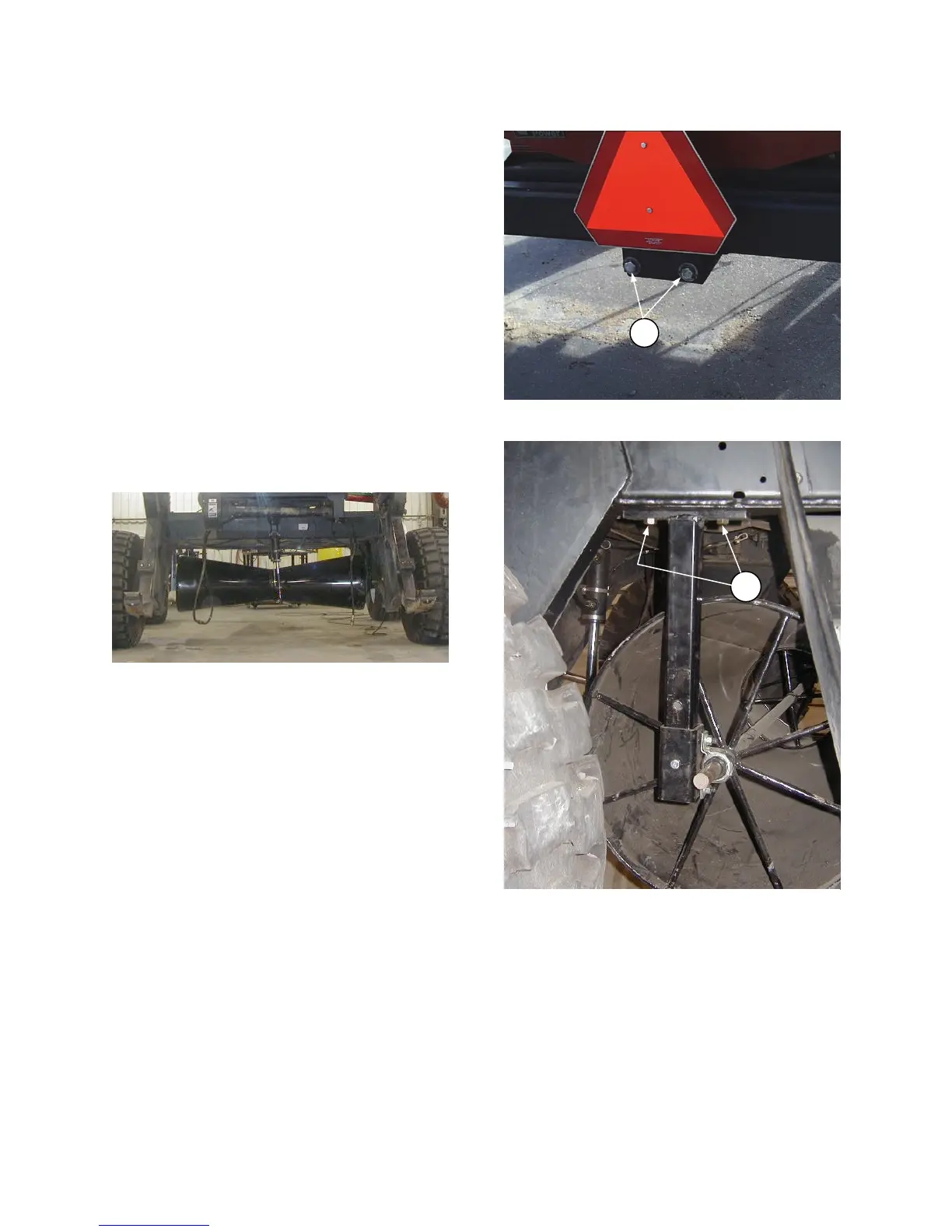

A hitch for a pull-behind swath roller can be
attached at two bottom bolts (A) on walking beam
pivot plate.
A direct mounted swath roller can be installed at
holes provided in frame at (B).
A
ATTACH SWATH ROLLER HITCH HERE
B
FRAME-MOUNTED SWATH ROLLER
