MacDon 9250 - Fuel Sediment Bowl; Fuel Water Separator

Form # 46584 Issue 11/06 Web Rev_01
72
MAINTENANCE/SERVICE
Diesel Engine: Fuel System

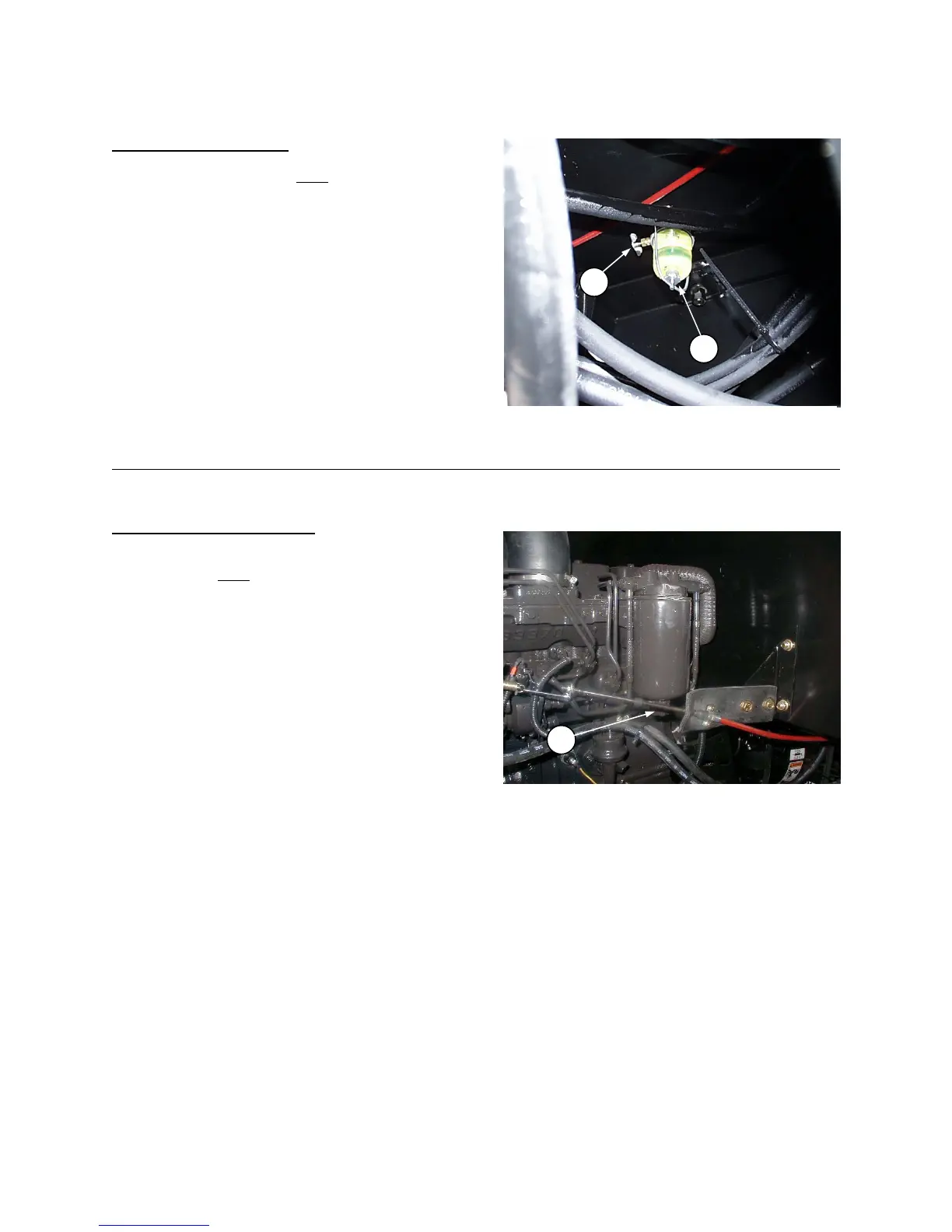

FUEL SEDIMENT BOWL
Inspect fuel sediment bowl daily
for water or other
contaminants. Bowl is located under tank. Clean
as required.
To clean:
1. Close valve (A) to shut off fuel.
2. Loosen nut (B) and remove bowl.
3. Clean bowl and mesh screen in head.
4. Replace bowl and open valve (A).
FUEL/WATER SEPARATOR
Drain the water and sediment from the separator
at the fuel filter daily
, as follows:
1. Shut off engine.
2. Open the drain valve (A) by hand, 1½ to 2 turns
counter-clockwise until draining occurs.
3. Drain the filter sump of water until clear fuel is
visible.
4. IMPORTANT: Do not over-tighten valve.
Damage to threads may result.
Turn the valve clockwise to close the drain
valve.
A
B
FUEL SEDIMENT BOWL
FUEL/WATER SEPARATOR
(2005 - Naturally Aspirated Tractor Shown)
A
