Daisy-Chaining Multiple DRM18S Subwoofers
Hookup Diagrams continued...

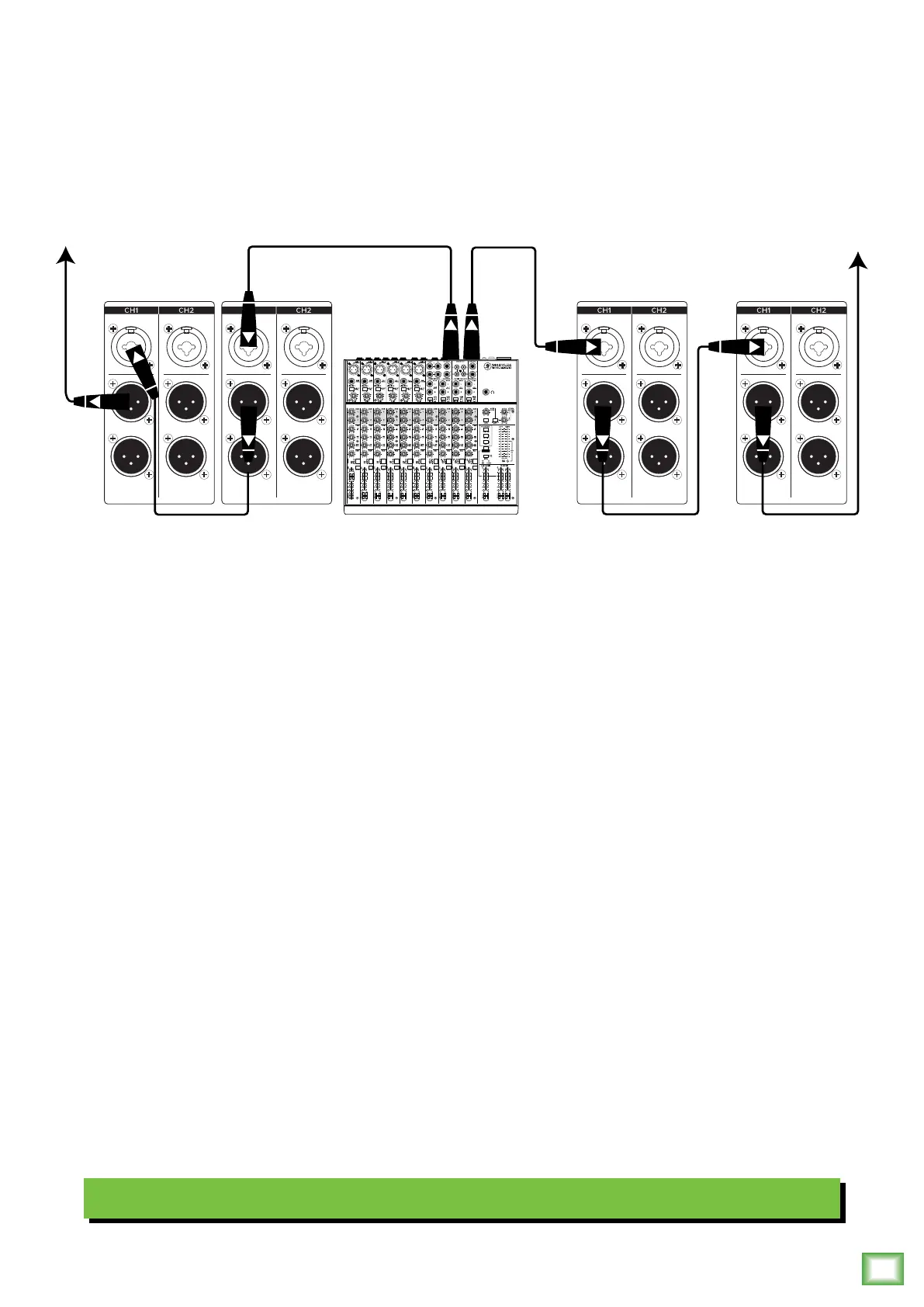

DRM8S subwoofers may be daisy-chained via the male XLR connector labeled “DIRECT OUT”. Simply plug the signal source
(i.e., mixer output) into the ch.  input jack(s), and patch that subwoofer’s direct out jack to the next subwoofer’s input jack,
and so on, daisy-chaining multiple DRM8S subwoofers. See above for visual representations of daisy-chaining.
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
INPUT
DIRECT OUT
INPUT
DIRECT OUT
HIGH-PASS OUT HIGH-PASS OUT
1402VLZ4 Mixer
To next DRM18S
subwoofer input
To next DRM18S
subwoofer input
Main
Outs
