Mackie HD1501 - Hookup Diagrams

HD1501: 3-WAY MONO SUB SYSTEM WITH SRM450V2 LOUDSPEAKERS
Hookup Diagrams
MON
MAIN
43215/6 7/89/10 11/12
SRM450v2
reproduces all
frequencies
above the
subwoofer’s
crossover point
Left
line level
output
Right
line level
output
Po wer
Cord
Line-level
High Pass
output B
SRM450v2
reproduces all
frequencies
above the
subwoofer’s
crossover point
Po wer
Cord
Line-level
High Pass
output A
HD1501
input A
HD1501
input B
Po wer
Cord
HD1501 subwoofer
reproduces the low
frequencies
ProFX12 Mixer

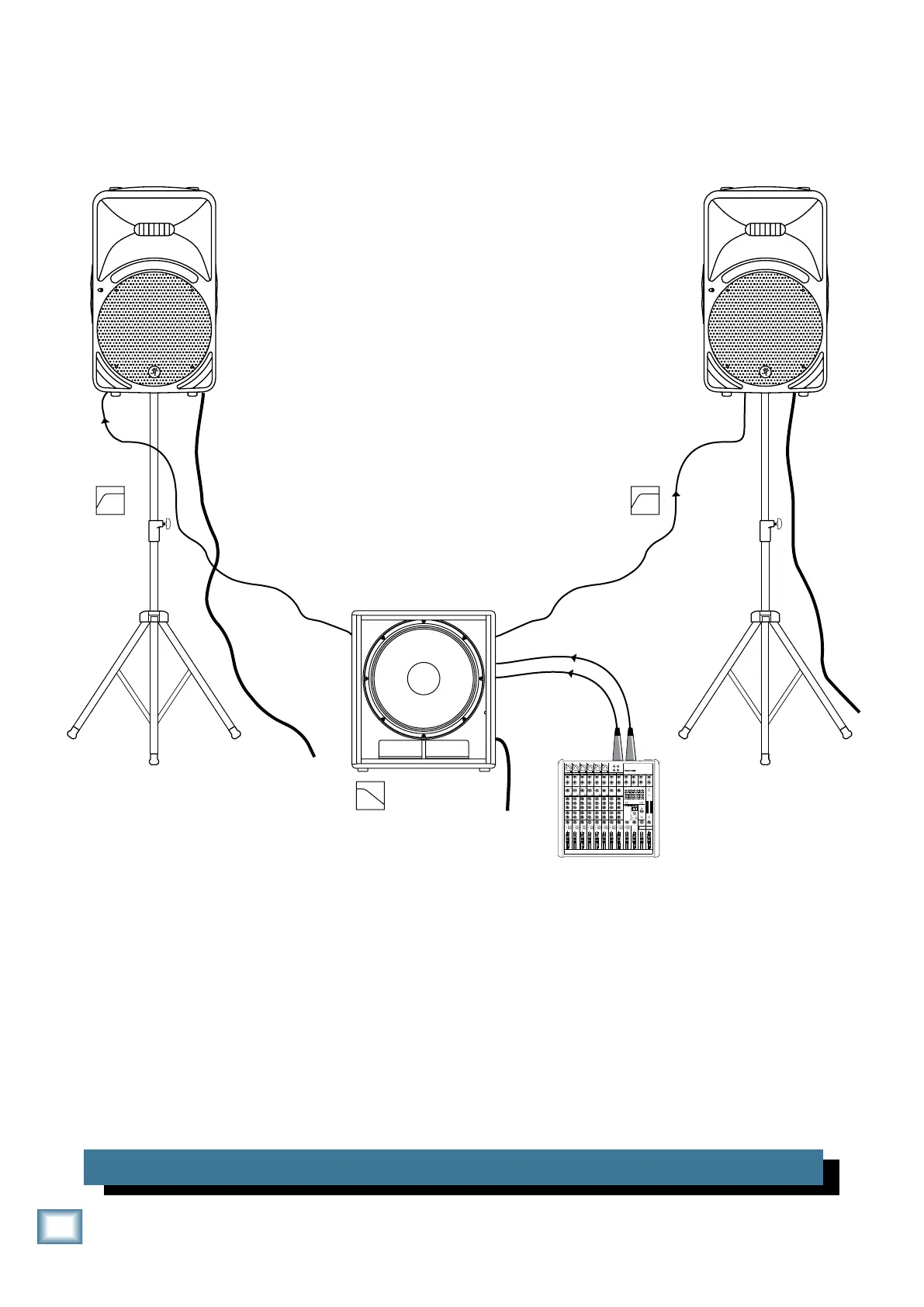

This diagram shows the left line level output of a Mackie ProFX12 mixer feeding inputs A and B of one
Mackie HD1501 subwoofer. Two SRM450v2 powered loudspeaker inputs are fed from the A and B High
Pass outputs from the subwoofer. Experiment with the HD1501’s polarity switch to achieve optimum
performance. Placement of the subwoofer relative to the full-range loudspeakers will also affect
performance. See page 10 for more information.
4
HD1501
HD1501
