MDB-USB Stereo Direct Box
4
MDB-USB Stereo Direct Box

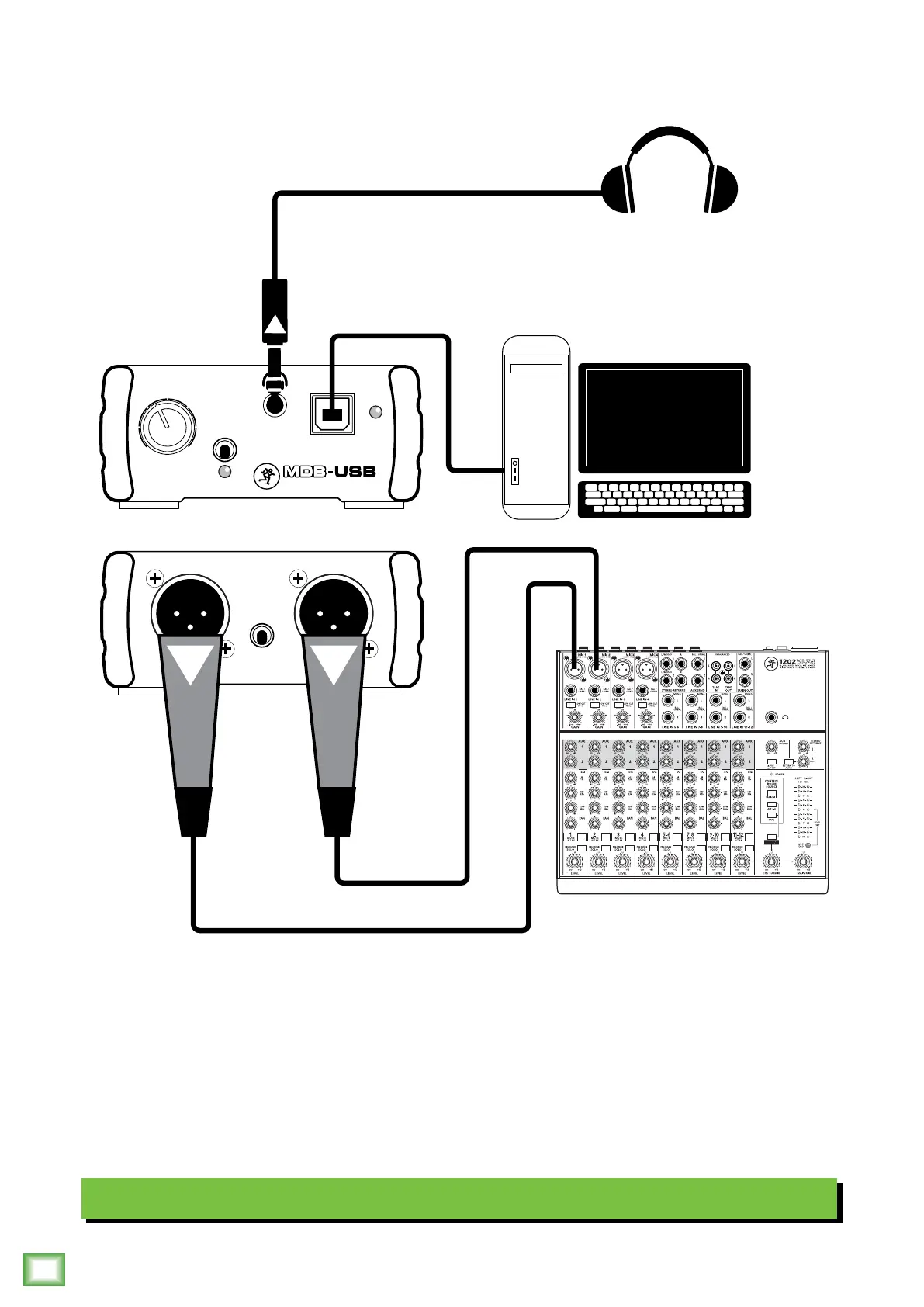

Hookup Diagram
As you can see in this hookup diagram, the MDB-USB is a convenient stereo direct box to add to the chain.
Let’s look at the front panel connections first. Start by simply connecting a USB cable from the computer’s
USB slot to the MDB-USB input jack. And end by simply connecting a pair of headphones to the phones
1/8" output jack. Front panel connections made!
The rear panel connections are as straighforward as the front panel connections. Here we connected
the XLR L/R line output jacks of the MDB-USB to the inputs of a Mackie 1202VLZ4 mixer. The outputs
of the mixer are then connected to the inputs of the house PA loudspeaker system.
That was our part. The next part is up to you... crank up and get the floor shakin’!
Typical MDB-USB Setup
LEFT OUTPUT RIGHT OUTPUT
GROUND
LIFT
POWER
USB INPUT
PHONES
MONO
ON/OFF
LEVEL
STEREO DIRECT BOX
PC / MAC

Mackie MDB-USB Specifications

General

Best uses	Bass guitar, Digital piano, Guitar, Synthesizer
Product color	Black
Quantity	1
Frequency range	20 - 20000 Hz
Output impedance	600 Ω
Total Harmonic Distortion (THD)	0.01 %
XLR out	2
Power source type	DC

Weight and Dimensions

Depth	147 mm
Width	86 mm
Height	38 mm
Weight	500 g
