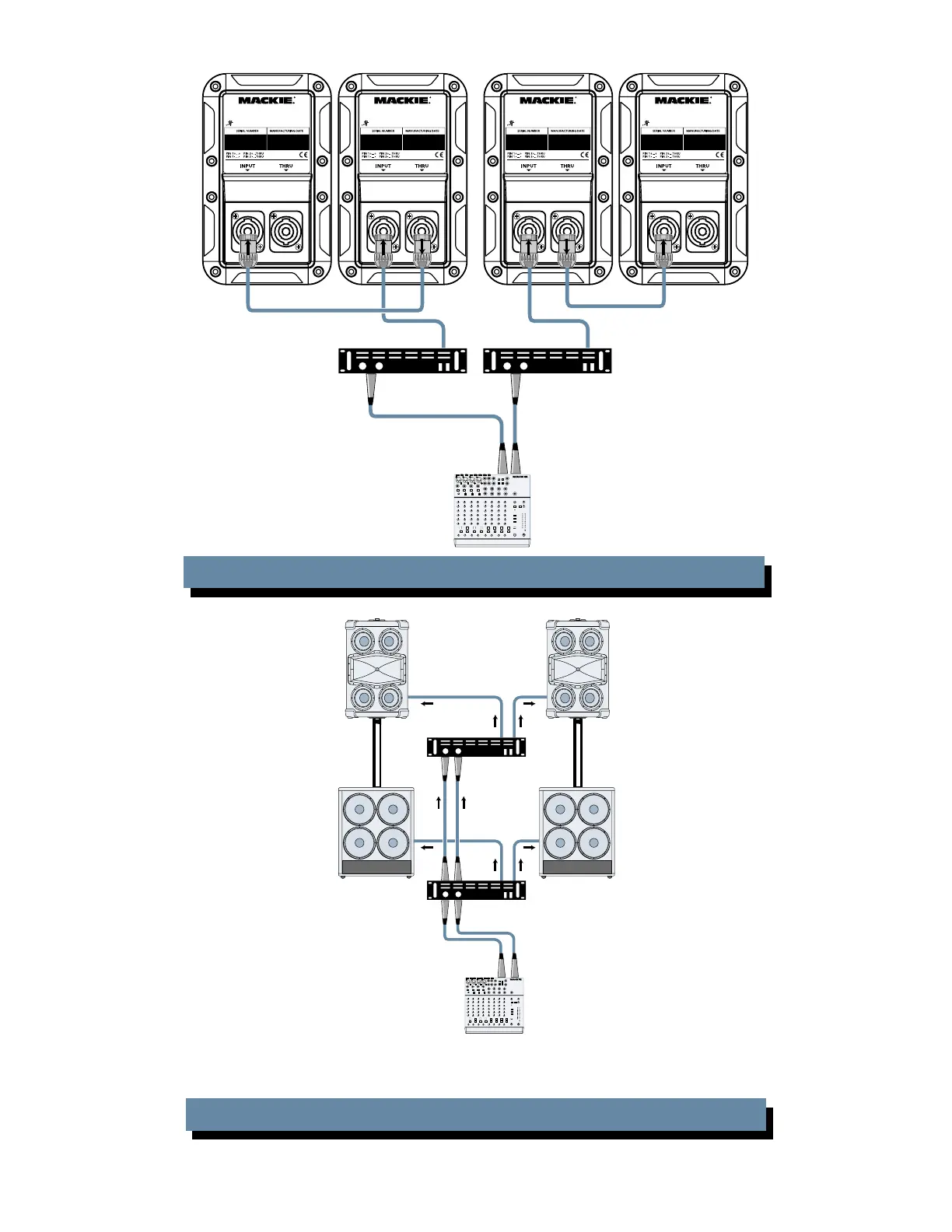

S408: WITH A MIXER AND TWO POWER AMPLIFIERS, USING THE SPEAKON THRU JACKS
S408 AND S410s SUBWOOFERS: WITH A MIXER AND TWO POWER AMPLIFIERS
The S408 loud-
speakers can be used
with the Mackie
S410s subwoofers to
create an incredibly
powerful system. The
full-range signals
can be routed to the
inputs of the S410s
subwoofers. The
built-in low-pass
fi lter in the S410s
plays only the lower
frequencies (below
180 Hz) through the
subwoofers.
S408
DESIGNED BY MACKOIDS IN WHITINSVILLE, MA & WOODINVILLE, WA,USA
"MACKIE" AND THE "RUNNING MAN" FIGURE
ARE REGISTERED TRADEMARKS OF LOUD TECHNOLOGIES INC. • COPYRIGHT ©2005
S408
DESIGNED BY MACKOIDS IN WHITINSVILLE, MA & WOODINVILLE, WA,USA
"MACKIE" AND THE "RUNNING MAN" FIGURE
ARE REGISTERED TRADEMARKS OF LOUD TECHNOLOGIES INC. • COPYRIGHT ©2005
S408
DESIGNED BY MACKOIDS IN WHITINSVILLE, MA & WOODINVILLE, WA,USA
"MACKIE" AND THE "RUNNING MAN" FIGURE
ARE REGISTERED TRADEMARKS OF LOUD TECHNOLOGIES INC. • COPYRIGHT ©2005
S408
DESIGNED BY MACKOIDS IN WHITINSVILLE, MA & WOODINVILLE, WA,USA
"MACKIE" AND THE "RUNNING MAN" FIGURE
ARE REGISTERED TRADEMARKS OF LOUD TECHNOLOGIES INC. • COPYRIGHT ©2005
S408 S408S408 S408
Mixer or
Preamplifier
Right
Line-level
Output
Left
Line-level
Output
Mono Bridged
Power Amplifier
1202-VLZ PRO
Mono Bridged
Power Amplifier
Po l e
Mount
Po l e
Mount
S410s S410
s
S408 S408
Mixer or
Preamplifier
Thru
Connections
Right
Line-level
Output
Left
Line-level
Output
Stereo
Power Amplifier
1202-VLZPRO
Stereo
Power Amplifier
