Mackie SRM1550 - Hookup Diagrams; Small Club System Example

Owner’s Manual
5
Owner’s Manual
Hookup Diagrams
Small Club System
SIG/OL
SIG/OL
CH 1
MIX
U
MAXOFF
LINE MIC
U
MAXOFF
LINE MIC
PA
DJ
MON
SOLO
1
ON
HOLD TO
CLEAR
2
3
4
LIMIT
ON
LED
OFF
R L
GAIN
GAIN
SPEAKER
MODE
FEEDBACK
DESTROYER
MAIN
SIG/OL
SIG/OL
CH 1
MIX
U
MAXOFF
LINE MIC
U
MAXOFF
LINE MIC
PA
DJ
MON
SOLO
1
ON
HOLD TO
CLEAR
2
3
4
LIMIT
ON
LED
OFF
R L
GAIN
GAIN
SPEAKER
MODE
FEEDBACK
DESTROYER
MAIN
SRM350v3
SRM350v3SRM1550

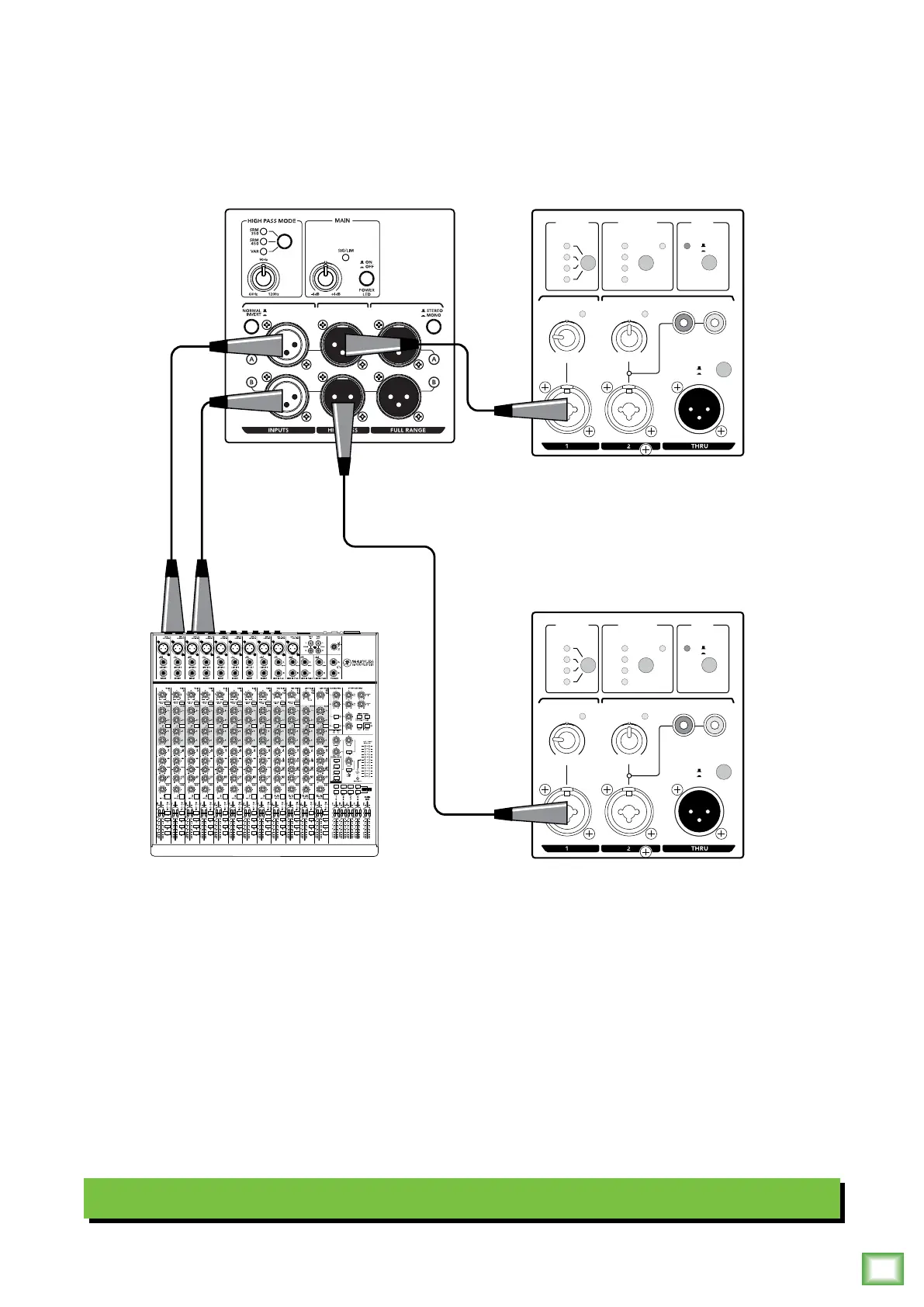

In this example, an SRM1550 subwoofer is connected to two SRM350v3 loudspeakers. It is a perfect
setup for a small club.
Here, the L/R outputs of a 1642VLZ4 mixer are connected directly to the channel A and B inputs of a
single SRM1550 subwoofer.
The channel A and B high pass outputs of the SRM1550 subwoofer are connected directly to the channel
1 inputs of each SRM350v3 loudspeaker. Set the subwoofer level to unity and be sure that the gain knob
on each loudspeaker is set to “line”. Select the SRM350 high pass mode on the SRM1550 for a matched
system.
