7
INSTALLATION
INSTALLATION PROCEDURES
First complete the electrical connections, and then check
them for correctness.

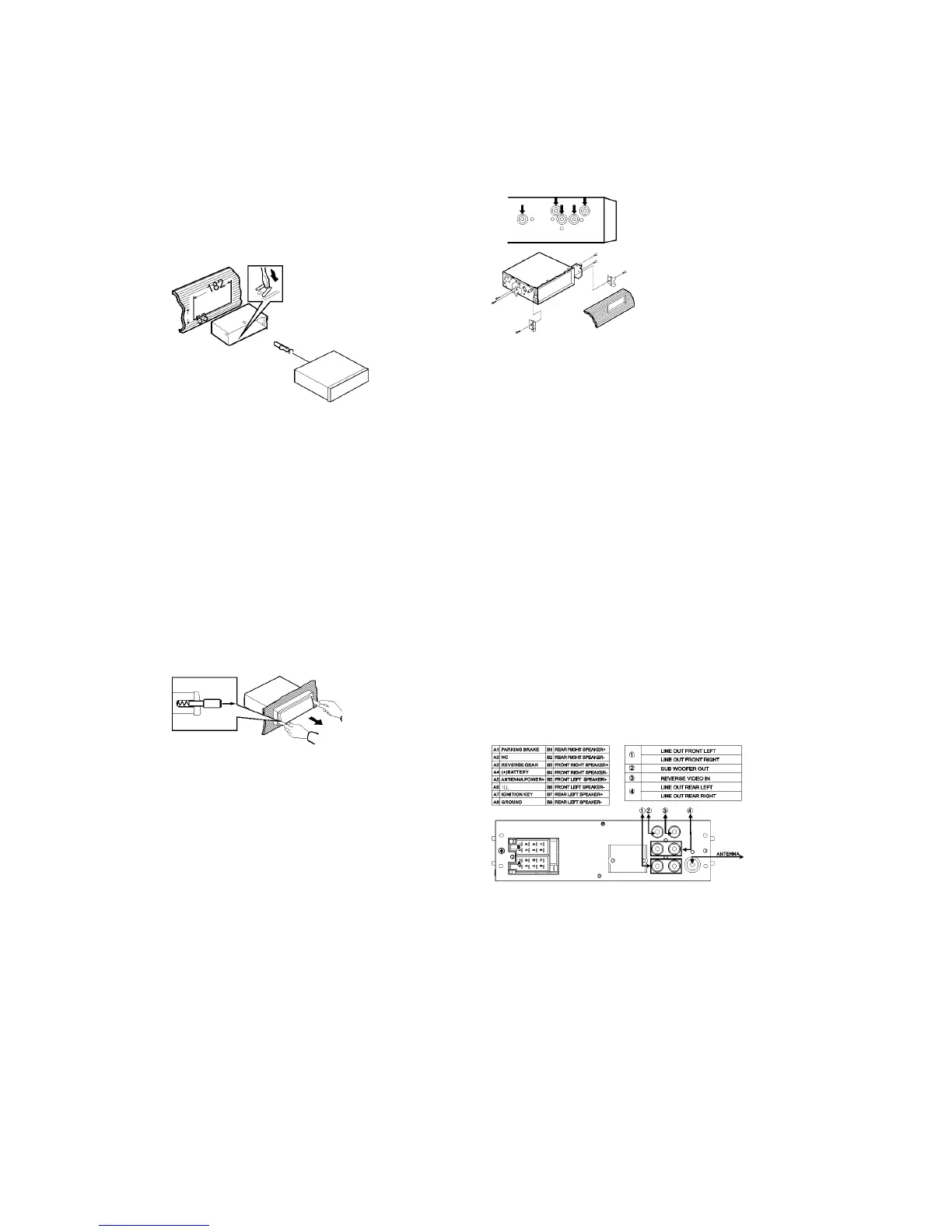

INSTALLATION OF THE UNIT
1. Metal Sleeve
Install the metal sleeve in the dashboard.
For optimal performance of the player, the metal sleeve
should be positioned horizontally (between 10 and +30).
Fix metal sleeve into place by pressing the metal tags
outwards using screwdriver.
2. Front Mounting
Slide the radio into the metal sleeve until the springs at either
side of the radio snap into the openings of the sleeve.
3. Removing Radio
Insert the levers supplied with the unit into the grooves at
both sides of the unit they lock.
Pull the levers toward you makes it possible to remove the
unit from the dashboard.
REAR-MOUNT
Installation using the screw holes on the sides of the unit.
Remove the outer rim around the front panel and the side
springs.
Select a position where the screw holes of the mounting
bracket and the screw holes of the radio become aligned and
tighten the screws at 2 places on each side.
REMOVE AND INSTALL THE FRONT PANEL
1. Press the release button and pull-off the front panel.
Keep front panel into the case.
2. To install the front panel, insert the panel into the housing,
slide in to the right hand side and push in till locked.
3. Make sure the panel is properly installed. Otherwise,
abnormalities occurs on the display or some keys will not
function properly.
CABLE CONNECTION
Note: A wrong connection can be easily detected by our
technical service for a repair request under the warranty.
Your warranty can be rejected in that case
To Next Page
