Macrom M-DVD6560 User Manual

- 4 -

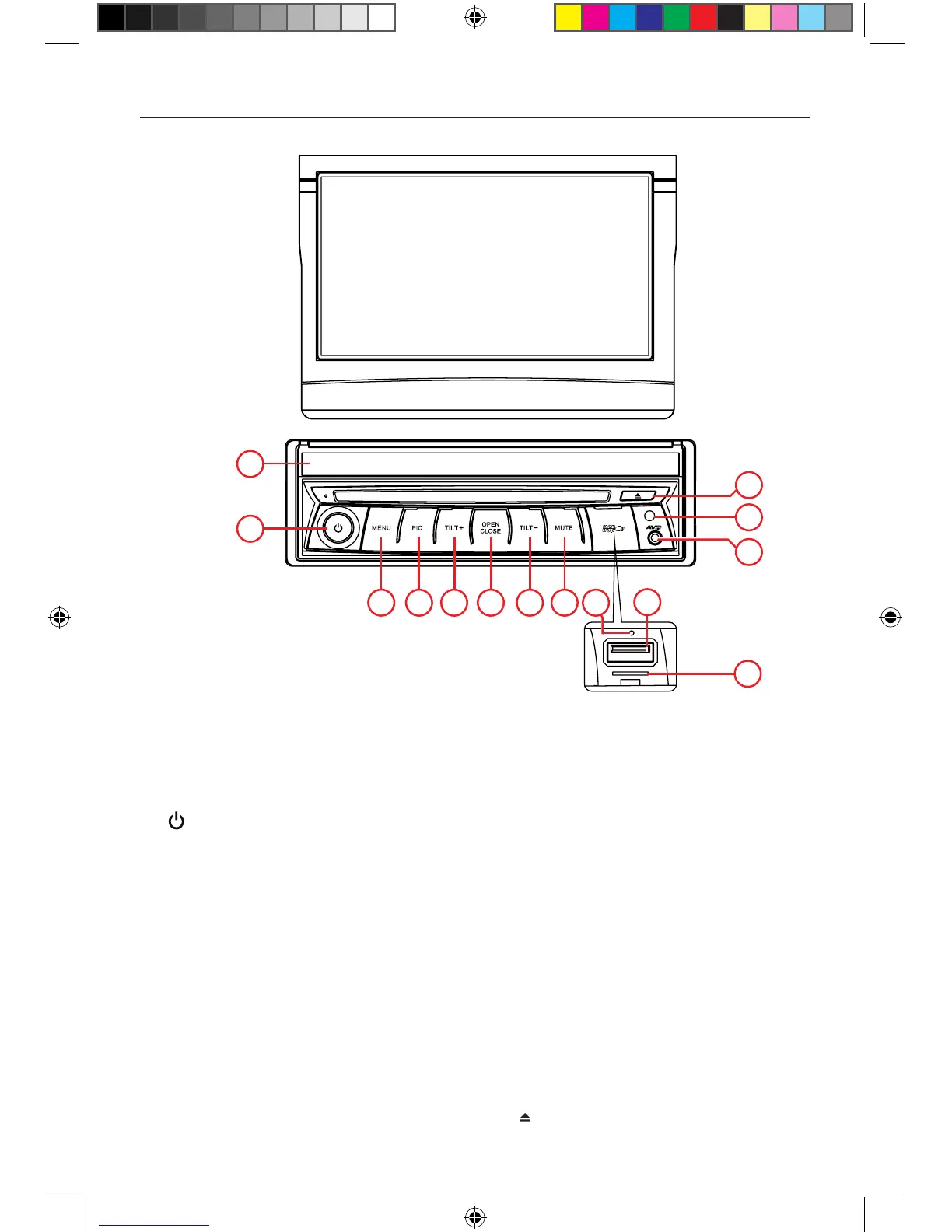

Front Panel
1. Disc slot.
2. [ ] Knob
Rotate to adjust the volume.
Press to turn the unit ON. Press and
hold to turn the unit OFF.
3. [MENU] Button
Press to switch between the available
audio/video sources applied to the unit.
4. [PIC] Key
Press [PIC] repeatedly to adjust screen
brightness.
Press and hold [PIC] to turn off the display.
5. [TILT+] Knob
Increase the display angle
6. [OPEN/CLOSE] Key
Open / Close the TFT monitor
7. [TILT-] Knob
Decrease the display angle
Product overview
Notice:
The graphic in this manual is for reference only, and may be different from the actual unit.
1
2
3
9
8. [MUTE] Key
Press briefly to activate the MUTE
function. Press again to resume
normal sound.
9. Reset
Load the original settings.
10. USB connector
Connect an USB device for playback of
music/video/picture files.
11. Map card slot
The MicroSD card slot is used for the
Navigation Map, not for music or other files.
12. AV IN
Accepts a 3.5mm jack through which
signals from various audio/video
devices can be applied to the unit.
13. Remote sensor
14. [ ] Key Eject disc
4 5 6 7 8
10
11
12
13
14
