Macurco CM-xx Operation Manual
REV – 1.2.1 [34-2900-0511-6 ] 13 | Page
7. The Current Loop is 4 mA in clean air and 4-20 mA for 0-200ppm CO.
NOTE: 22 to 12 AWG wire shall be used. Wire used shall meet the temperature range of the detector i.e. 0°F to 125° F (-18°C to
52°C).

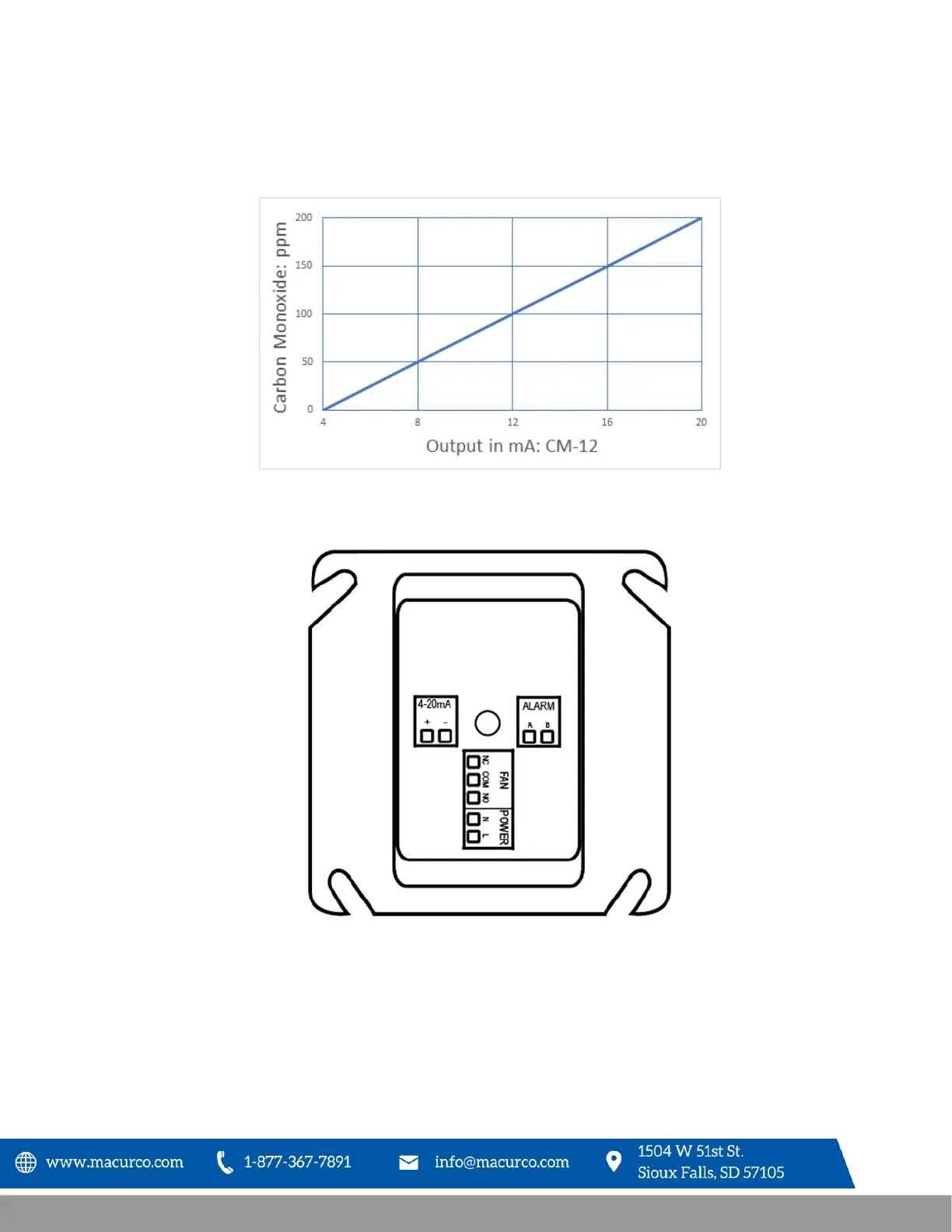

Figure 3-9 12-Series 4-20 mA Output Diagram
Figure 3-10 12-Series Rear View
