Madimack ECO - Page 15

15
4
th

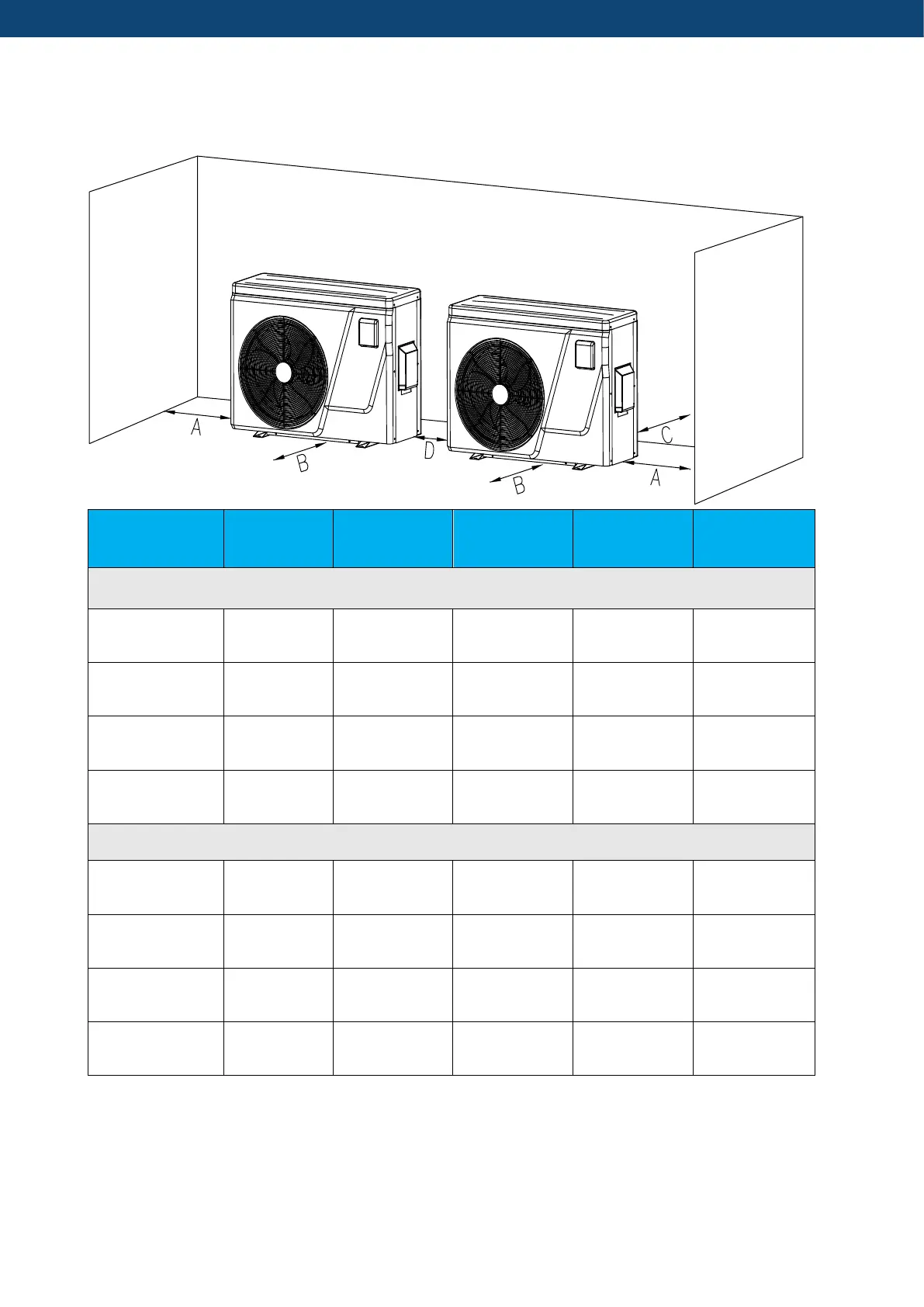

case: Multiple units – 3 obstacles
Model number
ECO90
ECO130
ECO160
ECO200
ECO240
Option A
Distance A
(mm)
300
300
300
300
300
Distance B
(mm)
500
500
500
500
500
Distance C
(mm)
300
300
300
300
300
Distance D
(mm)
600
600
600
600
600
Option B
Distance A
(mm)
450
450
450
450
450
Distance B
(mm)
700
700
700
700
700
Distance C
(mm)
150
150
150
150
150
Distance D
(mm)
700
700
700
700
700
Please note that these are absolute minimum distances and where possible should always have a greater
difference. Under no circumstances should any of the distances be reduced as performance will be
affected. More ventilation is better.
